The Lanzar Aquatic Waterproof Marine Stereo Radio Receiver System has the ability to stream your audio wirelessly. Built-in Bluetooth technology allows you to instantly play music via your smart devices -- quickly and easily! Connection is simple and it works with all of your favorite devices, like iPhone, Android, Smartphones, iPad, Tablet, etc. The digital circular design is universal and installs into your vehicle's instrument panel / dashboard compartment, fitting into the standard size rounded tachometer gauges. Upgrade your marine watercraft with versatile digital and wireless sound ability, all while maintaining marine grade waterproof performance. The system features additional 'plug and play' music streaming thanks to MP3 digital media file compatibility. Connect your USB flash drive to stream a playlist, use the RCA audio jacks to connect even more external devices or tune in to AM/FM Radio. Control it all with the front panel LCD display with touch button controls. The screen also features ID3 Digital Tag Readout Support that displays the song artist and title of your digital music files. The Lanzar Aquatic Bluetooth Marine Receivers let the music flow while you stay afloat!

DETAILS

Features:

• Circle / Round Design
• Marine Stereo Receiver Radio System
• Bluetooth Wireless Music Streaming
• Digital Media Audio File Playback
• USB Flash Drive Reader
• Marine Grade Waterproof Construction
• AM/FM Radio with Station Preset Memory
• RCA (L/R) Audio Input Connector Jacks
• Ability to Connect Additional Audio Devices
• RCA (L/R) Audio Output Connector Jacks
• Ability to Connect to External Speaker Systems
• RCA Video Input / Output Connector Jacks
• LCD Digital Display, Button Illumination
• ID3 Tag Song Information Readout
• Digital Audio Media File Support
• Front Panel Button Controls
• Audio Input Source Selectable
• Audio, Video and Image Digital File Support
• For Marine/Boat In-Console Dashboard Panels

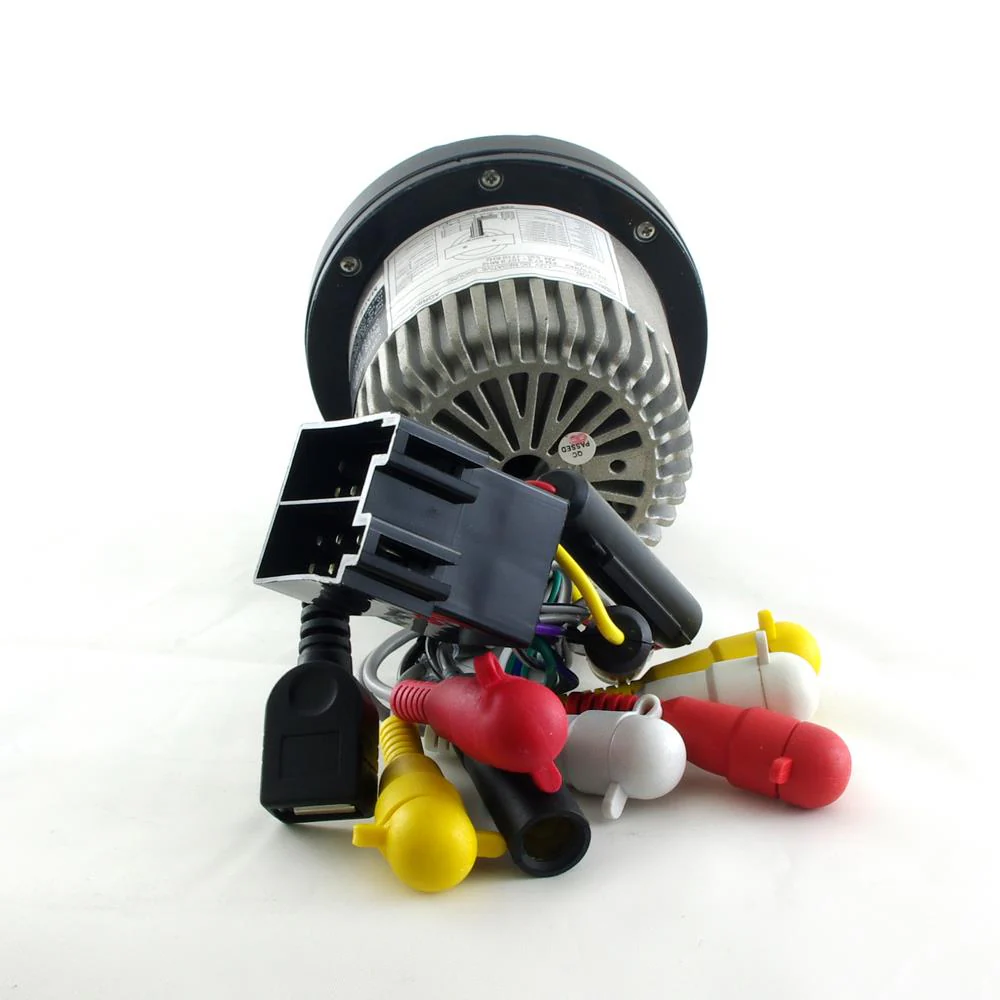

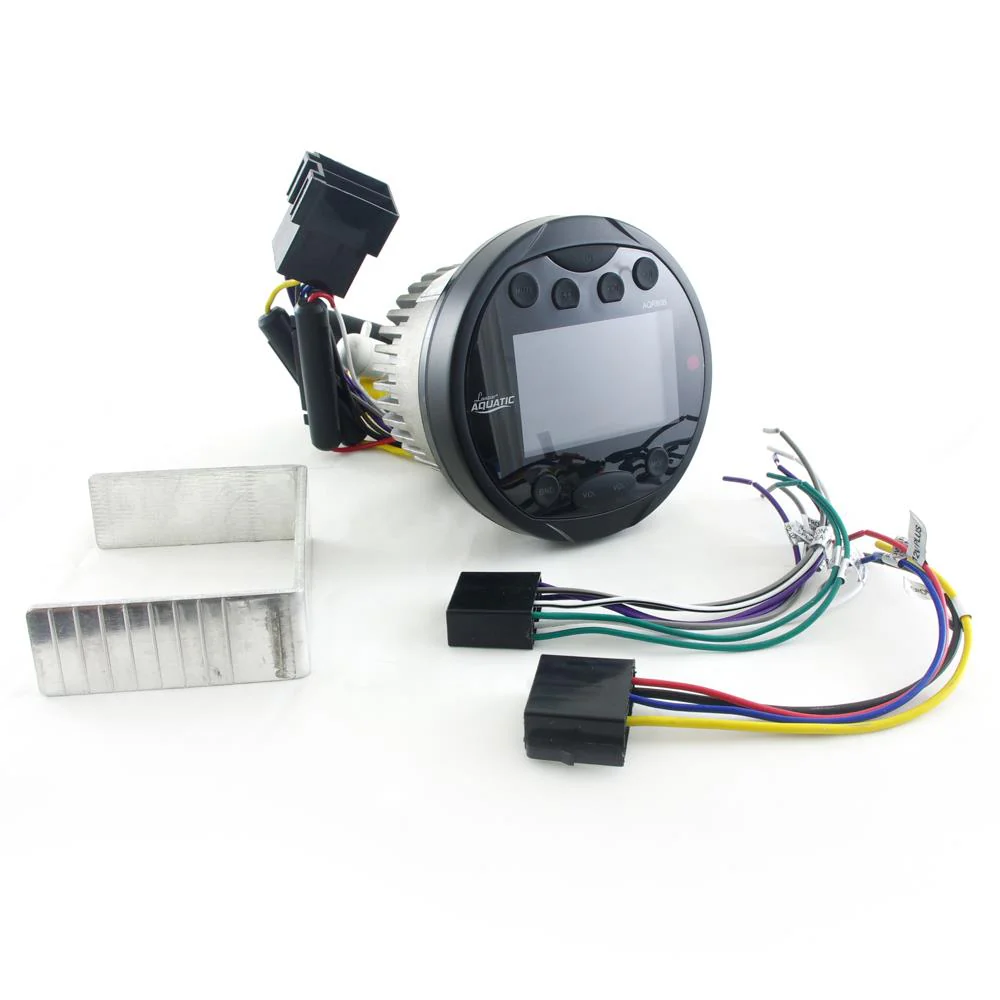

• Includes Remote Control, Mounting Bracket, Power/Wiring Harness

Bluetooth Streaming

• Built-in Bluetooth for Wireless Audio Ability
• Works with All of Your Favorite Devices
• (iPhone, Android, Smartphone, iPad, Tablet, etc.)
• Bluetooth Version: 2.1
• Bluetooth Wireless Range: 10' Feet

Technical Specs:

• Peak Power Output: 4 x 28 Watt
• RMS Power Output: 4 x 14 Watt
• Frequency Response: 20Hz-20kHz (+/-3dB)
• Marine Grade Rating: IPX5
• Impedance: 4 Ohm
• S/N Ratio: 55dB
• Stereo Separation: >30dB, @ 1kHz
• AM/FM-MPX PPL Tuning
• Radio Tuner Presets: 18FM, 12AM
• AM Frequency Range: 530-1710MHz
• FM Frequency Range: 87.5-107.9MHz
• Maximum USB Flash Support: 32GB
• Digital Media File Support: MP3, MP4, WMV, WAV, MOV & More

Dimensions:

• Receiver Diameter: 4.0''
• Cut-Out Diameter: 3.5''
• Mounting Depth: 2.5''

MANUALS & DOWNLOADS

AQR80B - Manuals
