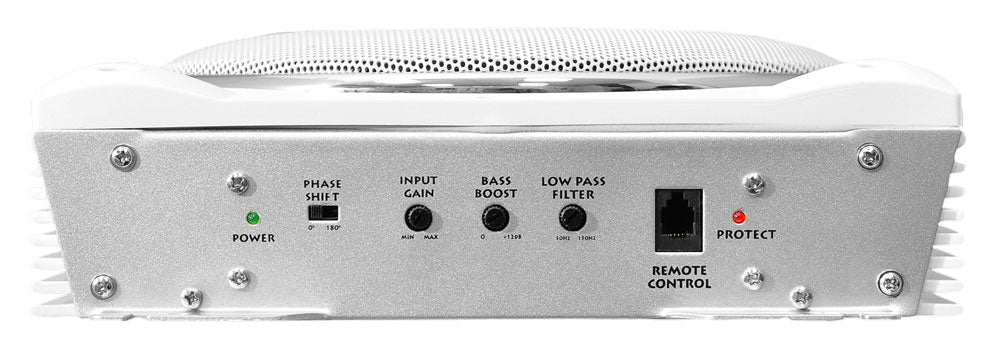

The AQTB8 is a slim marine woofer from Lanzar that's perfect for situations in which space is limited. Now you can equip your small boat or other marine vehicle with the same bone-crushing bass you're used to from Lanzar Car Audio subwoofers — 600 watts of it This subwoofer is equipped with low and high level inputs, remote bass boost level control, adjustable phase controls, and a low-pass filter — so you can tweak your bass to the exact way you want it. Thermal and overload protection keeps your equipment safe and secure. Red and green LED indicators show protection status and power.
DETAILS

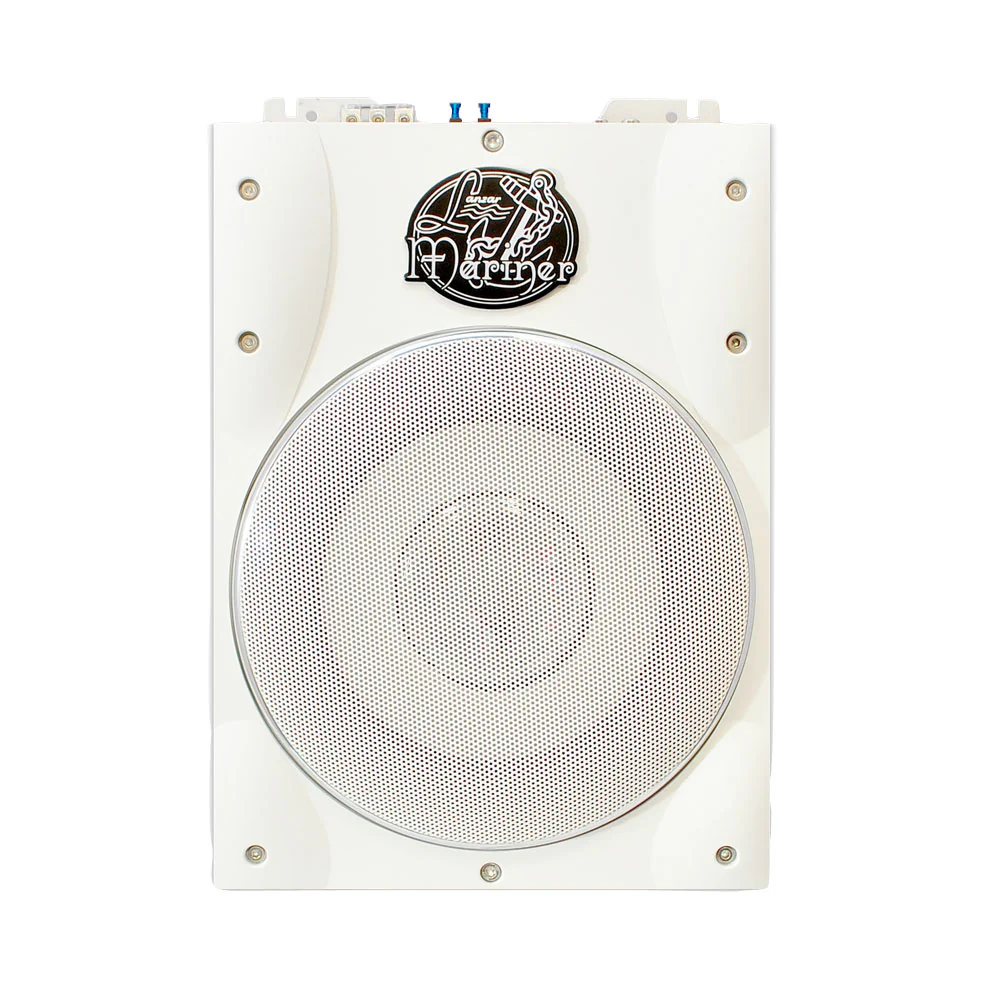

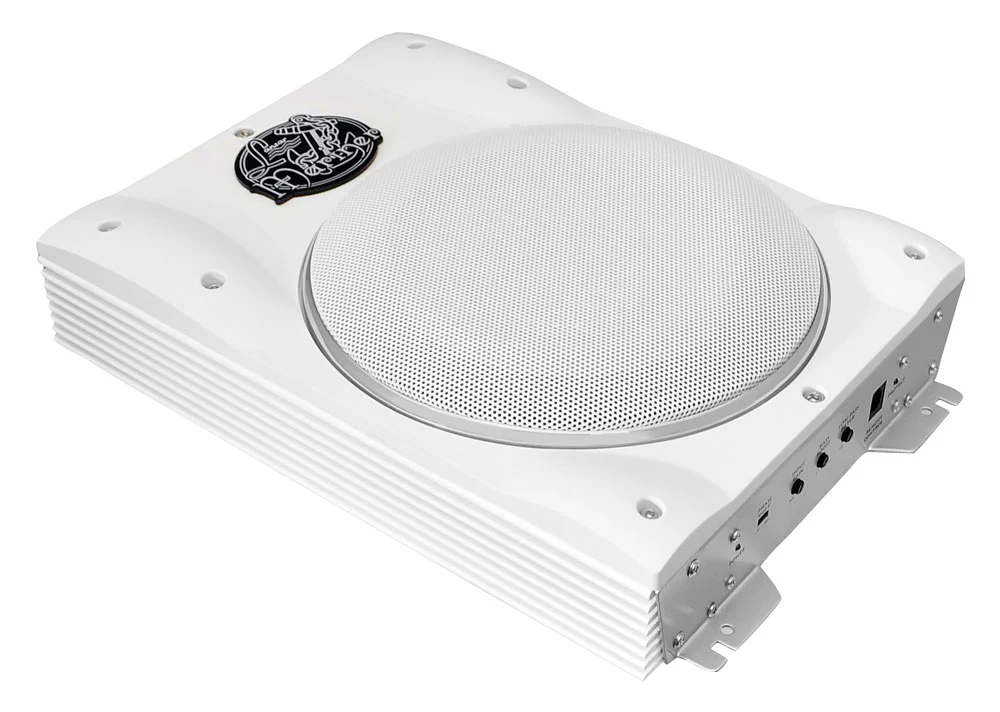

8'' Slim Marine Woofer

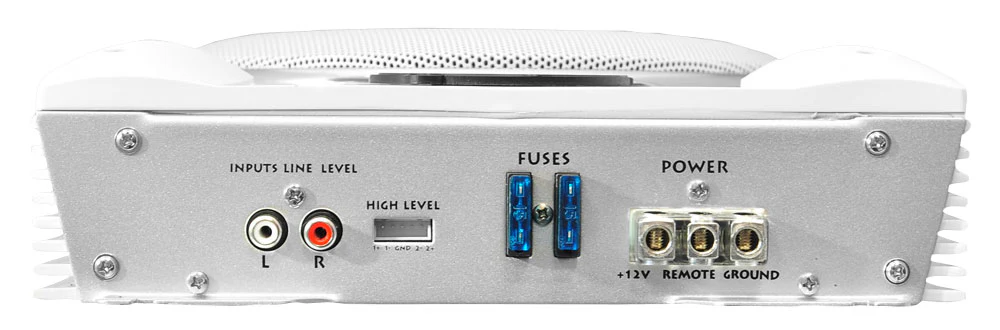

RCA Low Level Input
High Level Input
Green and Red LED Power Status Indicator

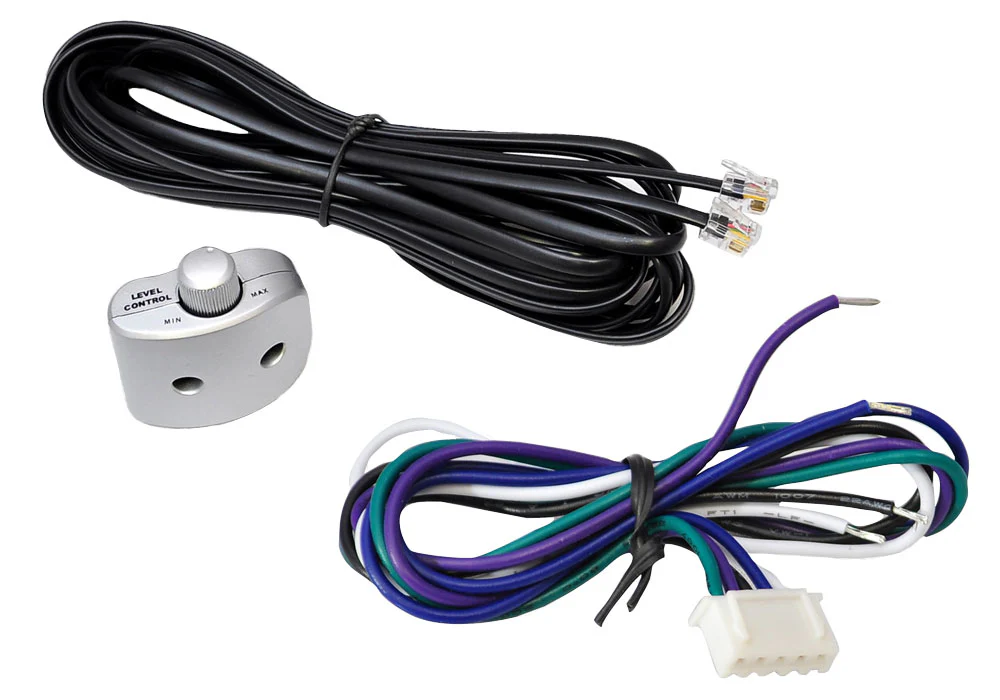

Remote Level Control
Phase Shift Switch : 0 or 180°
Adjustable Input Sensitivity : 0.2V-3V
0 to +12Db Variable Bass Boost (@ 45Hz)
Low Pass Filter (50-150 Hz)
Soft Delay Remote Turn-On
Thermal , Short and Overload Protection Circuits
Fuse : 2 x 15A
Max Power : 1000 Watts
RMS Power : 300 Watts
RMS Power of Amplifier : 100 Watts
Dimension : 14.5''(D) x 9.5''(W) x 3''(H)
Weight : 10.5 LBS MANUALS & DOWNLOADS
AQTB8.5 - Manuals
