DETAILS

Features:

• Class “AB” High-Current Dual Discrete Drive Stages
• Mosfet PWM Power Supply
• Electronic Crossover Network
• Low Pass Filter Controls
• High Pass Filter Controls
• Bass Boost Circuitry
• 4 Channel Bridgeable MOSFET Amplifier
• 2 Ohm Stable
• PWM (Pulse-Width-Modulation) System

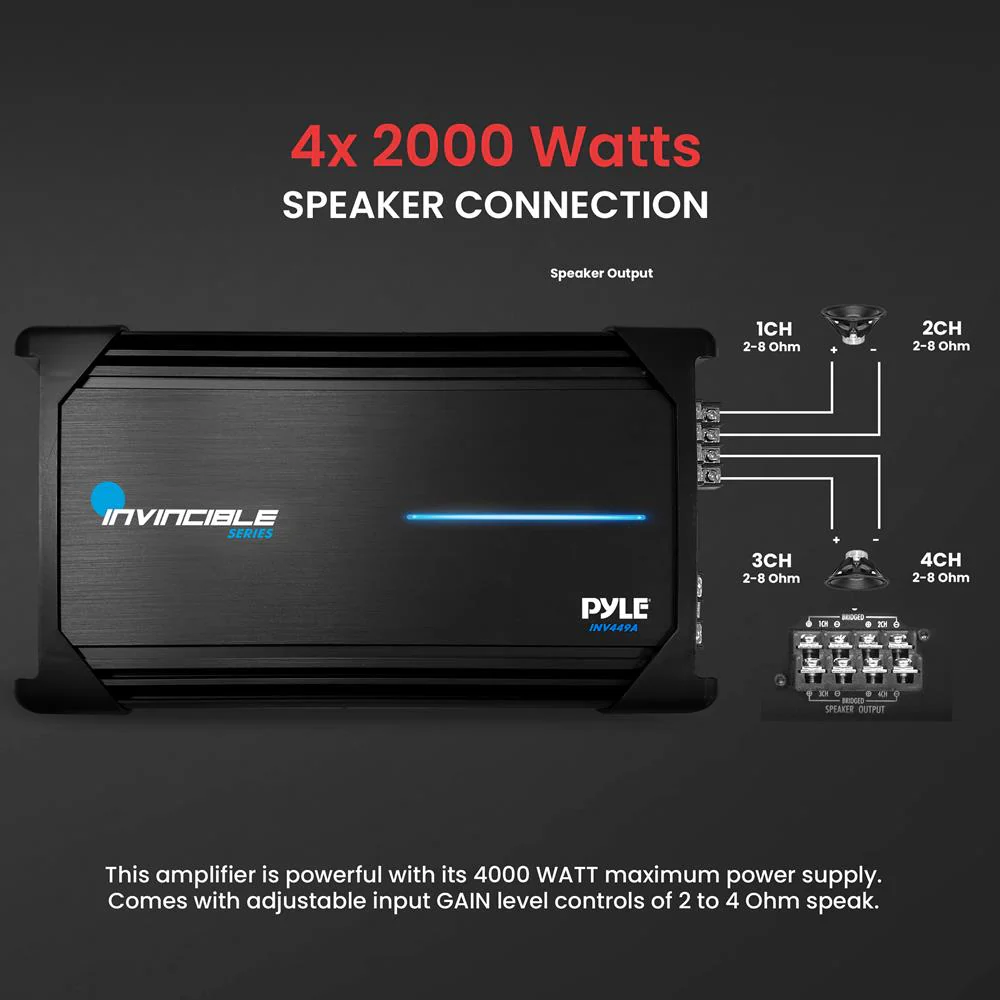

• Custom Terminal Block for Speaker Connection
• Thermal / Overload / Short Circuit Protection
• Soft Turn On/ Off
• Advanced Protection Circuitry

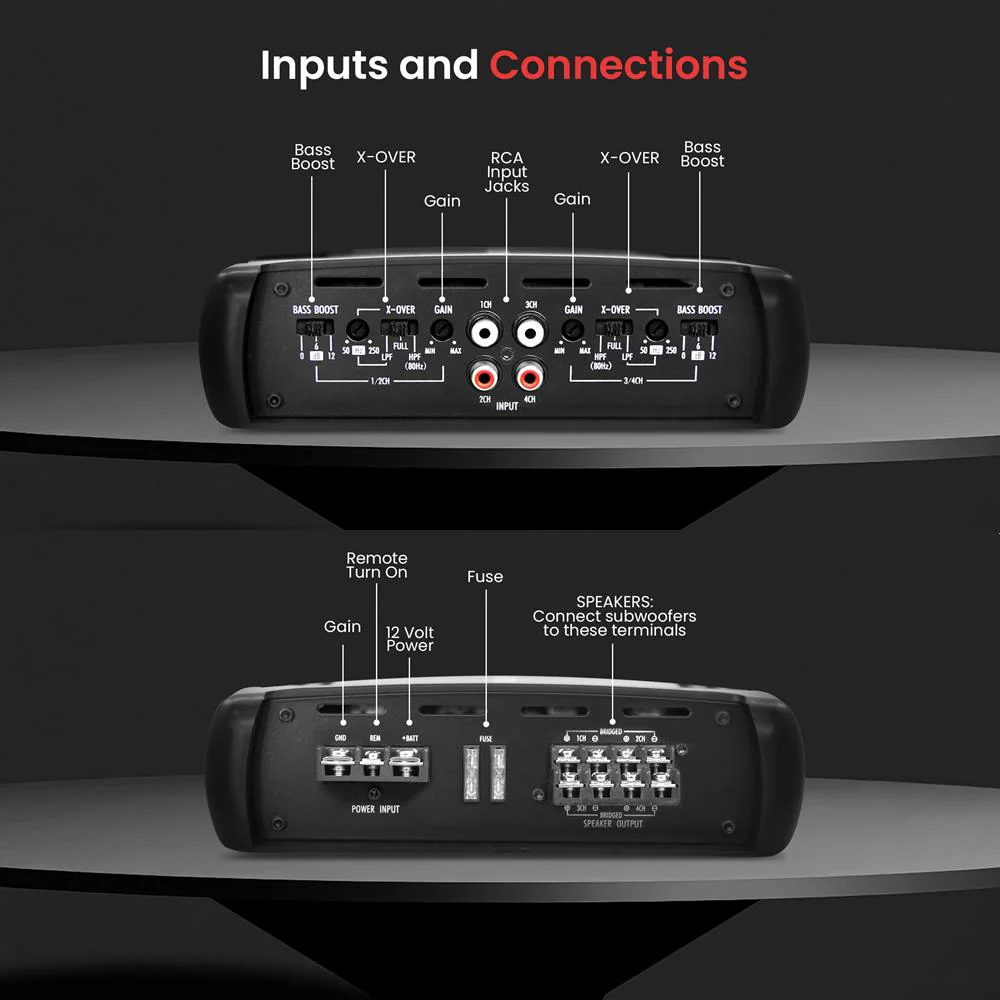

• Chrome RCA Inputs, Power Speaker Terminals
• Line Output (L/R) Channels
• 5 Way Protections
• Power + Protection LED Indicators

What's in the Box:

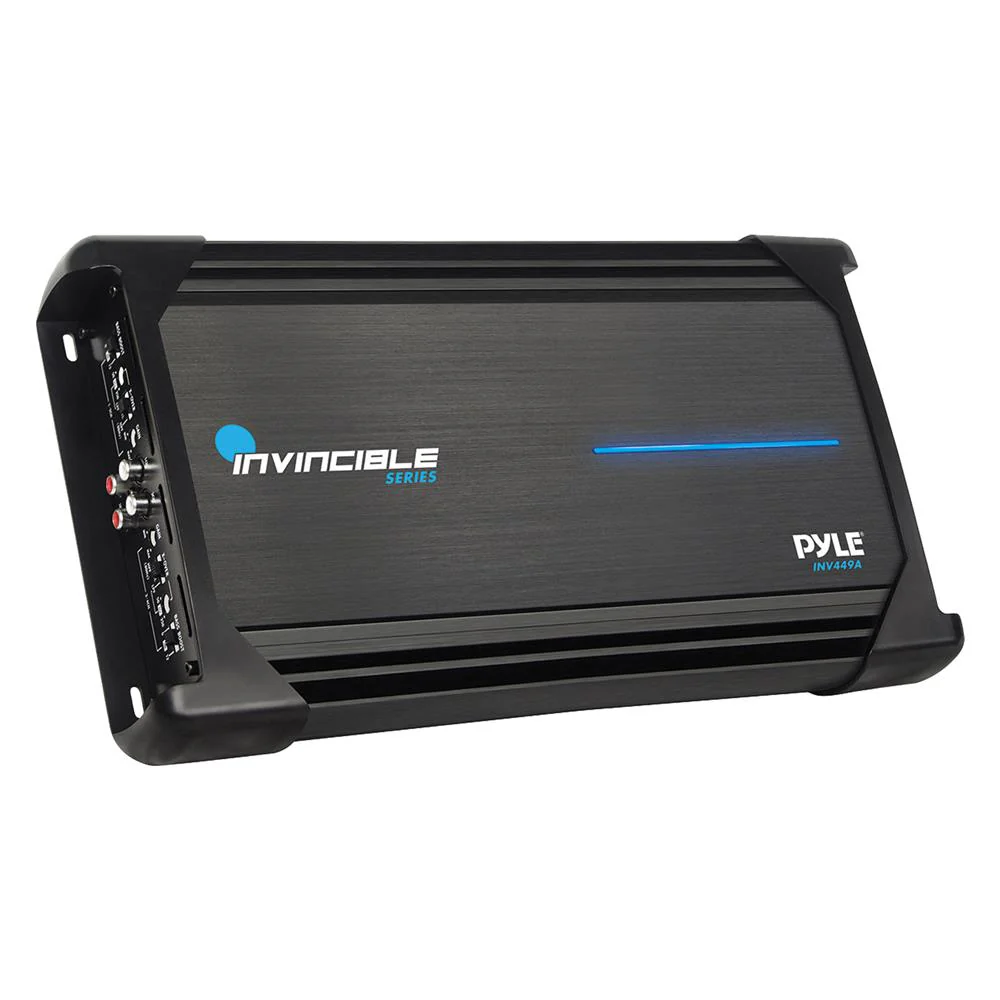

• Invincible Series Amplifier
• High to Low Converter
• (4) Tapping Screw 0.16 x 0.63’’ -inches
• (4) Spacer F4.0
• (2) Fuse-25A

Technical Specs:

• 4 x 250 Watt RMS @ 4 Ohm
• 4 x 350 Watt Peak @ 4 Ohm
• 4 x 350 Watt RMS @ 2 Ohm
• 4 x 500 Watt Max @ 2 Ohm
• Bridgeable Power @ 4 Ohms: 2 x 1000W
• Frequency Response 20 Hz-50kHz (±3dB)
• Output Power @ 14.4v DC, 50Hz
• Input Impedance: 20K Ohms
• S/N Ratio: >90dB
• T.H.D.: <0.01%
• LPF Freq. Resp.: 50Hz - 250Hz
• HPF Freq. Resp.: 80Hz
• Bass Boost(50Hz): 0,6,12dB
• Input Sensitivity:0.2V~6V
• Fuse: 25A x 2
• Product Dimensions (L x W x H): 14.33'' x 8.13'' x 2.28'' -inches
