DETAILS

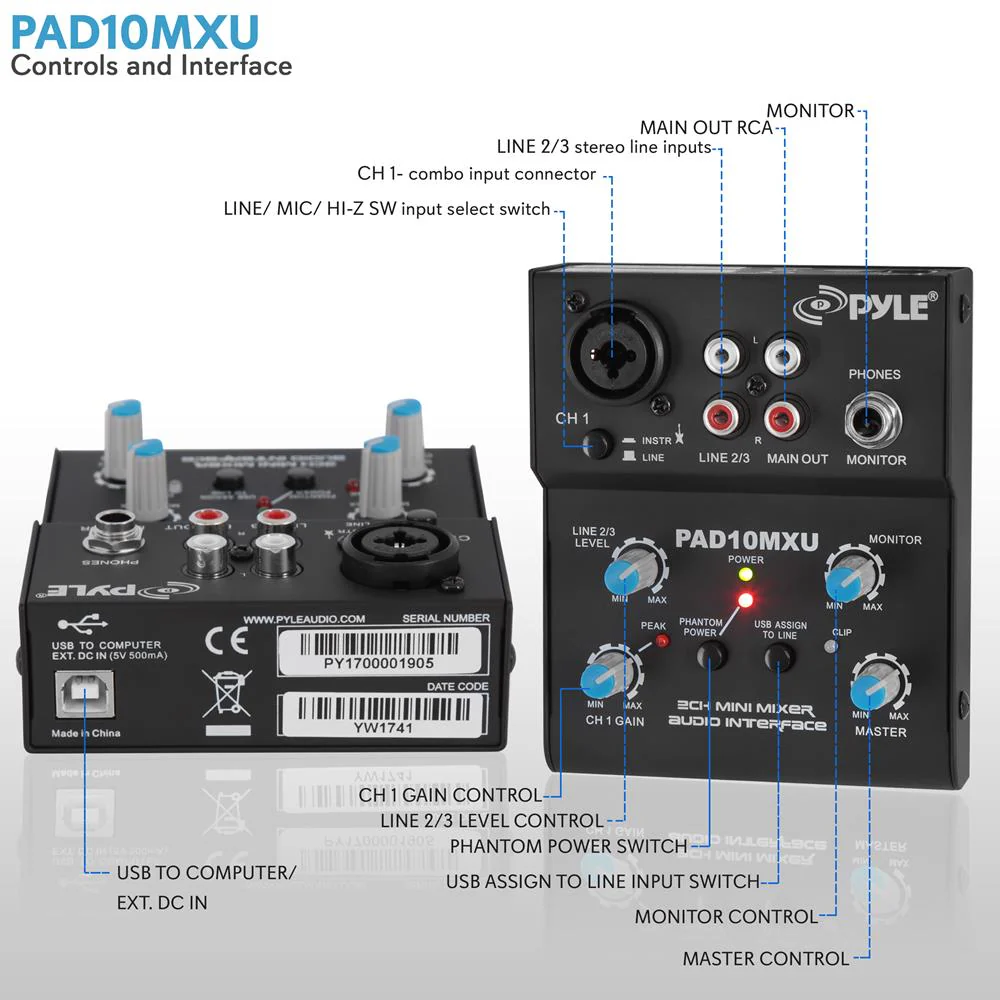

Features:

• Combo Input Connector Female/XLR, 1/4'' Phone Jack For MIC/Line Inputs
• Line 3/2 Stereo Line Inputs RCA Plugs,To Connect Cd, Mp3 Tape Deck, Players
• Main Out RCA Plugs To Connect The Mixer, Receiver Or Amplifier

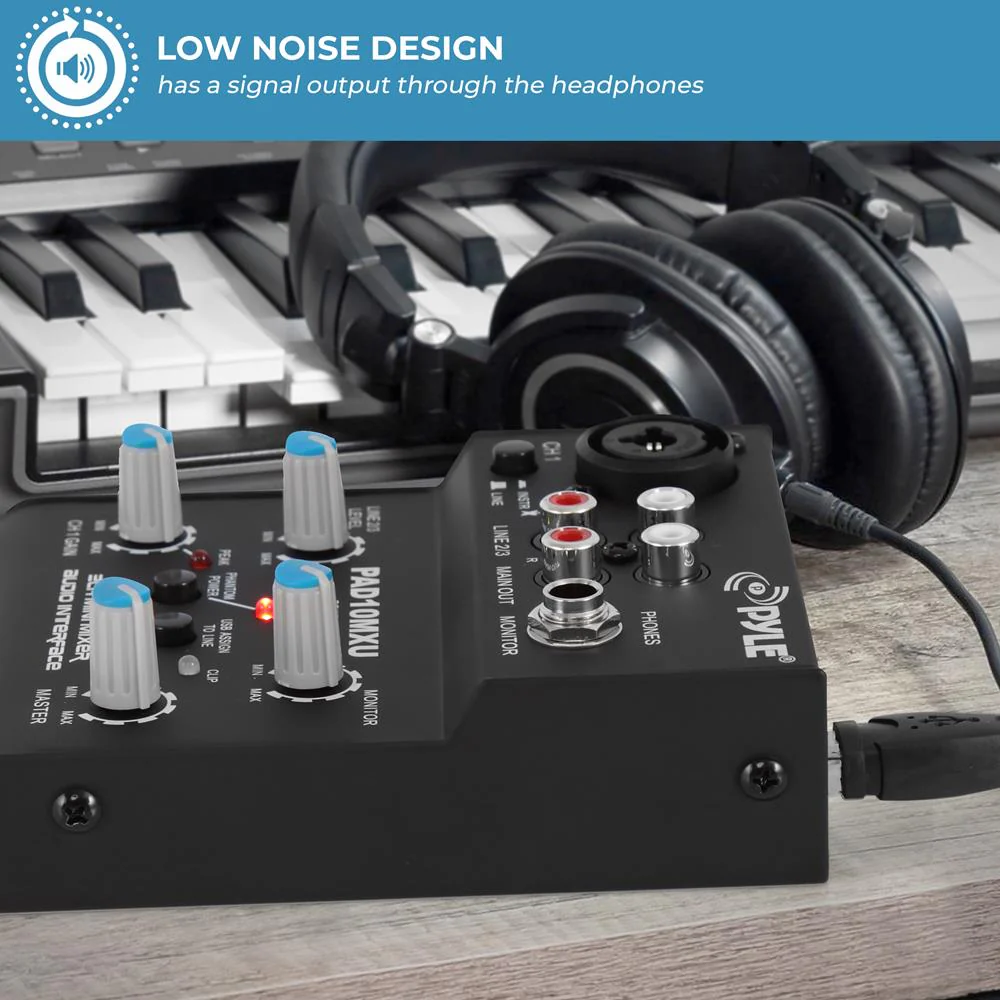

• Signal Output Thru The Headphones
• Line/INSTR SW Input Select Switch Set
• Line 2/3 Level This Control Adjusts The Volume Of Signal Input Of Line 2/3
• Peak Led It Lights Up Went The Input Signal Of Ch1 Is Too High
• Ch 1 Gain This Control Adjust The Volume Of Signal Input Of Ch1

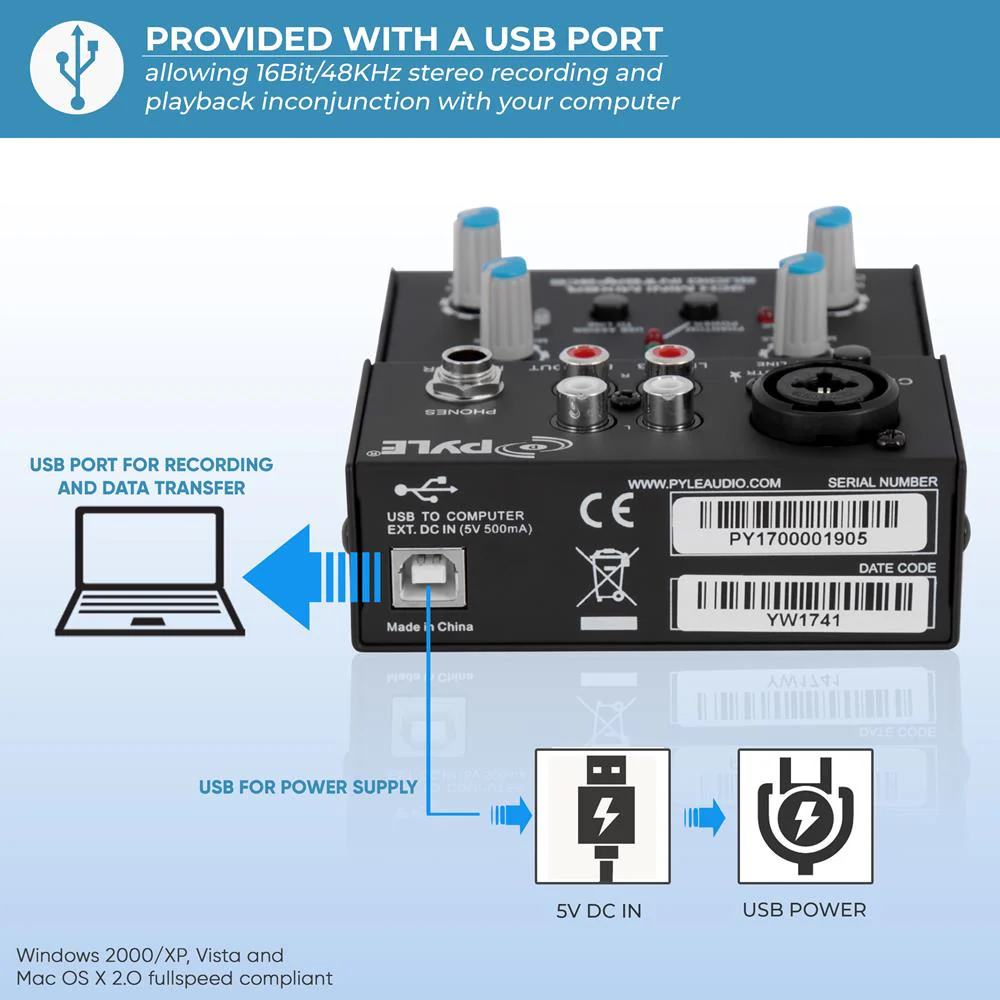

• USB Audio Interface
• Master Lets You Control Mixer’s Overall Volume Level

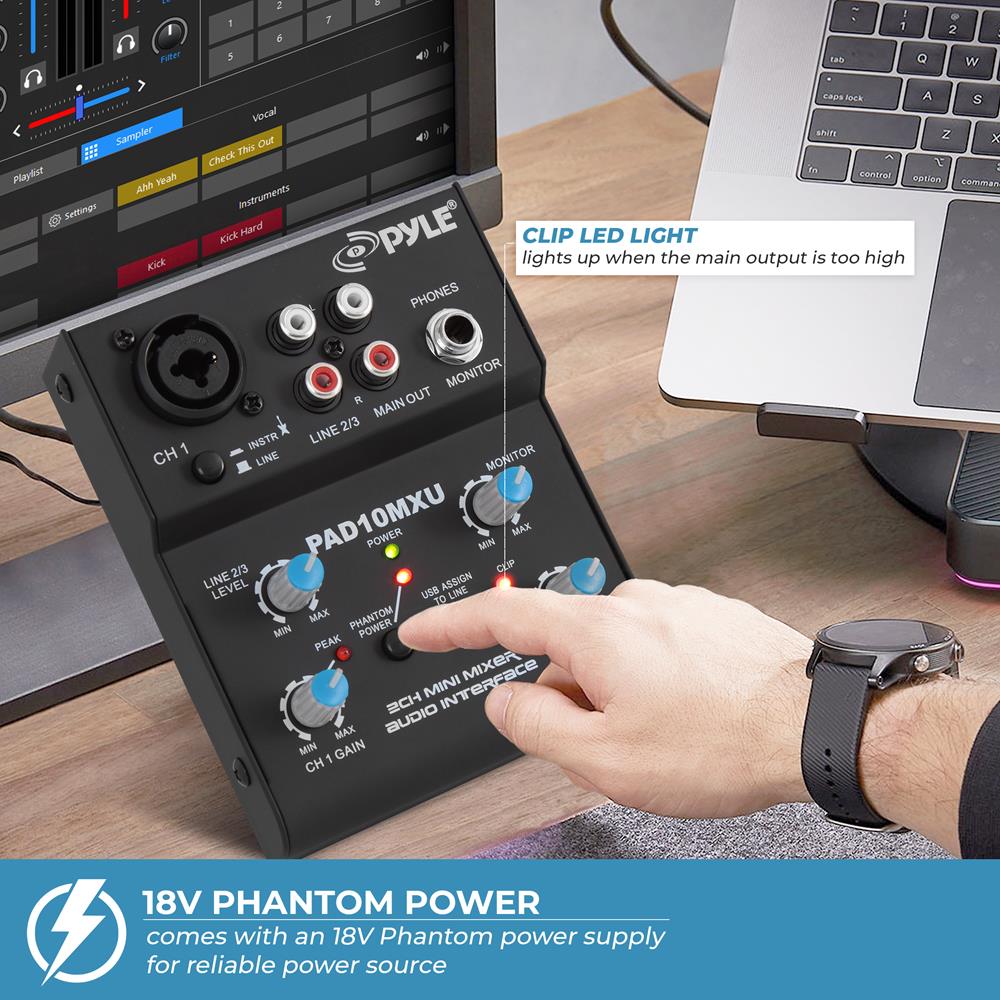

• Clip Led Lights Up Went The Main Output Signal Is Too High
• Monitor To Control Volume Output Of The Monitor Jack
• Power Led Indicates That The Unit Is In On Position

Technical Specs:

• Phantom Power: 18V
• Phantom Power Supply On The XLR Connector Of Ch1
• Dimensions: 4.7'' x 3.8'' x 1.3'' -inches

What's In The Box

MANUALS & DOWNLOADS

PAD10MXU - Manuals
