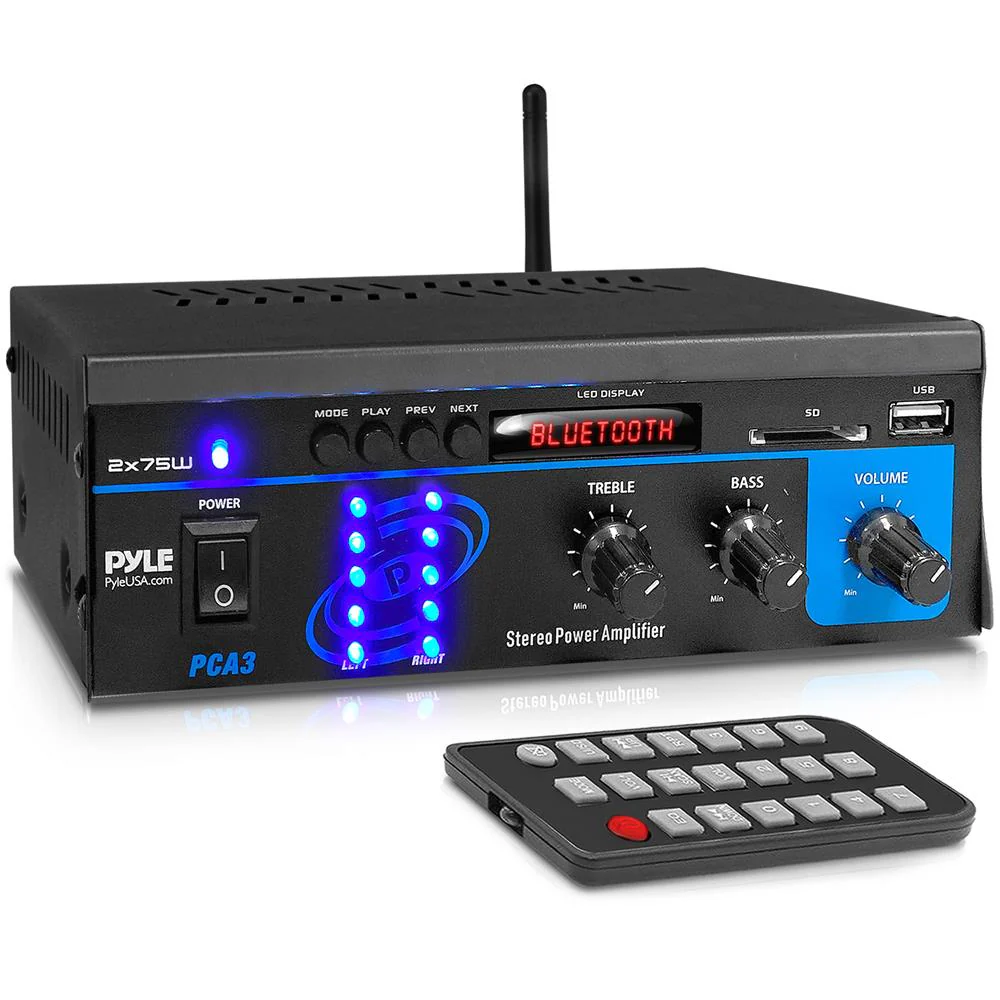

This mini stereo power amplifier provides up to 75 W of power on each channel at 4 ohms. Connect your inputs using the RCA jacks. Outputs over standard speaker push jacks. It's compatible with any audio or computer device - you can even hook up an iPod using a 3.5mm to RCA jack converter. Treble, bass, and volume controls on the front let you tweak your sound to exactly how you want it. Runs on 110 or 220 V.

DETAILS

Features:

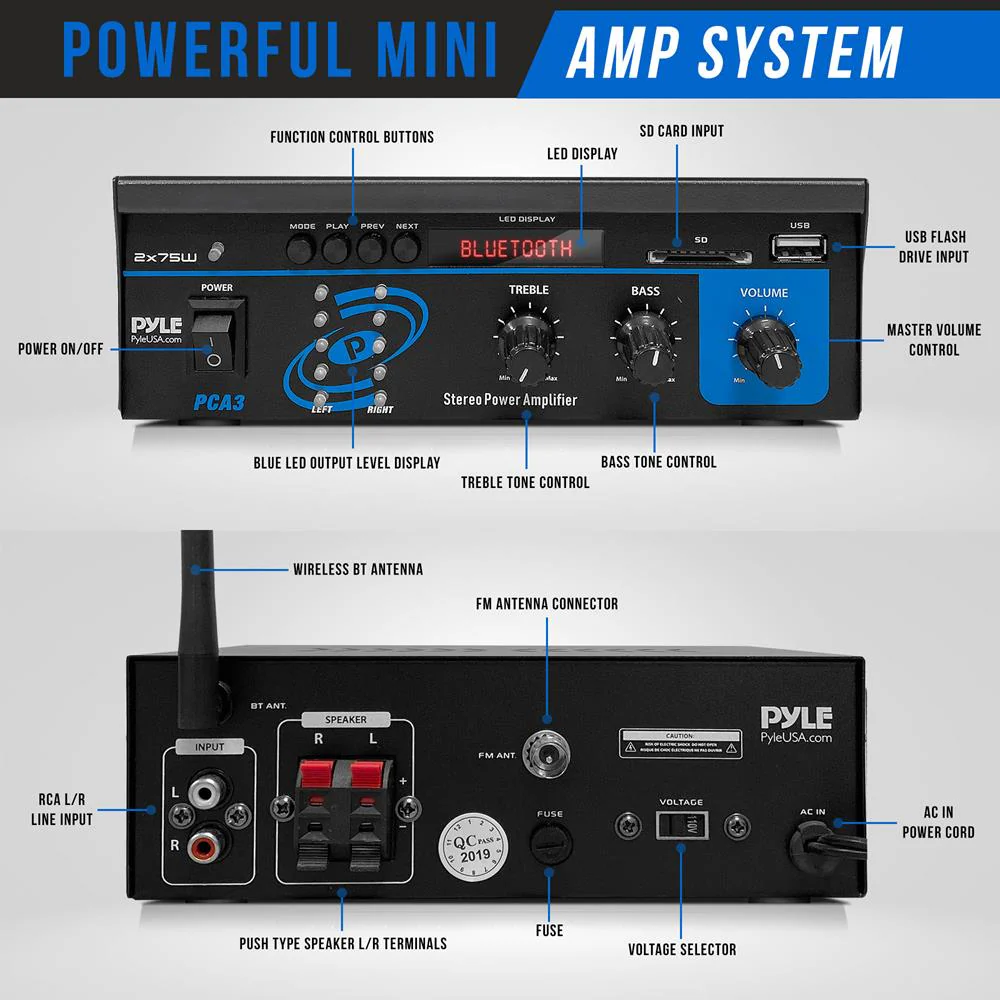

• Compact and Powerful Mini Amp System

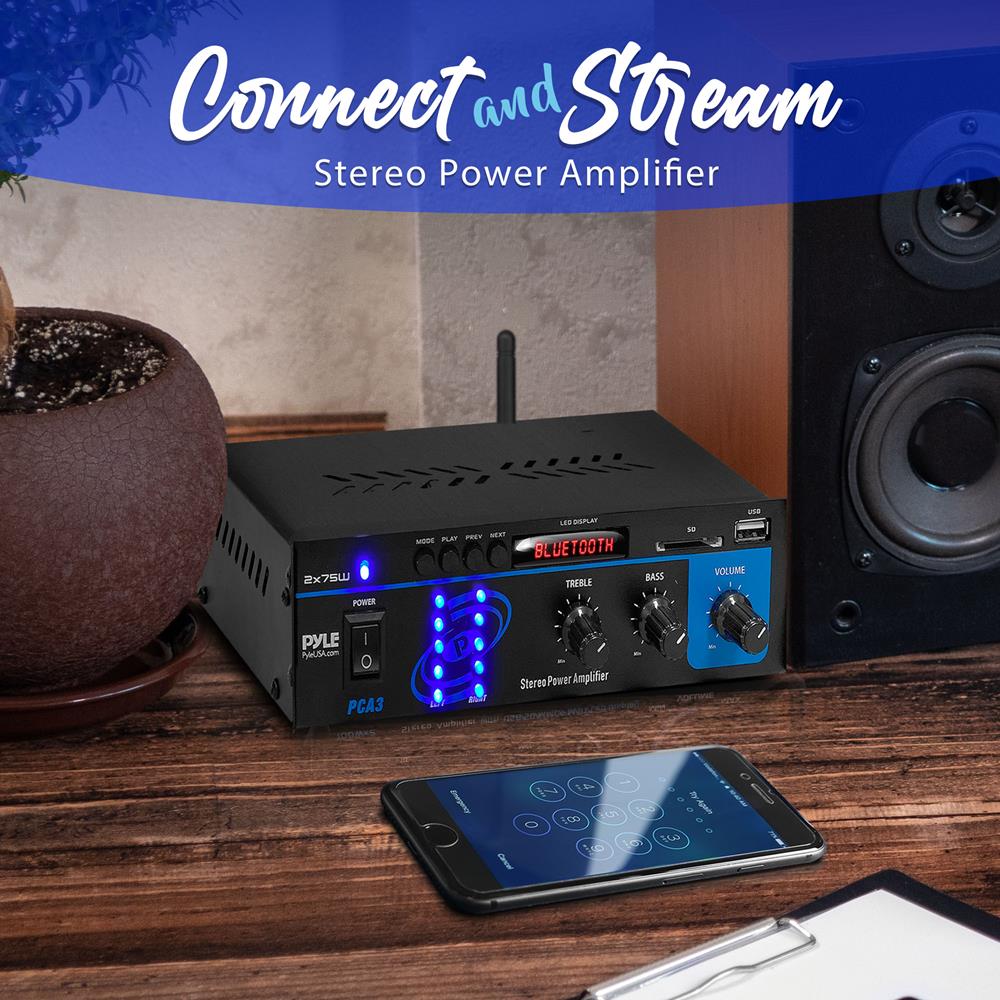

• Connect & Stream Audio from External Devices
• USB/SD/FM playing
• Wireless BT Streaming
• RCA Jack Input
• Push Type Speaker Outputs
• Blue LED Output Level Display
• Power On/Off Switch and LED Indicator
• Treble, Bass and Master Volume Controls
• Compatible With Audio/Computerize Devices (MP3 Players) Via 3.5mm To RCA Converter
• Includes FM Antenna to Improve FM Sensitivity

Bluetooth Connectivity:

• Simple & Hassle-Free Pairing Ability
• Works with All of Today’s Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Network Name: ‘PYLEUSA’
• Bluetooth Version: 5.0
• Wireless Range: 40’+ ft.

What’s In The Box:

• Stereo Amplifier System
• Remote Control
• FM Antenna

Technical Specs:

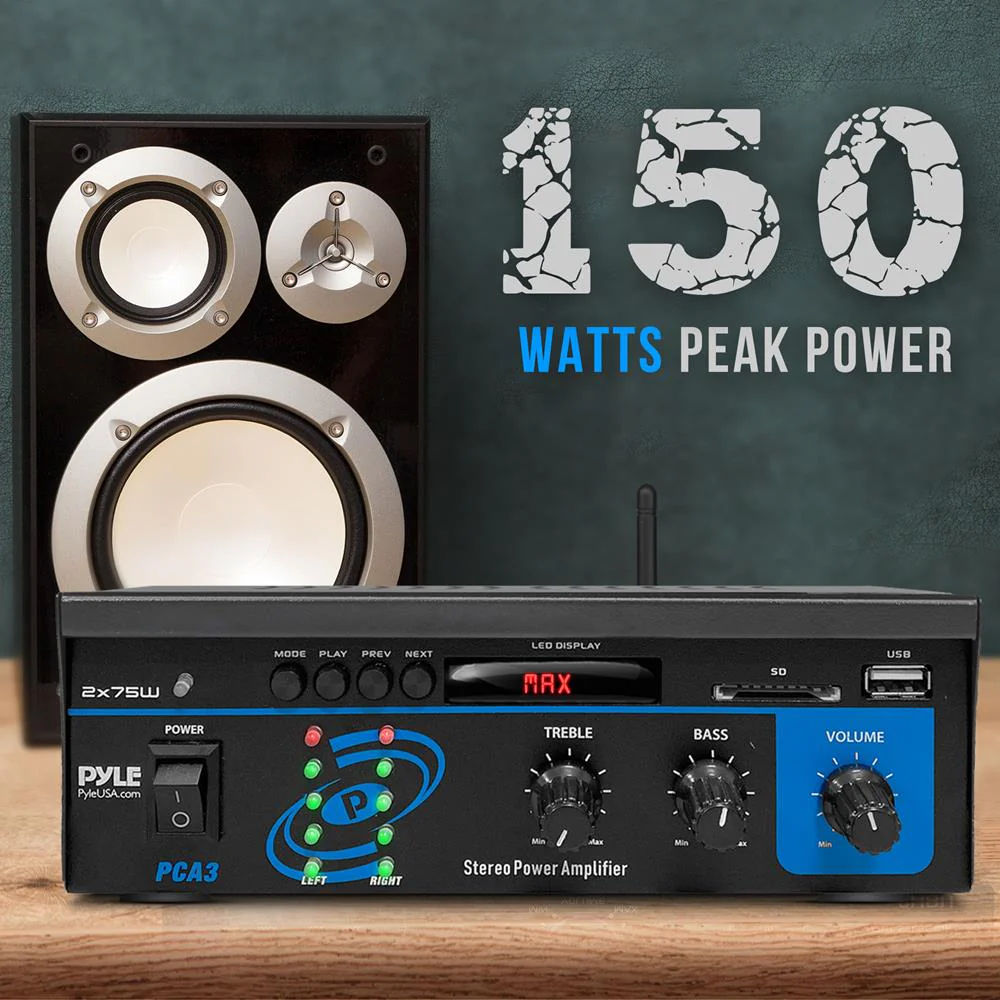

• Power Output: 2 x 75 Watt MAX Power
• Impedance: 15W, 10% RMS @ 8-Ohm
• Signal-to-Noise Ratio: 75dB
• Frequency Response: 20Hz - 20kHz
• Input Sensitivity: 350mV
• T.H.D.: 0.1%
• Signal-to-Noise Ratio: 75dB
• Tone Controls: Bass & Treble: +/-10dB (100Hz/10kHz)
• Fuse: 1.5 A, 250V Fast-Acting (5 x 20mm)
• Power Cable Length: 4.9’ ft.
• Power: 120/240V Voltage Selector, 50/60Hz
• Dimensions (W x H x D): 7.48'' x 2.87'' x 5.39'' -inches

What's In The Box

Stereo Amplifier System

Remote Control

FM Antenna

Specification

This mini stereo power amplifier provides up to 75 W of power on each channel at 4 ohms. Connect your inputs using the RCA jacks. Outputs over standard speaker push jacks. It’s compatible with any audio or computer device – you can even hook up an iPod using a 3.5mm to RCA jack converter. Treble, bass, and volume controls on the front let you tweak your sound to exactly how you want it. Runs on 110 or 220 V.

MANUALS & DOWNLOADS

PCA3 - Manuals
