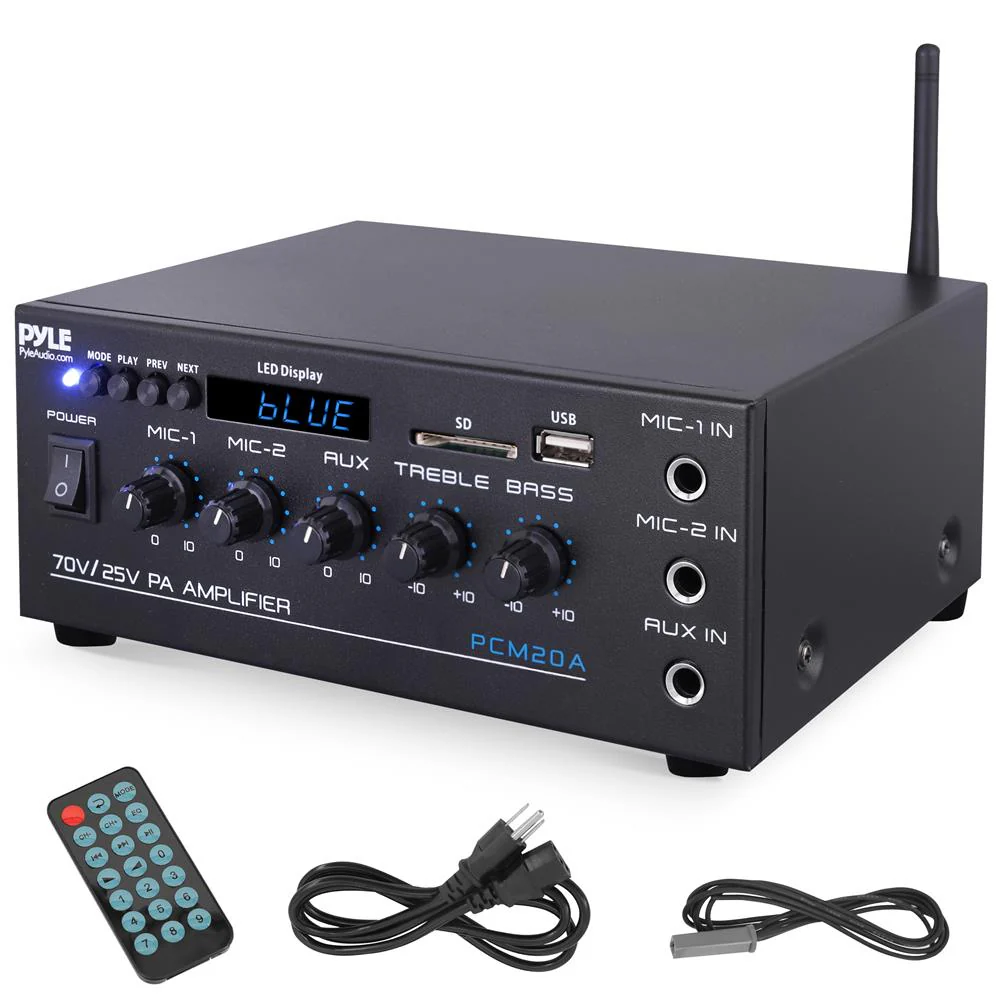

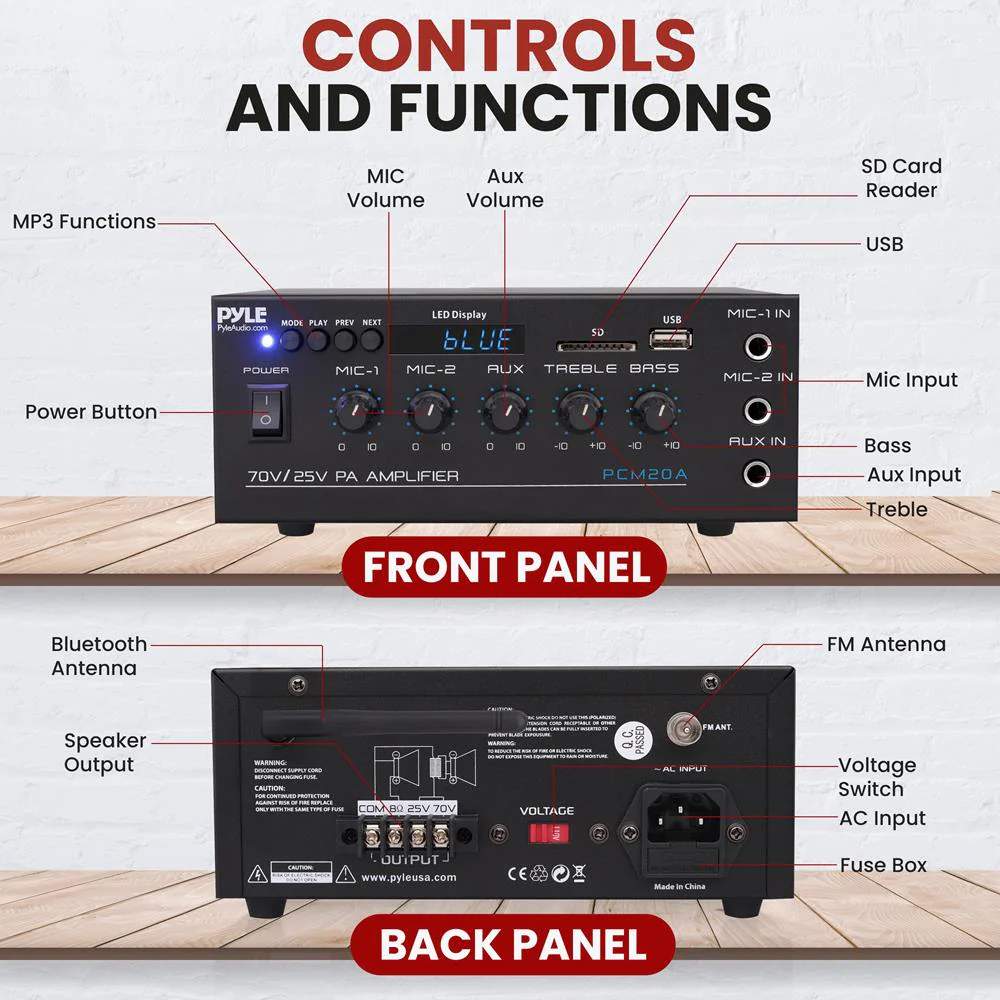

This 40 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. The three ¼' jack inputs are conveniently located on the front - two mic inputs and one auxillary input. Mic 1 has an auto-talkover, so you can easily cancel the other inputs. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.

DETAILS

Features:

• Compact Power Amplifier Design
• Automatic Mic-Talkover Priority Function (Mic 1)

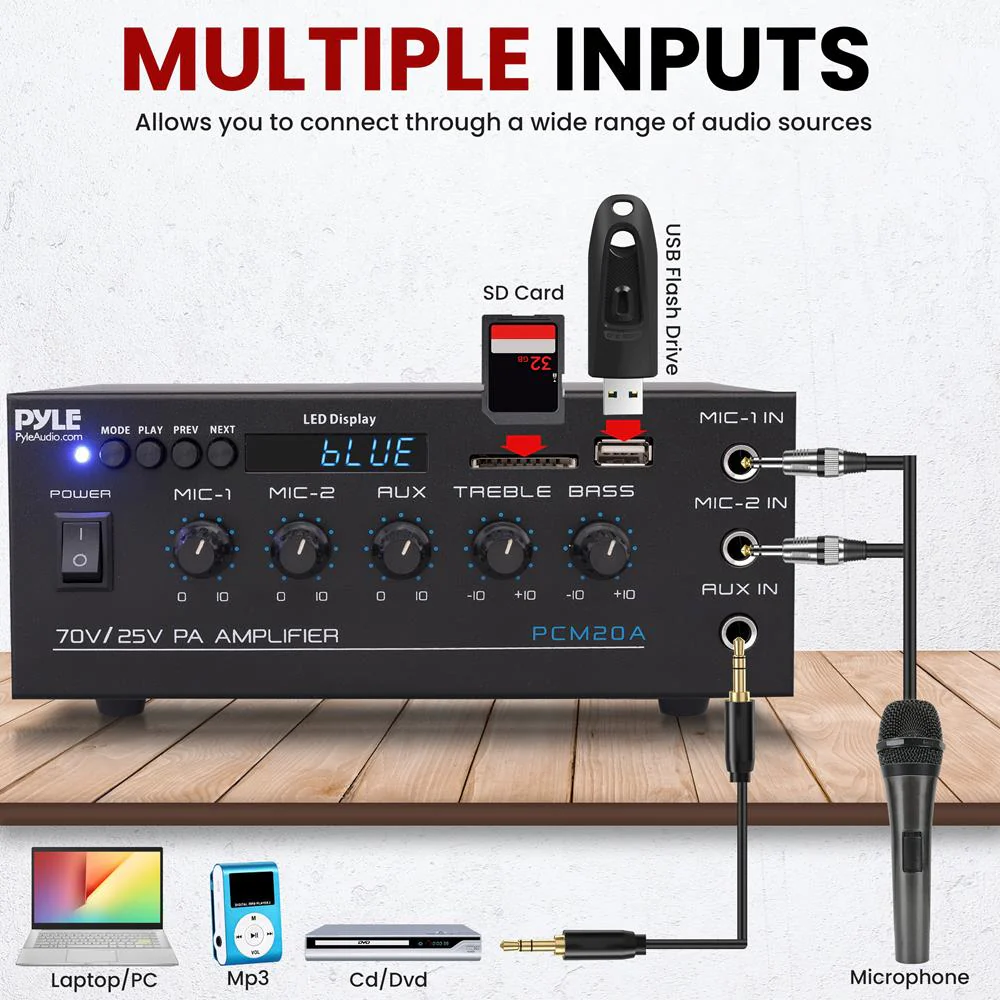

• (2) 1/4'' Microphone Inputs
• Aux (1/4'') Input Connector Jack
• Ability to Connect External Devices
• Speaker Terminal Outputs: COM/8-Ohm/25V/70V
• Independent Microphone/Aux Volume Controls

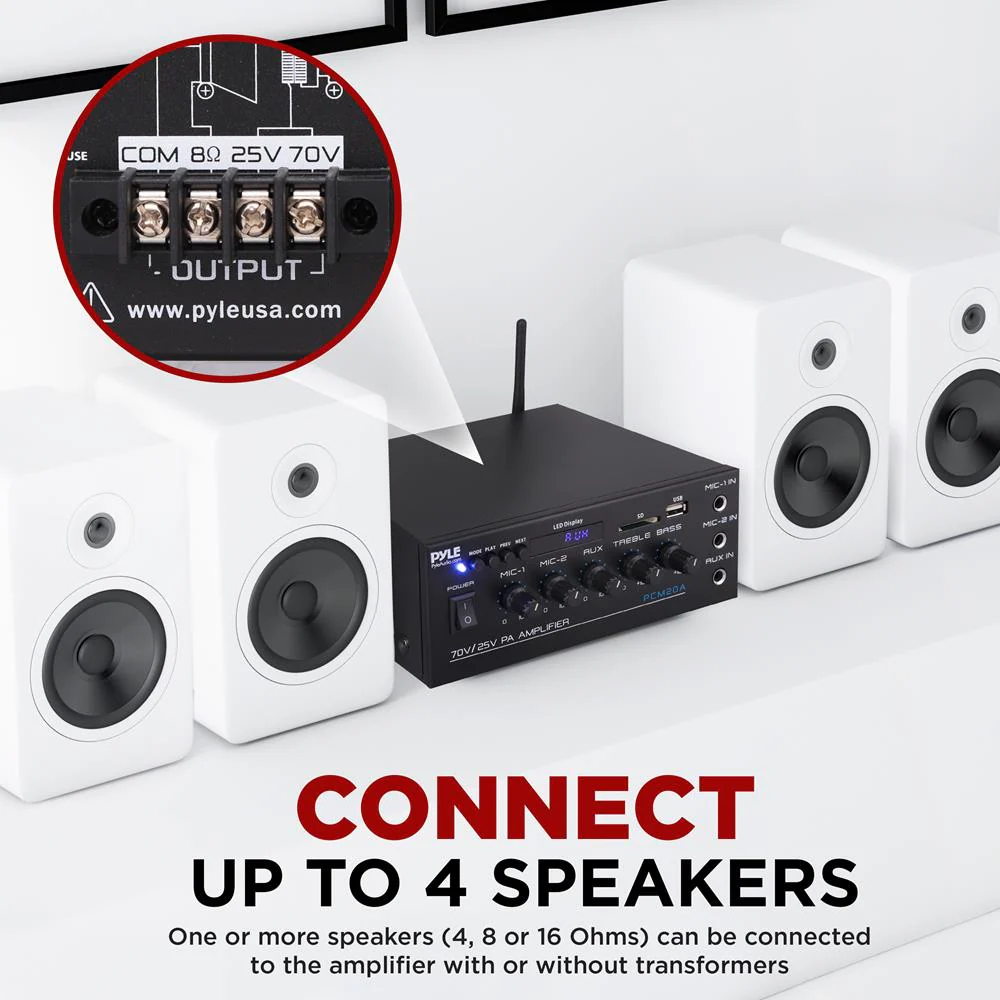

• Connect up to (4) Speakers
• Speaker Transformer Compatibility
• Bass and Treble Tone Controls
• Power ON/OFF Switch & LED Indicator
• Includes Detachable AC Power Cable
• Convenient Audio Control Amp
• USB/SD/FM/Bluetooth Playing
• Blue LED Display for Playing Information
• Extend Bluetooth Antenna

Bluetooth Connectivity:

• Instantly Stream Music from Your Bluetooth Devices
• Works with All Your Favorite Bluetooth Devices
• (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Bluetooth Network Name: 'PYLEUSA’
• Bluetooth Version: 4.0
• Bluetooth Wireless Range: 30'+ Feet

What’s In The Box:

• PA Amplifier
• FM Antenna
• Remote control

Technical Specs:

• MAX Power Output: 40 Watt
• Construction Material: Iron
• Treble/Bass: +/-10dB, 100-10kHz
• Frequency Response: 50-15kHz
• Attenuation (Mic): 61dB
• T.H.D.: <1%
• Battery Operated Remote, Requires (1) x CR-2025 Button Cell Battery, Included
• Replaceable Fuse
• Power: 120/240 Voltage Selector
• Dimensions (W x H x D): 7.87'' x 3.15'' x 5.9'' -inches

What's In The Box

PA Amplifier

FM Antenna

Remote control

Specification

This 40 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. The three ¼” jack inputs are conveniently located on the front – two mic inputs and one auxillary input. Mic 1 has an auto-talkover, so you can easily cancel the other inputs. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.
