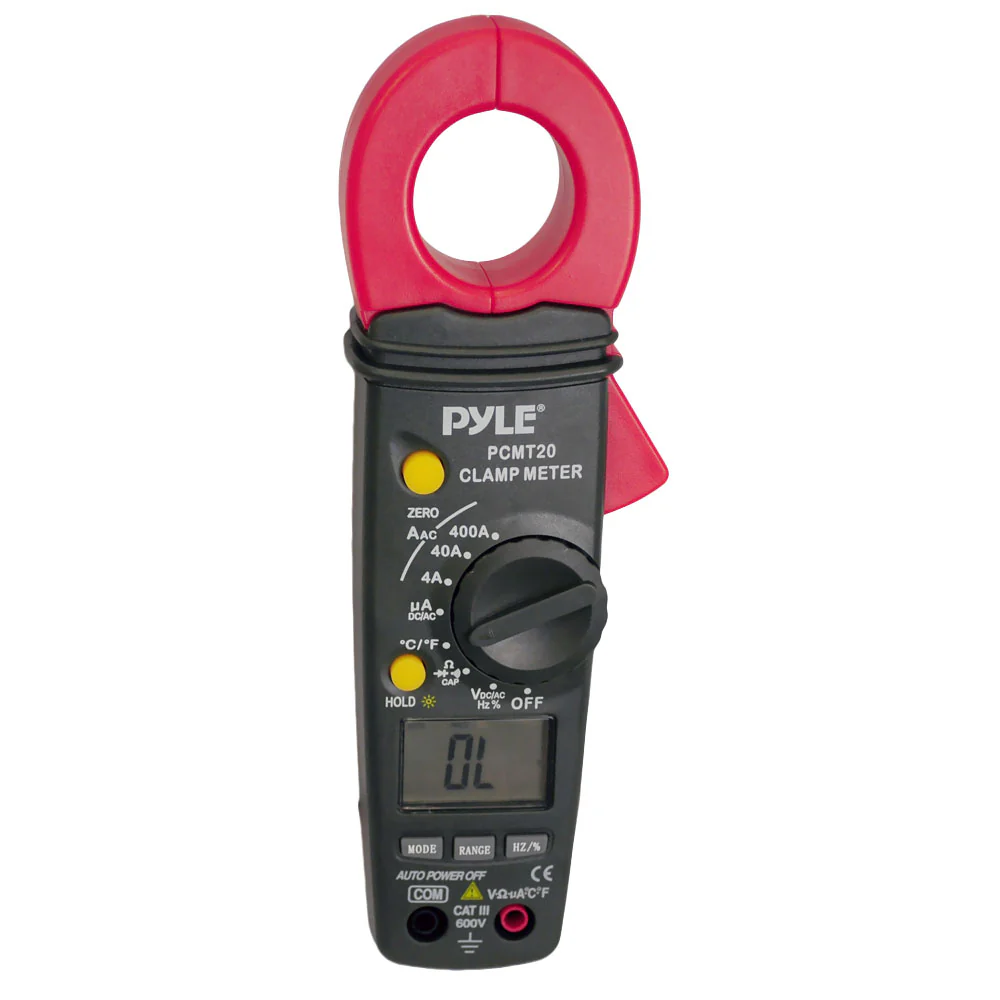

The Pyle PCMT20 Digital Clamp Meter / Multimeter Tester provides accurate and reliable results. Multi-functional measurement ability and simple button control operation allow you to check for AC/DC current, AC/DV voltage, diode, resistance, continuity testing, frequency and duty cycle measurement. The integrated clamp / jaw size fits a diameter of 0.9'' (23mm) and is used for AC measurements. Featuring selectable auto-ranging and manual ranging modes, the digital LCD screen displays your information and data hold allows you to capture the measurement reading for further review. System includes test leads and type K temperature leads for sure with the built-in thermometer. Battery operated requiring 2 'AAA' batteries.

DETAILS

Features:

• Multi-Function Electrical Multimeter Tester
• Measures AC Amps, AC Voltage, DC Voltage
• Manual Ranging & Auto-Ranging Selectable
• Diode, Resistance & Continuity Testing
• Frequency & Duty Cycle Measurement (Hz/%)
• ACA, Capacitance Zero & Offset Adjustment Modes
• Data Hold Readout Function
• Digital LCD Display with Illuminated Backlight
• Simple Button Control Operation
• Battery Saving Auto Power Off Ability
• Temperature Measurement: ¬∞F or ¬∞C

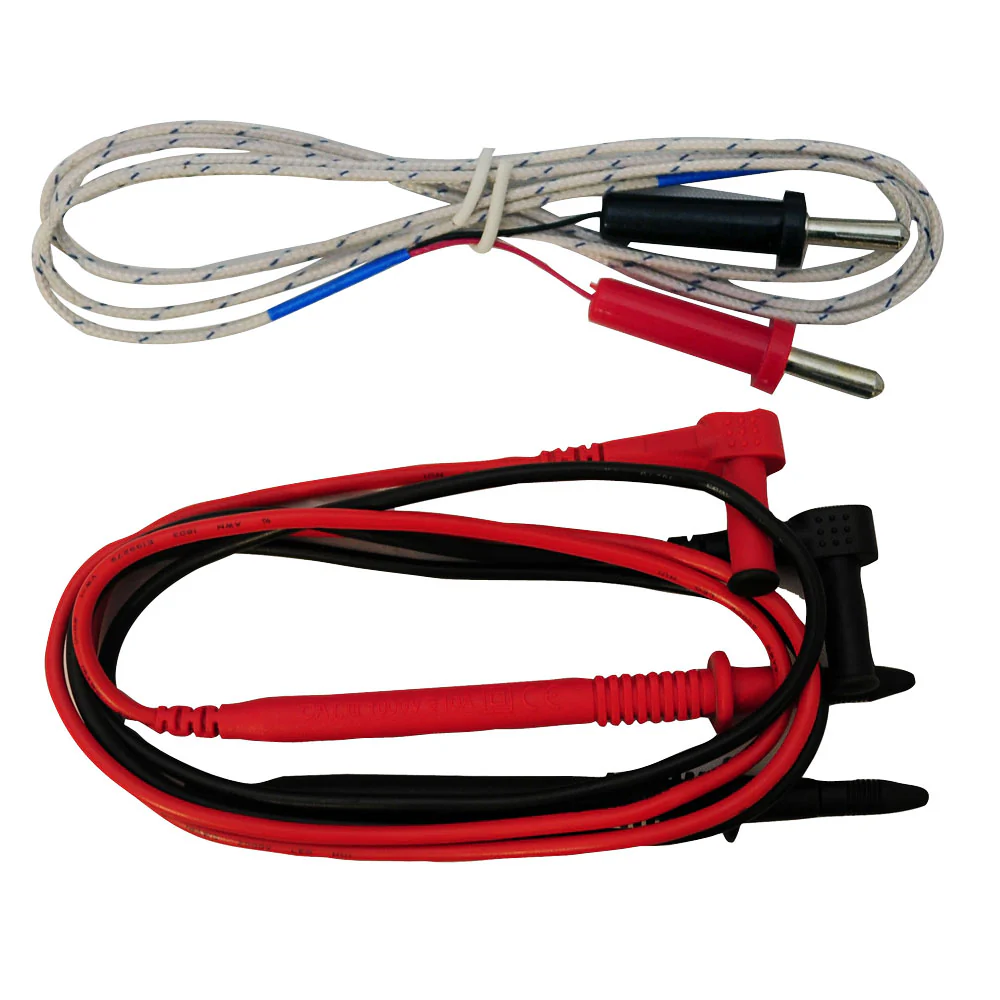

• Includes Test Leads & Type K Temperature Leads
• Battery Operated: Requires 2 x 'AAA' Batteries
• *Measurement Clamp Function as AC Meter

Technical Specs:

• Clamp/Jaw Size: 0.9'' (23mm)
• Max. Resolution to Current Measurement: 0.1uA
• DC Current Range: 400¬µA (Accuracy: +/- 1.5%)
• AC Current Range: 0-400¬µA (Accuracy: +/- 2.0%)
• DC Voltage Range: 0-600V (Accuracy: +/- 1.5%
• AC Voltage Range: 0-600V (Accuracy: +/- 2.0%)
• Resistance Range: 0-40 MO (Accuracy: +/- 3.0%)
• Capacitance Range: 40nF - 100¬µF (Accuracy: +/- 3.0%)
• Frequency Range: 50Hz - 150kHz (Accuracy: +/- 1.2%)
• Duty Cycle Range: 0.5% - 99.0% (Accuracy: +/- 1.2%)
• Temperature Range: 1832¬∞F/1000 ¬∞C (Accuracy: +/- 3.0%)
• Dimensions (L x W x H): 2.0'' x 1.4'' x 7.9''
