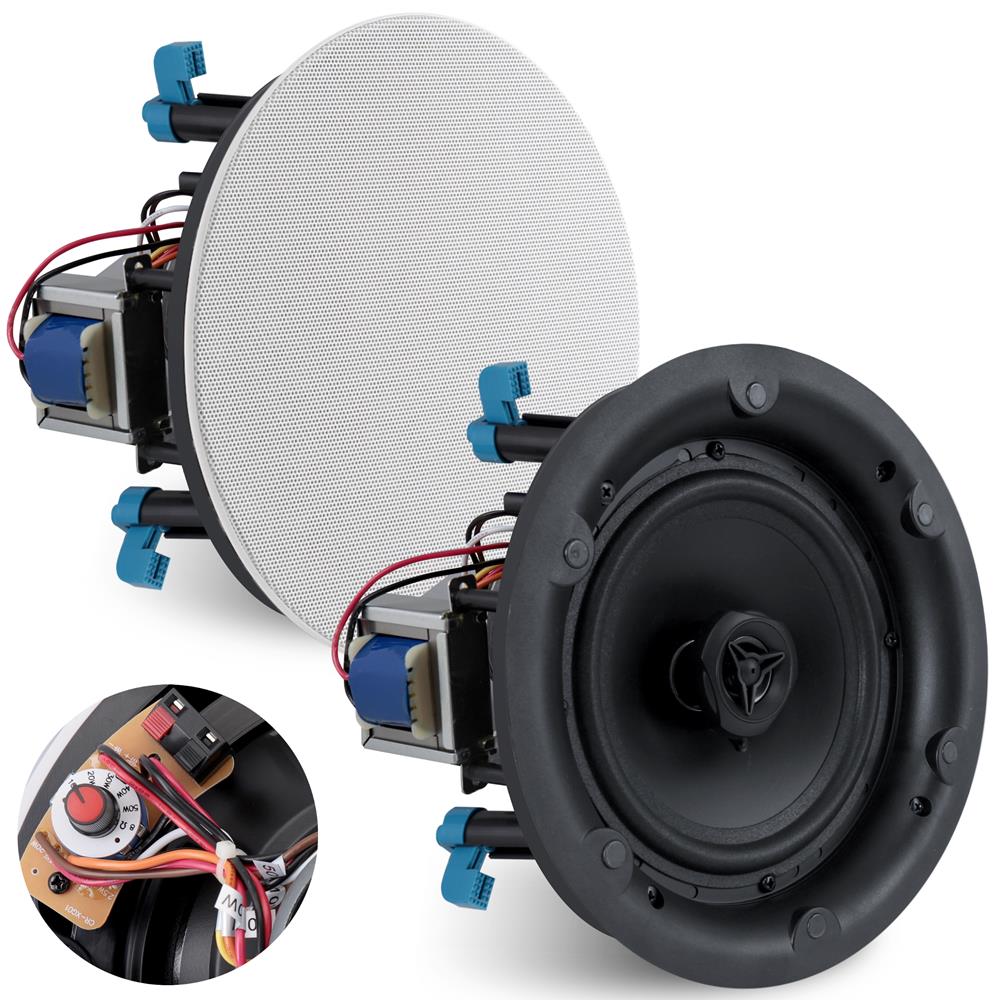

The Pyle 8.0’’ In-Wall / In-Ceiling 70V Speaker - Flush Mount Low-Profile Speaker with 70 Volt Transformer, Magnetic Grill (600 Watt) - In-Wall / In-Ceiling Speaker System - Built-in 70 Volt Transformer Tapping - High-Impedance, Line-Matching Transformer - 2-Way Full Range Stereo Sound - Detachable Magnetic Speaker Grill Cover - Used for Amplifier / PA Speaker Public Address Systems - Slim-Style, Low Profile Design - Mounts Flush on Walls or Ceilings - 1/2'' High Compliance Dome Tweeter - Poly Mica Cone with High-Sensitivity Foam Edge - Cut-Out Size Template for Easy Installation - Environmentally Friendly ABS Construction - Used for Home, Office & Business Applications - Technical Specs: - Power Output: 600 Watt MAX - Speaker Size: 8.0’’ -inches.

DETAILS

Features:

• In-Wall / In-Ceiling Speaker System

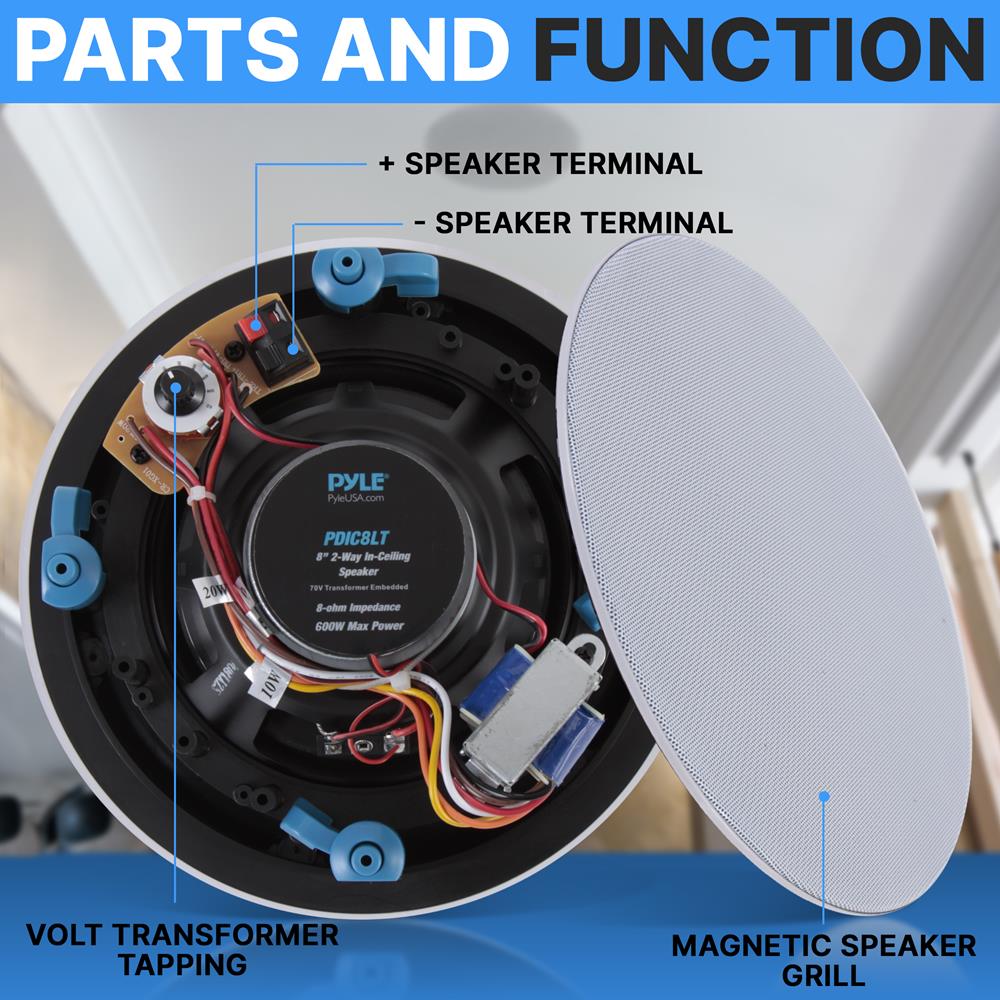

• Built-in 70 Volt Transformer Tapping
• High-Impedance, Line-Matching Transformer
• 2-Way Full Range Stereo Sound
• Detachable Magnetic Speaker Grill Cover
• Used for Amplifier / PA Speaker Public Address Systems
• Slim-Style, Low Profile Design

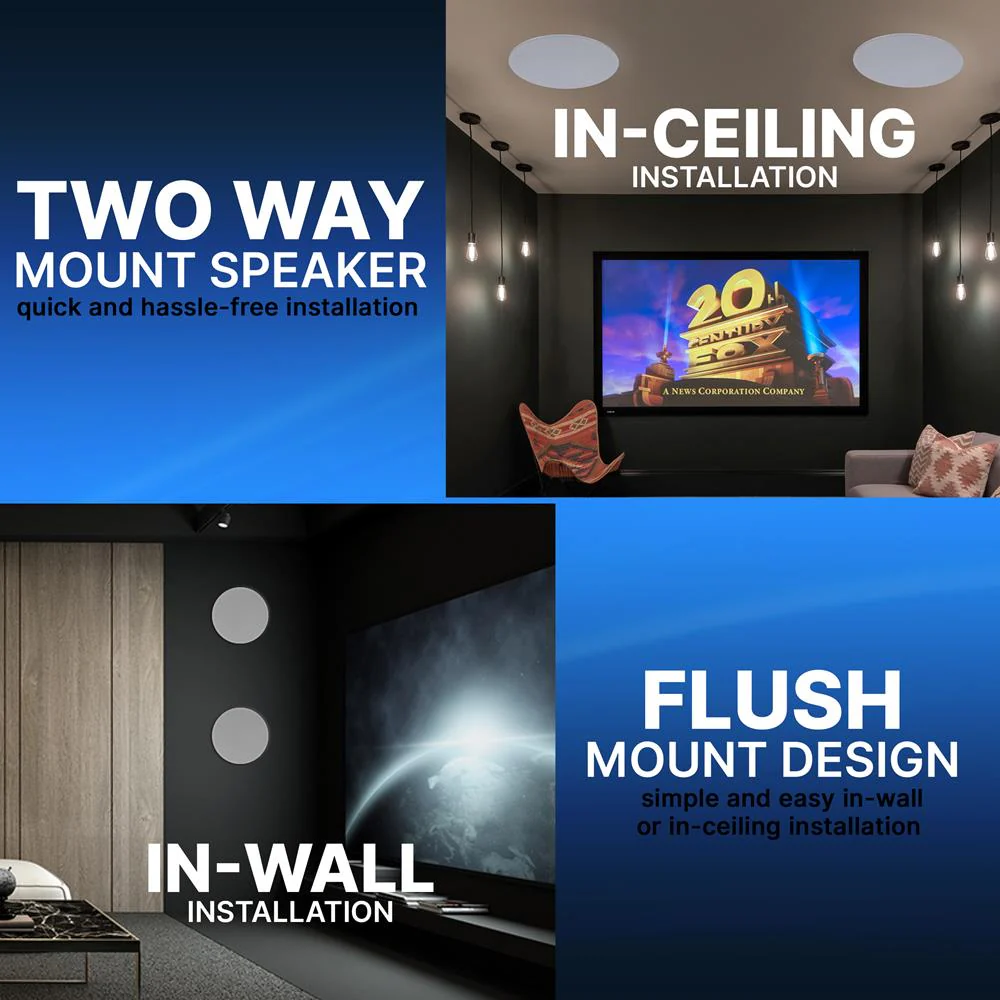

• Mounts Flush on Walls or Ceilings

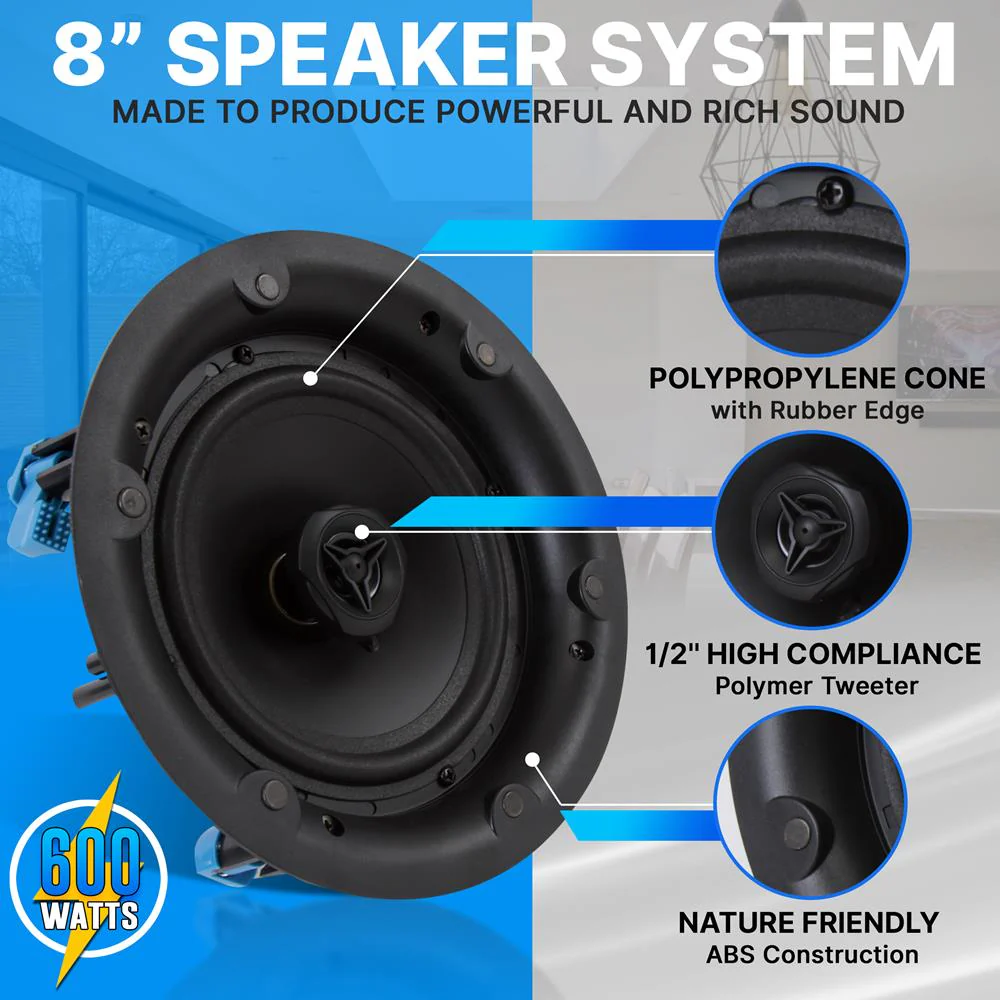

• 1/2'' High Compliance Dome Tweeter
• Poly Mica Cone with High-Sensitivity Foam Edge

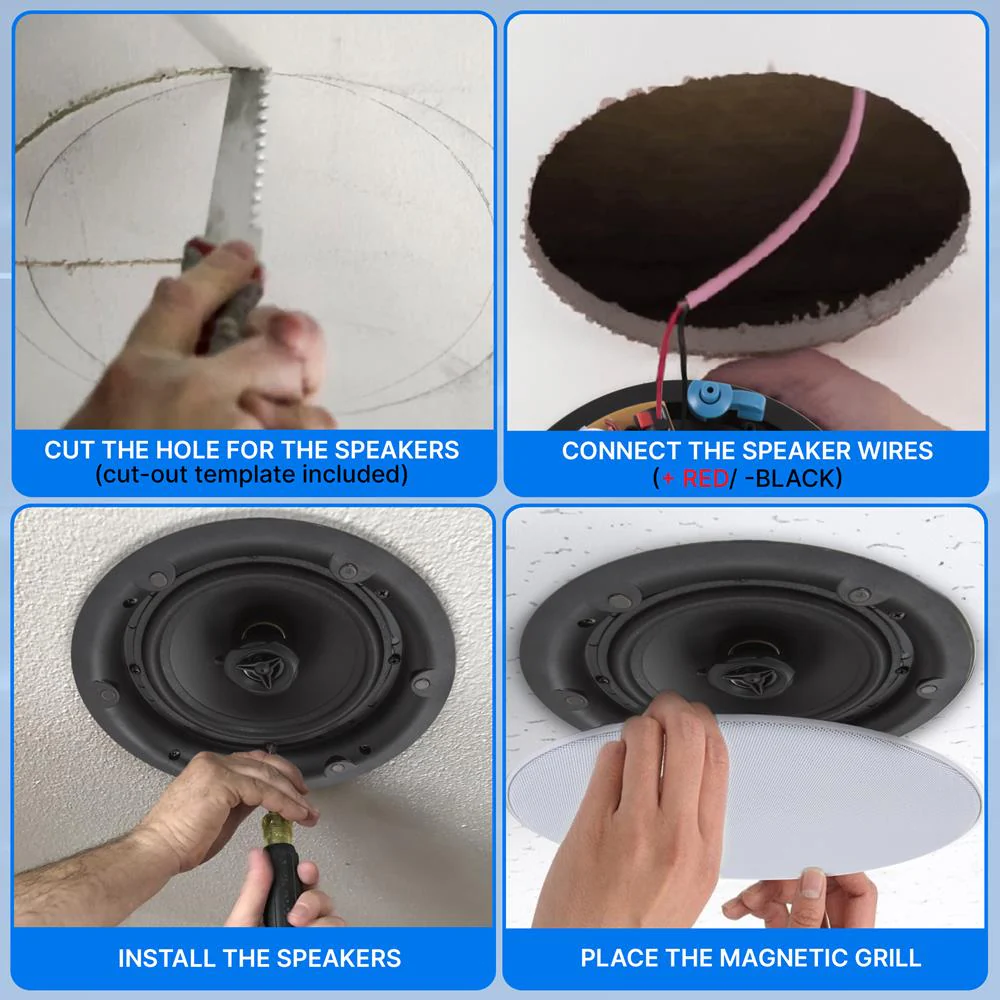

• Cut-Out Size Template for Easy Installation
• Environmentally Friendly ABS Construction
• Used for Home, Office & Business Applications

Technical Specs:

• Power Output: 600 Watt MAX
• Speaker Size: 8.0’’ -inches
• 70V Transformer Tapping at 20W/15W/10W/5W/2.5W and 8OHM
• Frequency Response: 55Hz-20kHz
• Sensitivity: 91 dB
• Magnet: 25 oz.
• Cut-Out Diameter: 9.53'' -inches
• Mounting Depth: 4.17'' -inches
• Total Speaker Size (Diameter x Depth): 11.06" x 4.33" -inches

What's In The Box

8.0’’ In-Wall/In-Ceiling Speaker, 70V

MANUALS & DOWNLOADS

PDIC8LT - Manuals
