The Pyle PDWM2145 delivers clear, noise-free wireless transmission and excellent sound reproduction. Simple setup and installation allow you to transmit clear sound instantly. System features include two body-pack transmitter with two headset & two lavalier microphones, VHF narrow band system, dual frequency design, high signal to noise ratio performance and more. Enjoy dual channel voice distribution across the transmitters. Whether used for work or play, for on-stage vocal performances or conference room speeches, this wireless microphone system will provide you with a quality audio experience. Enjoy hassle-free and reliable wireless sound transmission with today's latest system technology with this all-in-one package.

DETAILS

Features:

• VHF Narrow Band Receiver System
• Dual Frequency Design (Channel A/B)
• High Signal/Noise Ratio Performance
• Broad Frequency Response Range & Low Distortion

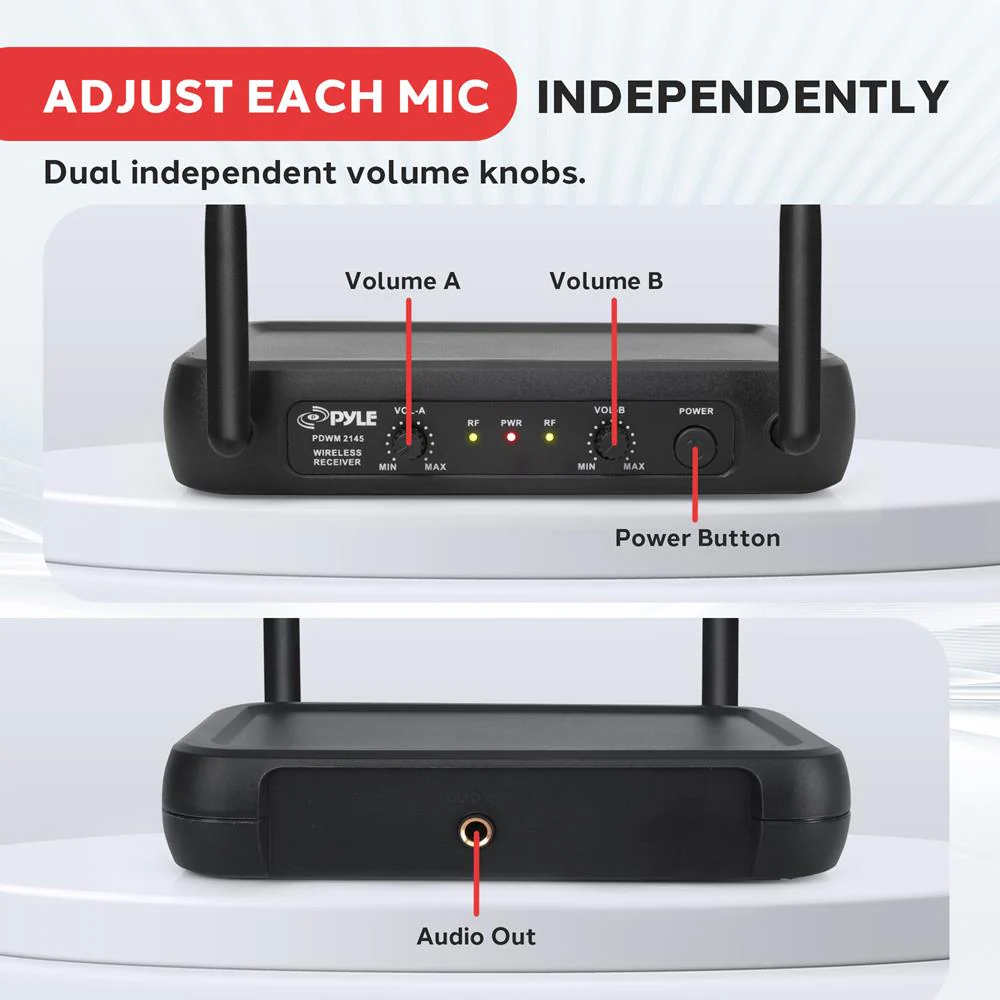

• Independent Adjustable Volume Control
• Dual Independent Channel Antennas
• RF (Radio Frequency) Signal Indicator
• AF (Audio Frequency) Signal Indicator

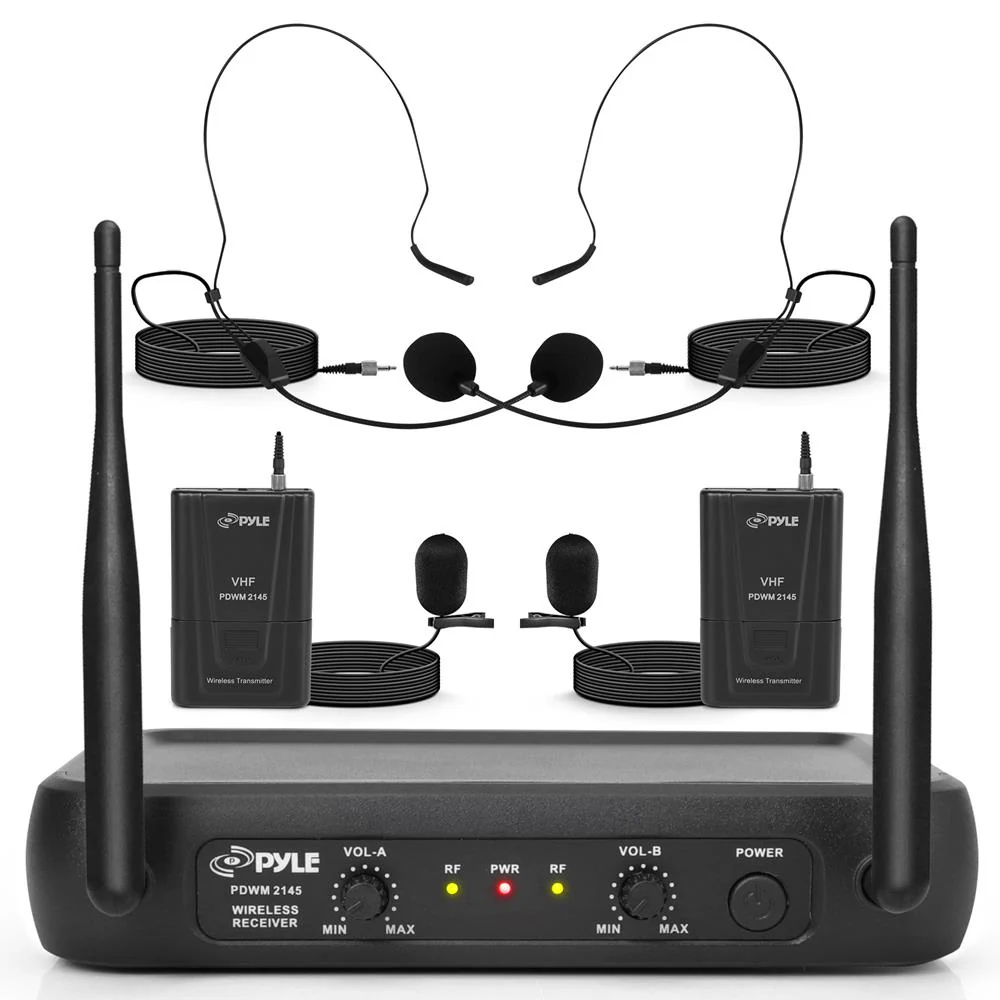

What's in the Box:

• Microphone Receiver
• (2) Body-Pack Transmitters
• (2) Headset Microphones

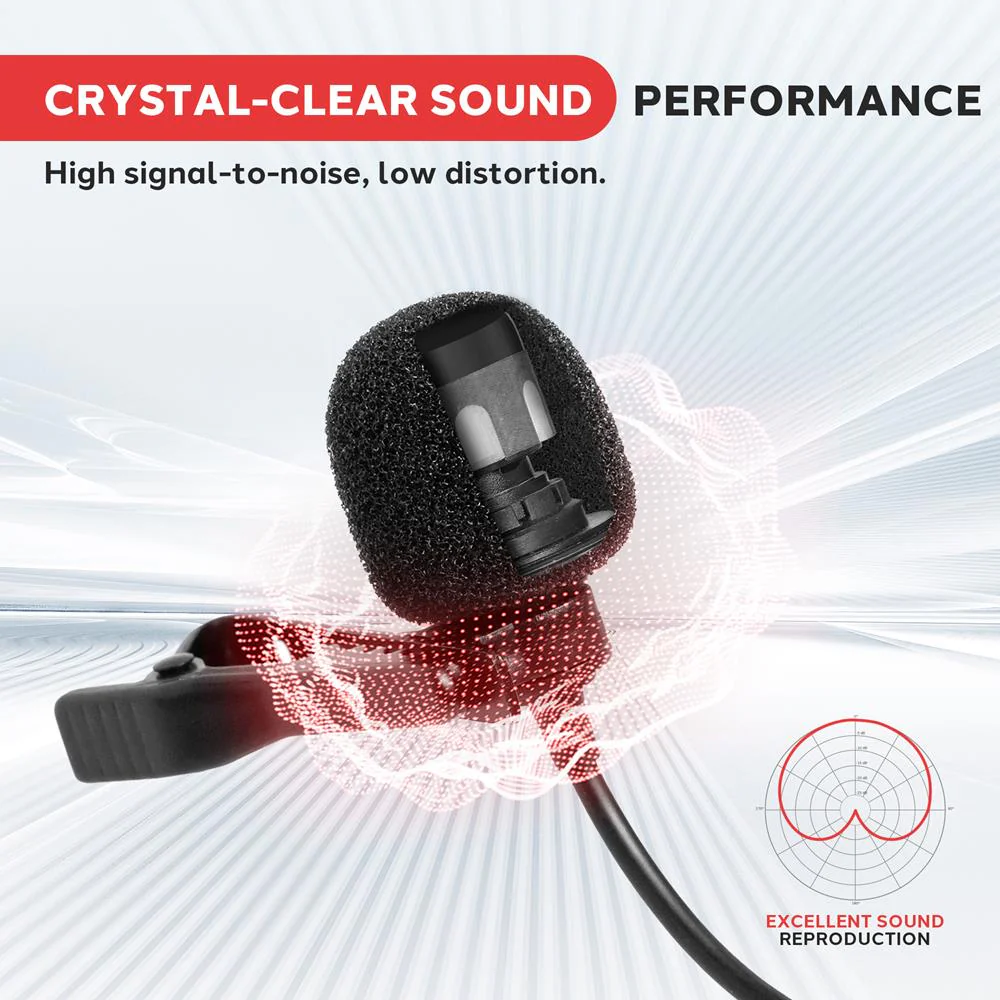

• (2) Lavalier Microphones

Belt-Pack Transmitters:

• Modulation Pattern: FM
• RF Power Output: >13dBm
• Modulation Degree: >30KHz
• Power Current: <110mA
• Harmonic at Higher Degree: <60dB
• Battery Powered, Require (2) x 'AA' Batteries -Each

System Receiver:

• Sensitivity: -95dBm (S/N:12dB)
• RF Image Rejection:-75dB
• Audio Dynamic Range: 95dB
• T.H.D.: <1%
• S/N Ratio: >70dB
• Neighboring Channel / Interference: >70dB
• Power: AC 120V, 60Hz
• Receiver Dimensions (L x W x H): 8.07'' x 5.75'' x 1.64''

What's In The Box

Microphone Receiver

(2) Body-Pack Transmitters

(2) Headset Microphones

(2) Lavalier Microphones

MANUALS & DOWNLOADS

PDWM2145 - Manuals
