The Pyle PDWM3365 delivers clear, distortion-free and wireless audio transmission -- with hassle-free operation. The Wireless Microphone System is quick and easy-to-setup, giving you the ability to transmit clear and sharp sounding vocals instantly. The system features a multi-frequency channel system that is designed to eliminate distortion and unwanted noise. Whether used for work or play, for on-stage vocal performances, or conference room speeches, this rack mountable wireless microphone system will provide you with a quality audio experience. Use the included belt-pack transmitters, headset and lavalier microphones to enjoy hassle-free and reliable wireless sound transmission that is perfect for home, office or business use. The Pyle Wireless Microphone System will help you transmit your audio with ease.

DETAILS

Features:

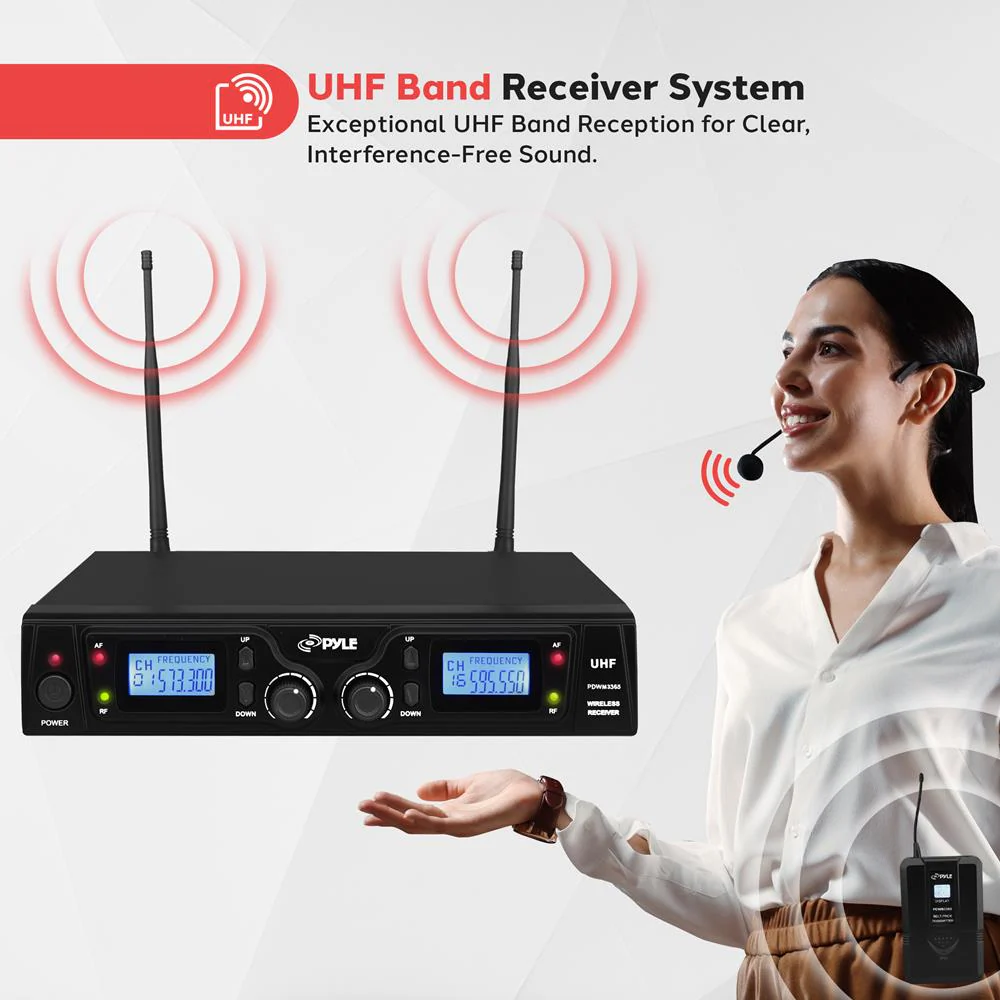

• UHF Band Receiver System
• 16 Channel Frequency Design
• PLL-Synthesized Control Technique
• Double Noise Squelch Operation Circuitry
• Up to 165' Feet Wireless Communication Range
• Low Distortion
• Integrated Noise Filtration System
• High Signal/Noise Ratio Performance

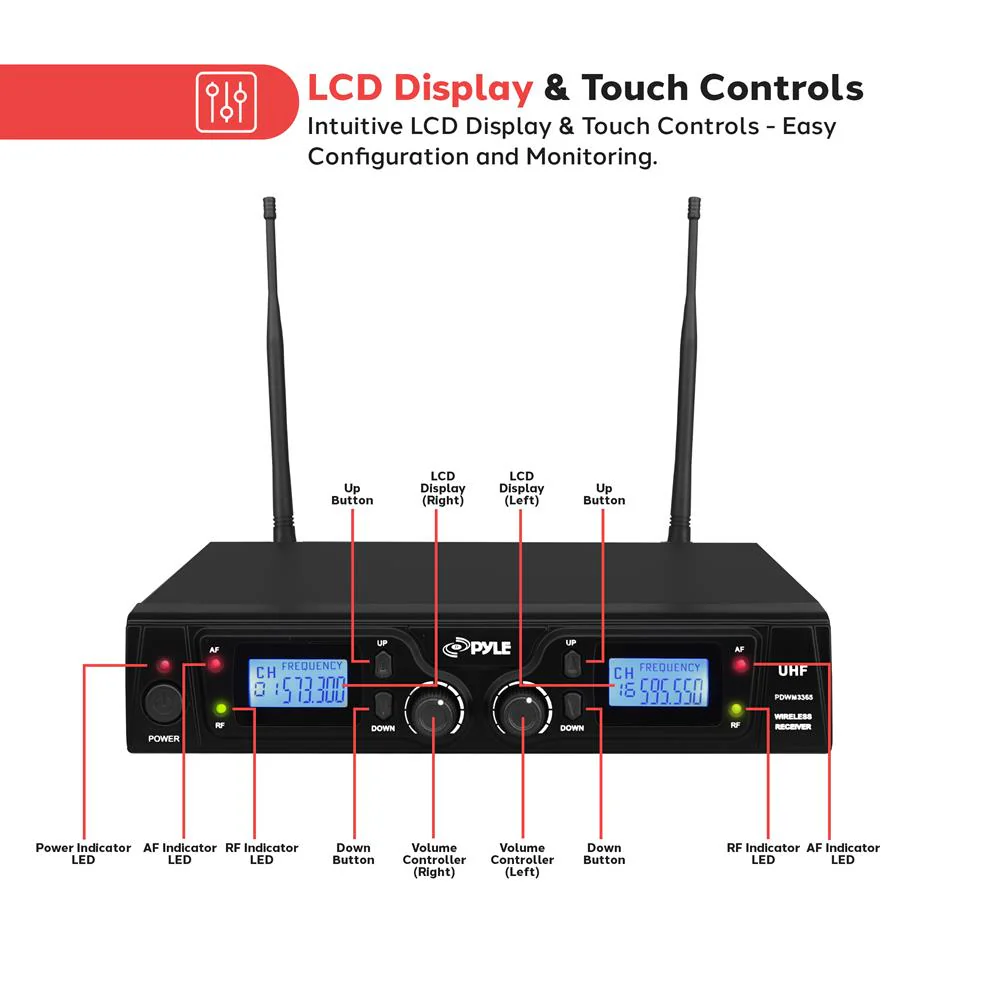

• AF and RF Signal LED Indicators
• Independent Channel Adjustable Volume Controls
• LCD Digital Display with Channel & Frequency Readout
• (2) XLR Mixed Balanced Output Jack Connectors
• 1/4'' Unbalanced Audio Output Jack Connector
• Easy-to-Use Touch Button Controls
• Detachable Dual Antennas
• Rack Mountable System

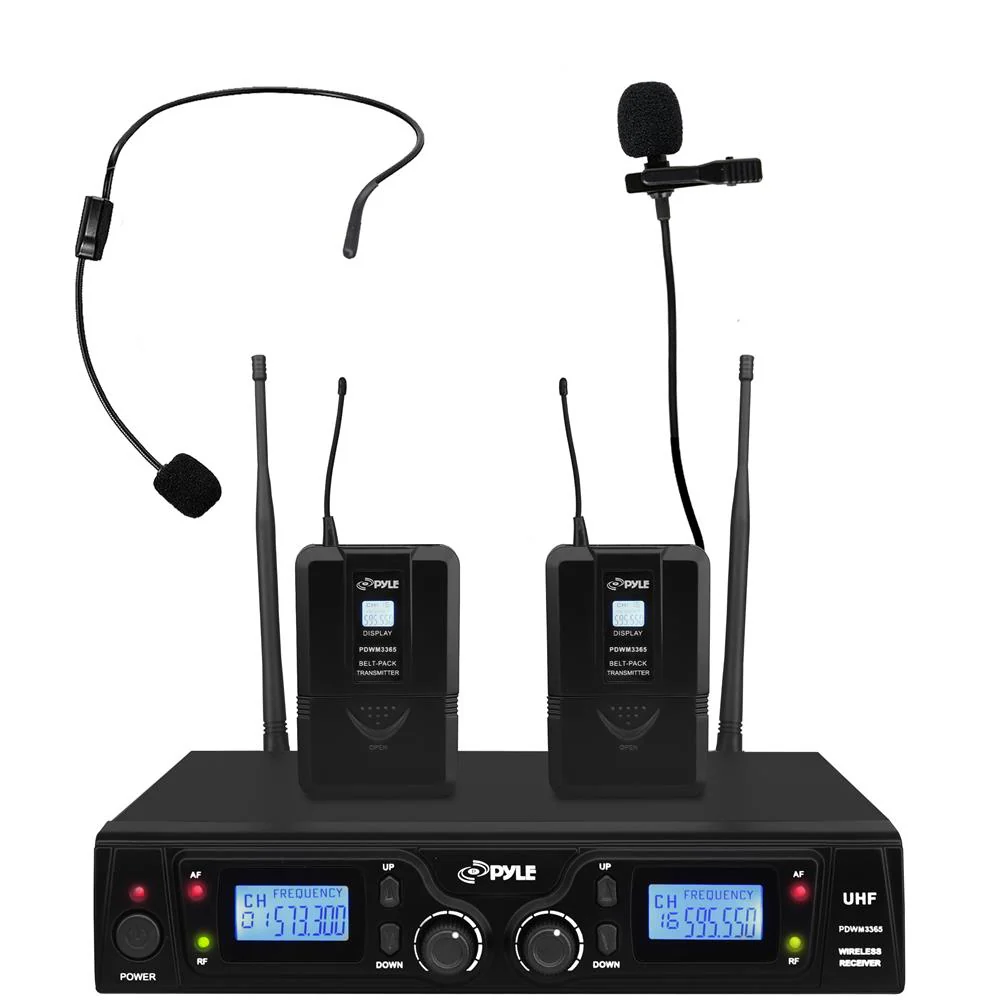

What’s in the Box:

• Receiver Base
• (2) Body-Pack Transmitters
• (2) Headset Microphones
• (2) Lavalier Microphones
• Detachable Rack Mount Brackets
• 1/4’’ Audio Cable
• Power Adapter
• Travel Case

Bodypack Transmitters:

• Includes (2) Bodypack Transmitters
• RF Output: 10dBm
• Modulation Type: FM
• Max Deviation: ±70KHz
• Spurious Emission: >55dB
• Power Requirements: (2) 'AA' Batteries
• Dimensions (L x W x H): 4.0'' x 2.5'' x 1.0''

Receiver Base:

• Mobile State Range: 100dB
• Receiving Sensitivity: -105dBm
• Signal/Noise Ratio: >85dB
• Image & Spurious Rejection: >70dB
• Audio Output Level: +/- 300mV
• Maximum Deviation: +/- 15kHz
• T.H.D.: <1%
• Dimensions: 8.5'' x 6.7'' x 2.0'' -inches
• Power Supply: DC 13-15V

What's In The Box

Receiver Base

(2) Body-Pack Transmitters

(2) Headset Microphones

(2) Lavalier Microphones

Detachable Rack Mount Brackets

1/4’’ Audio Cable

Power Adapter

Travel Case

MANUALS & DOWNLOADS

PDWM3365 - Manuals
