DETAILS

Features:

• Desktop Wireless Microphone System
• PA Public Address Mic Audio Control Receiver
• Home Theater & Office Karaoke-Style Vocals
• UHF Narrow Band Audio Transmitter
• Includes (4) Beltpacks & (4) Headset Mics
• Portable Battery-Operated Headset Bodypacks
• Bluetooth Wireless Music Streaming Ability
• Convenient Microphone Voice-Over
• Talk-Over Ability via Bluetooth Streaming Music with Microphones
• Digital Display with Selectable Mic Frequency
• Integrated Antennas for Extended Wireless Range
• Simple Plug-and-Play Operation
• Integrated Low Noise Circuitry
• Ultra-Wide Frequency Response
• Noise-Eliminating SMT Technology
• Crisp Audio Clarity for Vocals & Singing
• Connect & Stream Audio to External Devices

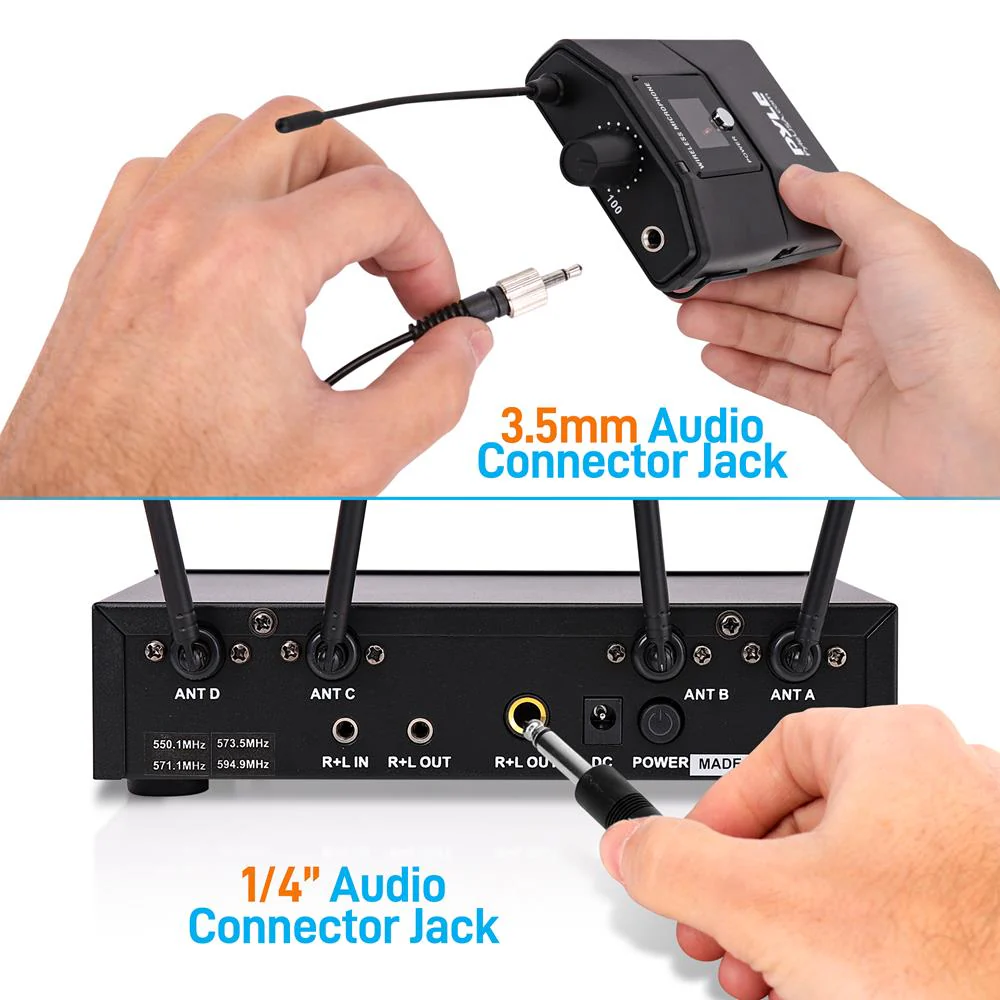

• 1/4'' -inch (6.3mm) Wired Microphone Input

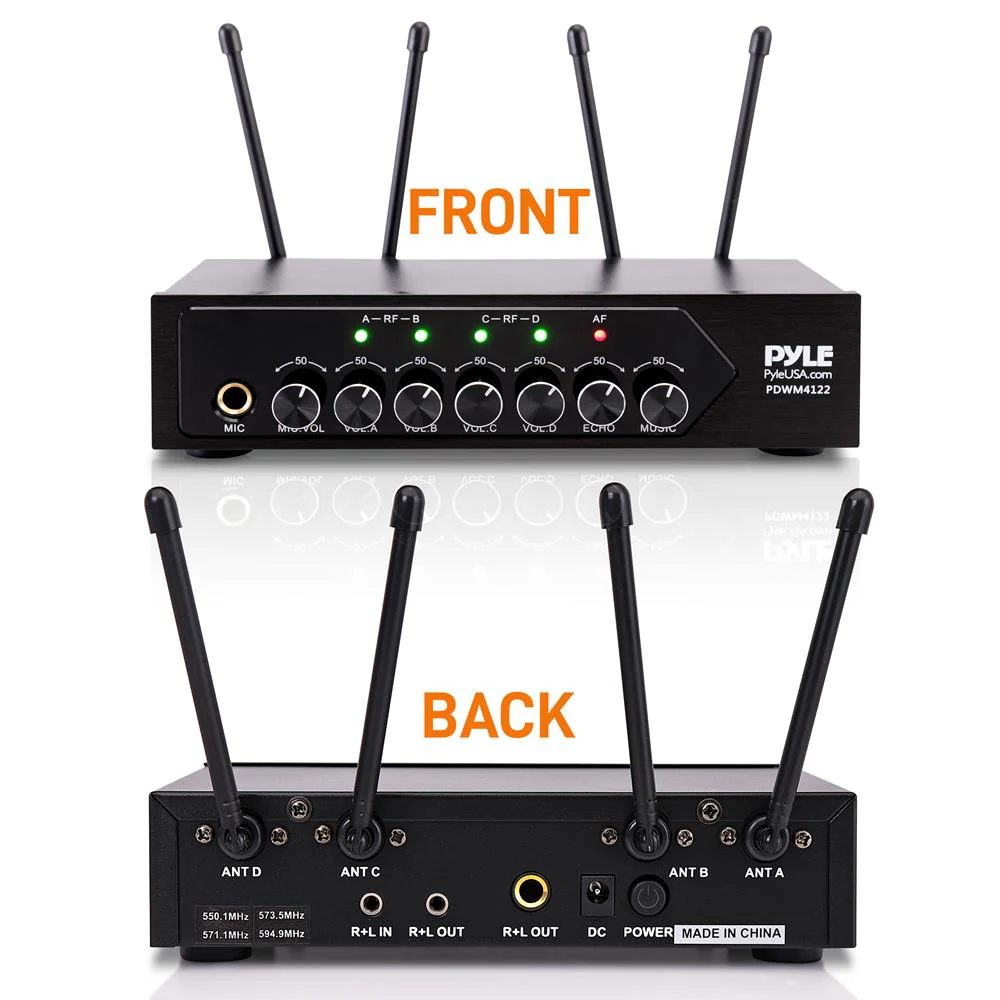

• Rear Panel 1/4'' -inch (6.3mm) Unbalanced Mixed Output
• Rear Panel Aux (3.5mm) Audio Input/Output Jacks
• Audio Configuration Echo / Music / Vol Adjustment
• Independent Channel Volume Control
• Power ON/OFF Switch
• AF & RF Signal Frequency LED Indicator Lights
• Perfect for Professional Audio Stage & Studio Performances
• Directly Connects to Amplifiers, Stereos, Audio Processors, DJ Mixers
• Used for Home Karaoke, Classroom, Office & Business Applications

Bluetooth Connectivity:

• Simple & Hassle-Free Pairing
• Instant Wireless Audio Streaming Ability
• Play Music Directly from Your External Device
• Works with Smartphones, Tablets, Laptops, Computers
• Bluetooth Network Name: ‘Pyle’
• Bluetooth Version: 4.2
• Wireless Range: Up to 32’+ ft.

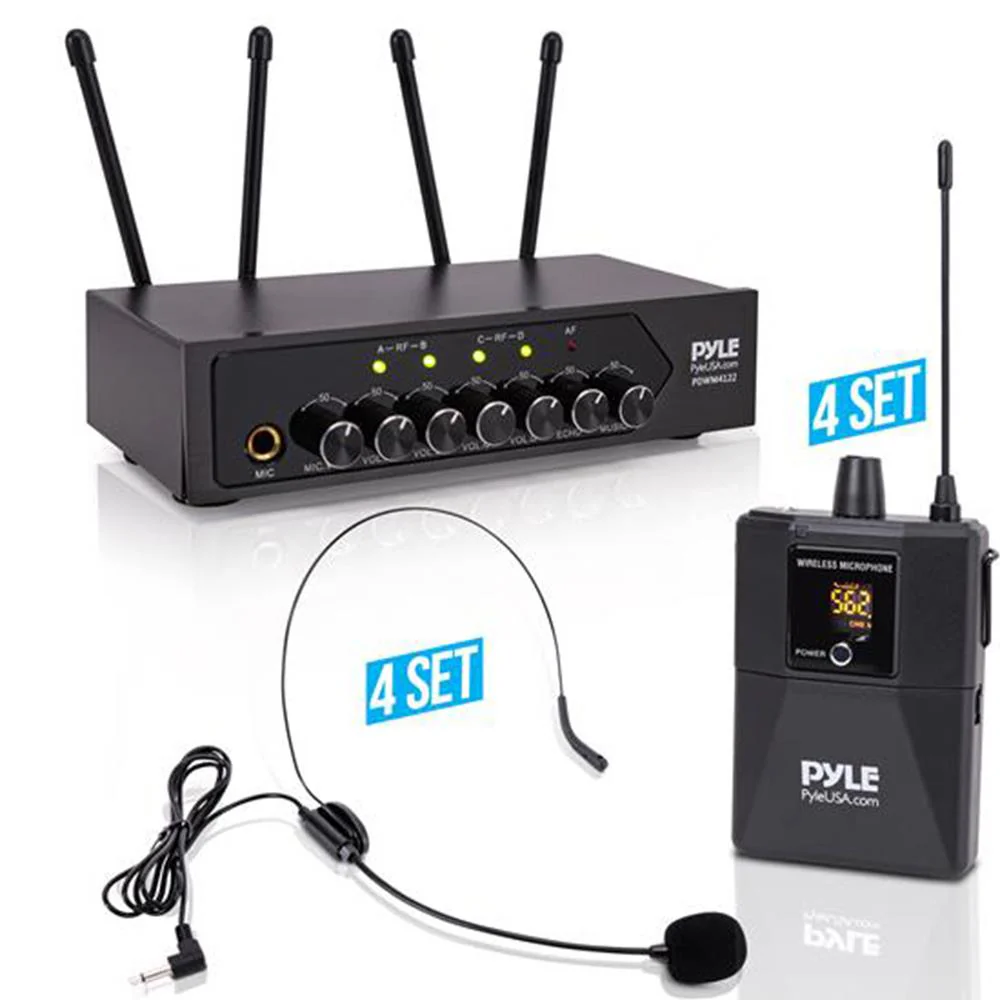

What’s In The Box:

• Microphone Receiver Base
• (4) Wireless Beltpack Transmitters
• (4) Headset Microphones
• RCA-to-Aux (3.5mm) Cable, 4.6’ ft.
• Aux (3.5mm) Audio Cable, 3.3’ ft.
• 1/4'' -inch (6.3mm) Audio Cable, 3.3’ ft.
• Power Adapter

Technical Specs:

• Wireless Operation: UHF Band Transmitter
• Microphone Element/Type: Dynamic
• Pickup/Polar Pattern: Uni-Directional

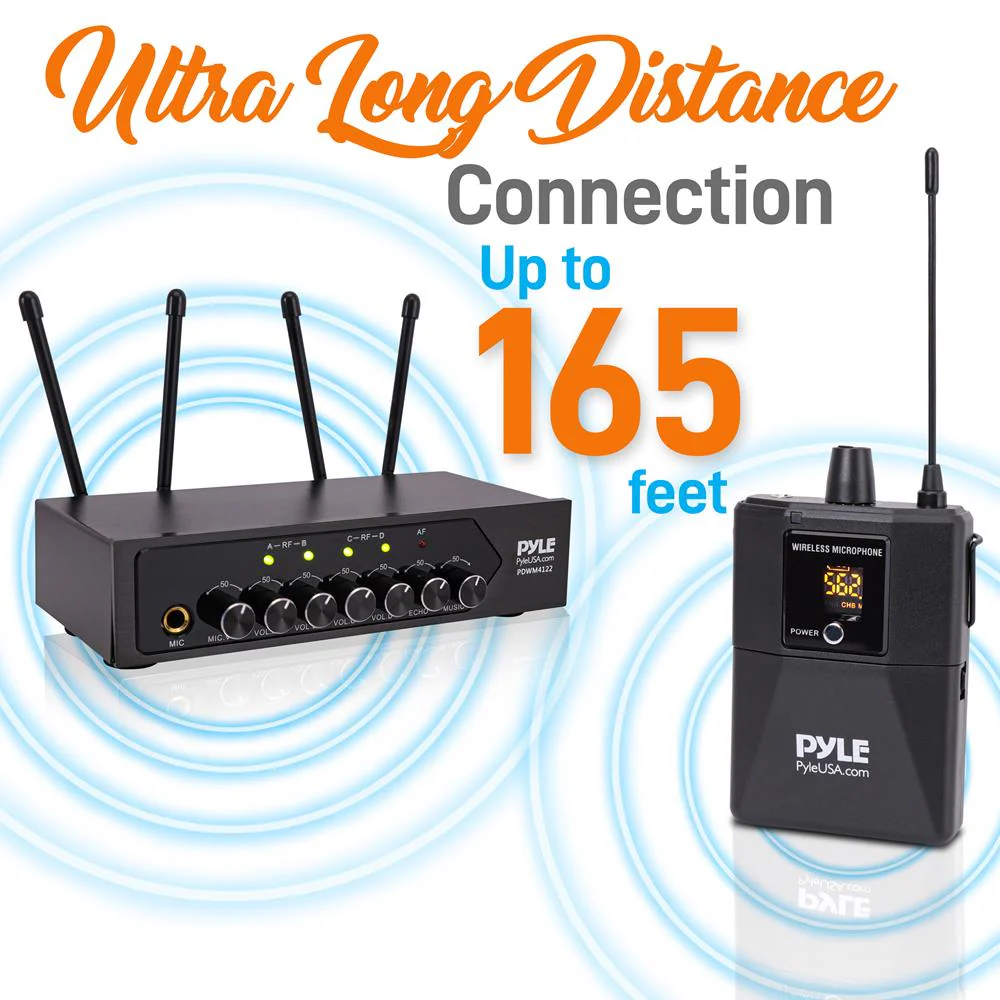

• Wireless Operating Range: Up to 165'+ ft.
• Sensitivity: 2/MV
• S/N Ratio: >95DB
• Transmitted Power: 10mW
• Dynamic Range: >95DB
• Distortion: <1%, 1kHz Modulation
• Construction Material: Metal Alloy Receiver Base, Engineered ABS Beltpacks
• Battery Operated Beltpacks, Require (2) x ‘AA’ Batteries, Not Included (Each)
• Power Supply: 120/240V (12V Power Adapter)
• Beltpack Transmitter Size (L x W x H): 2.6’’ x 1.1’’ x 3.6’’ -inches (Each)
• Mic Receiver Base Size (L x W x H): 7.5'' x 3.6'' x 1.7'' -inches
