Using manufacturing breakthroughs pioneered by Pyle, the PDWM4400 system redefines the price point for quality microphones. Class A solid state electronics are engineered for low noise, distortion and coloration. You will be amazed at how much microphone PDWM4400 gives you for the money. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.

DETAILS

Features:

• VHF Wireless Microphone System
• Wide Area Signal Range Coverage
• Independent Channel Volume Controls
• RF (Radio Frequency) & AF (Audio Frequency) Indicators
• XLR (3-Pin) Balanced Output
• 1/4’’ Mixed Output Jack
• 1/4’’ Independent Channel Output Jacks
• Integrated Receiver Antennas
• Power ON/OFF Switch
• Rack Mount Compatibility

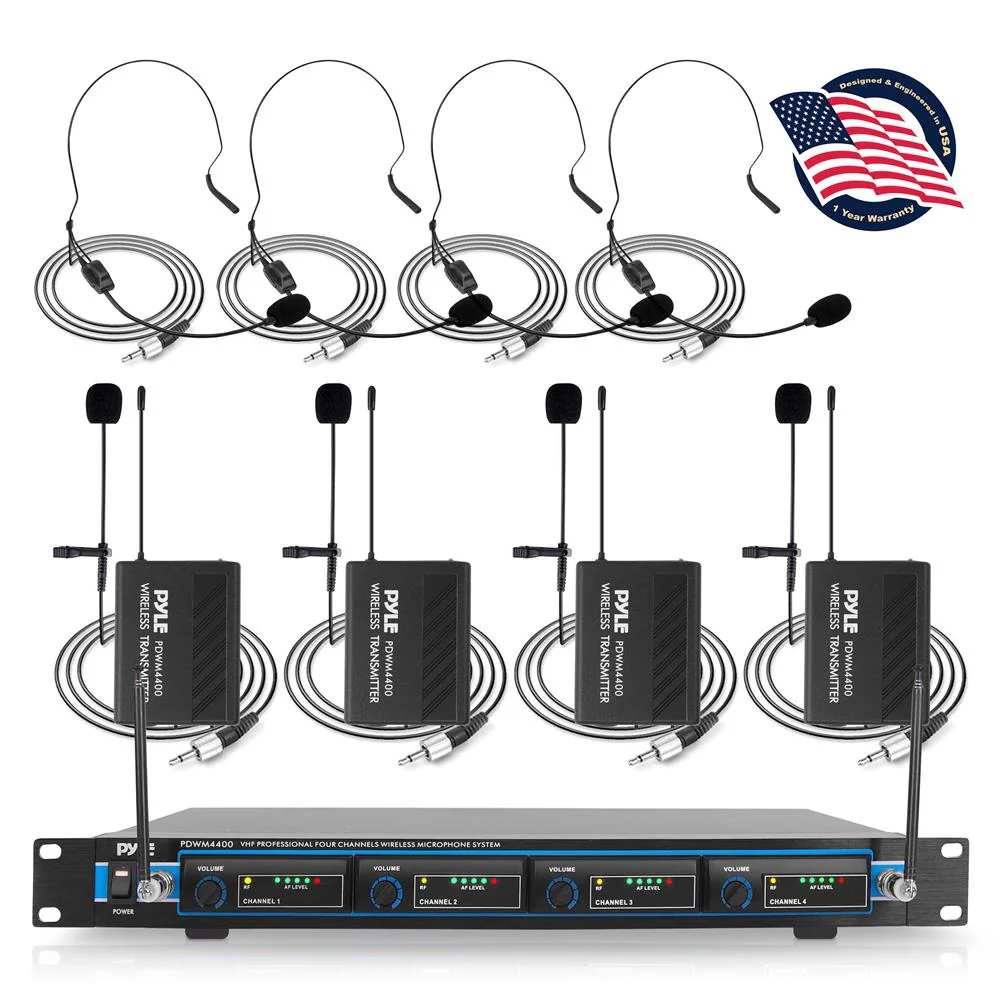

What’s in the Box:

• 4-Ch. Microphone Receiver Base
• (4) Beltpack Transmitters
• (4) Headset Microphones
• (4) Clip-on Lavalier Microphones
• (4) 9V Batteries
• 1/4’’ Audio Connection Cable
• Removable Rack Mount Brackets
• Power Adapter

Technical Specs:

• Microphone System Type: Quartz Control
• Wireless Operation Range: Up to 240’+ ft.
• Signal Stability: +/- 0.005%
• Dynamic Range: >100dB
• Spurious Rejection: <-40dB
• S/N Ratio: >80dB
• T.H.D.: <0.5%
• Battery Operated Mic Transmitters, Require (1) x 9V Battery (-Each)
• Power Supply: 110/220V
• Receiver Base Dimensions (L x W x H): 16.5'' x 8.2'' x 1.8'' -inches

What's In The Box

4-Ch. Microphone Receiver Base

(4) Beltpack Transmitters

(4) Headset Microphones

(4) Clip-on Lavalier Microphones

(4) 9V Batteries

1/4’’ Audio Connection Cable

Removable Rack Mount Brackets

Power Adapter

Specification

Using manufacturing breakthroughs pioneered by Pyle, the PDWM4400 system redefines the price point for quality microphones. Class A solid state electronics are engineered for low noise, distortion and coloration. You will be amazed at how much microphone PDWM4400 gives you for the money. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.
