The Pyle PDWM4540 delivers clear, noise-free wireless transmission and excellent sound reproduction. Simple setup and installation allow you to transmit clear sound instantly. System features include (4) individual balanced XLR output jacks for additional connectivity. Enjoy quad channel voice distribution across the two included handheld microphones and two body-pack transmitters -- system also includes two headset and two lavalier mics. Whether used for work or play, for on-stage vocal performances or conference room speeches, this wireless microphone system will provide you with a quality audio experience. Enjoy hassle-free and reliable wireless sound transmission with today's latest system technology with this all-in-one package.

DETAILS

Features:

• UHF Band Receiver System
• Quad Frequency 4-Channel Design (Channel 1, 2, 3, 4)
• Broad Frequency Response Range & Low Distortion
• High Signal/Noise Ratio Performance
• RF Signal & AF Signal LED Indicators
• Radio Frequency and Audio Frequency
• Independent Channel Adjustable Volume Controls

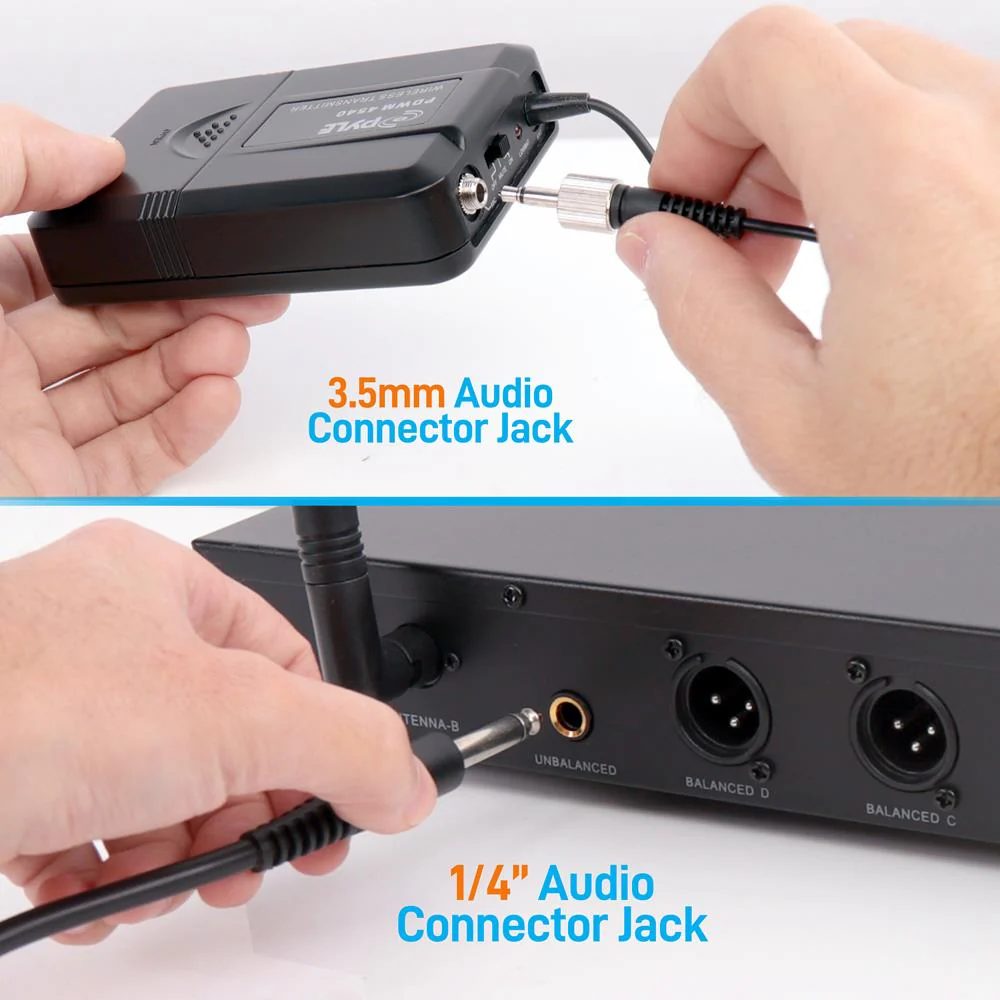

• (4) XLR Output Connector Jacks
• Detachable Dual Antennas

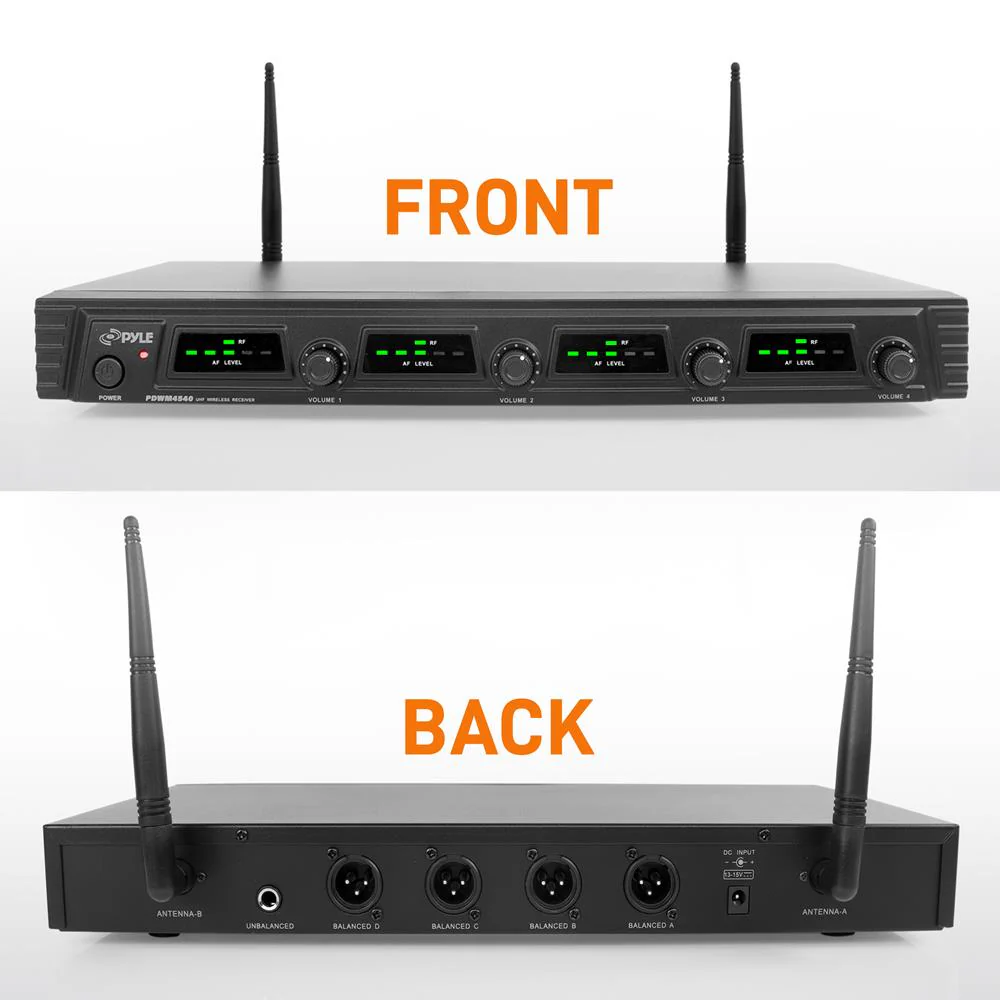

• Rack Mountable System

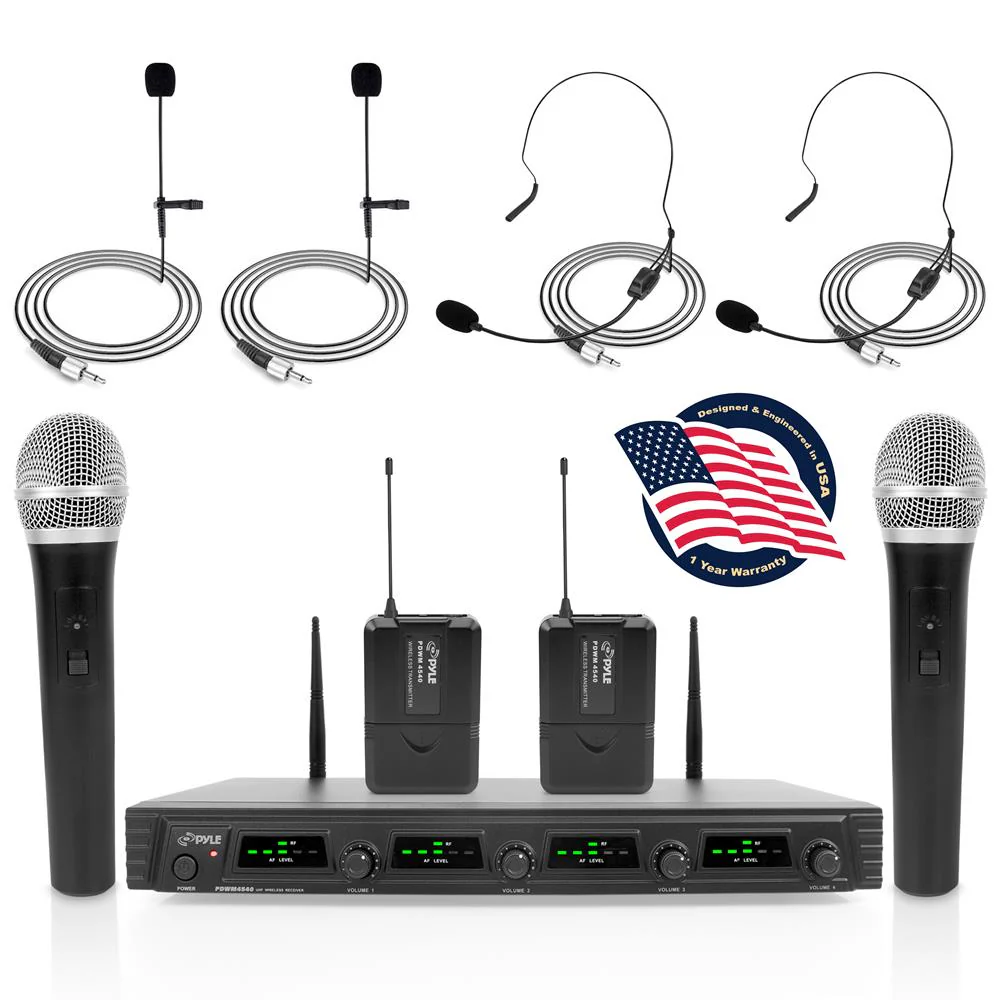

What's in the Box:

• Microphone Base Receiver
• (2) Belt-Pack Transmitters
• (2) Handheld Microphones
• (2) Headset Microphones
• (2) Lavalier Microphones
• (8) 'AA' Batteries
• Rack Mount Hardware
• Wall Power Adapter

Handheld Microphone Specs:

• RF Power Output: >10dBm
• Modulation Type: FM
• Nominal Power Current: <55mA
• Spurious Emission: >55dBc
• Battery Powered, Require (2) x 'AA' Batteries -Each

Beltpack Transmitter Specs:

• Modulation Type: FM
• RF Power Output: >10dBm
• Nominal Power Current: <40mA
• Spurious Emission: >53dBc
• Battery Powered, Require (2) x 'AA' Batteries -Each

System Receiver Specs:

• Image & Spurious Rejection: >70dB
• Receiving Sensitivity: -105dBm
• Signal/Noise Ratio: >105dB
• Border Upon Channel Rejection: >70dB
• T.H.D.: <1%
• Audio Output Level: 0-300mV
• Power Supply: 110/220V (12-15V DC Power Adapter)
• Dimensions (L x W x H): 15.5'' x 9.3'' x 2.2'' -inches

What's In The Box

Microphone Base Receiver

(2) Belt-Pack Transmitters

(2) Handheld Microphones

(2) Headset Microphones

(2) Lavalier Microphones

(8) 'AA' Batteries

Rack Mount Hardware

Wall Power Adapter
