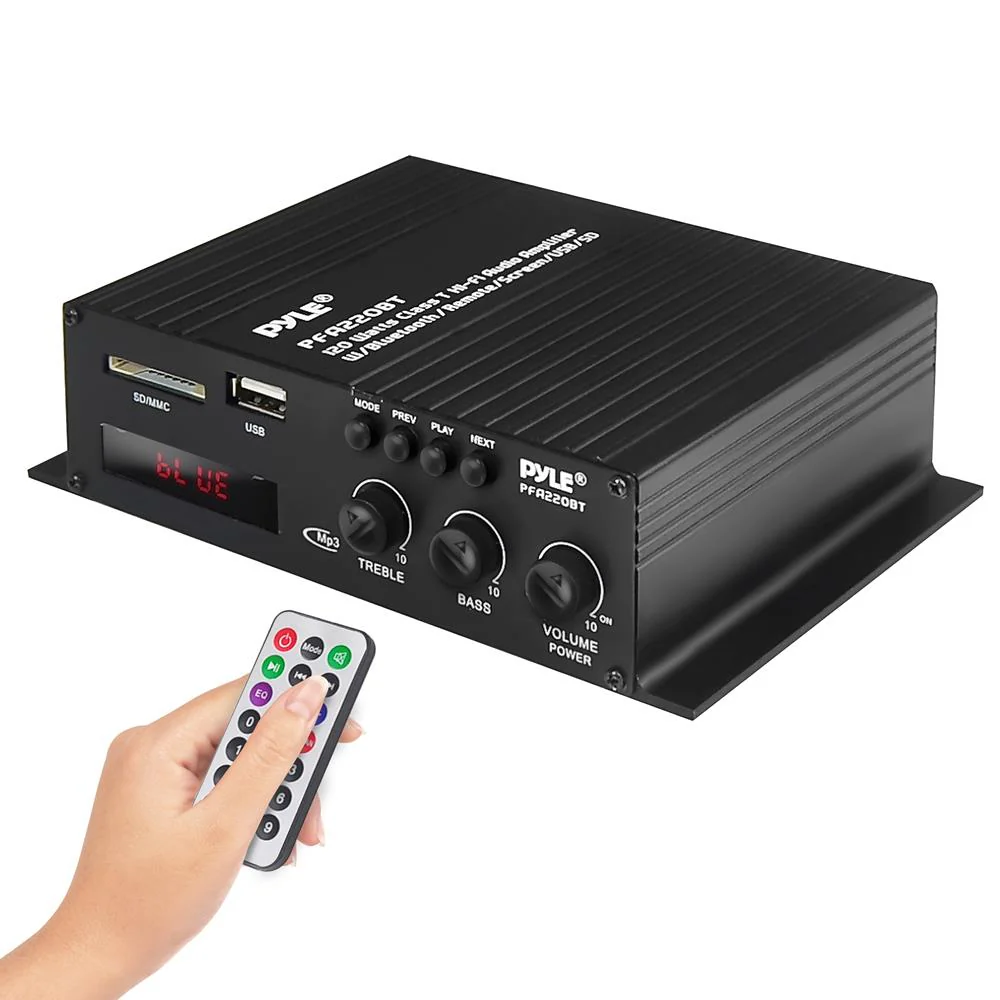

The Pyle Mini Blue Series stereo amplifier provides compact power up to 120 Watts (60 Watt x 2 @ 4 Ohm). Built-in Bluetooth technology allows you to instantly stream wireless audio from your favorite devices -- quickly and easily. This mini power amplifier also features USB flash and SD memory card readers with digital LCD display. Connect external devices using the RCA (L/R) or AUX (3.5mm) stereo input connector jacks -- and let the music play! It's compatible with virtually any audio or computerized device (works with iPhones, Androids, Smartphones, iPods, MP3 Players, iPads, Tablets, Computers, etc.). Additional features include USB charging port, built-in short circuit and power surge protection, master volume control, push-type speaker terminals and more. Enjoy compact and powerful wireless amplifier music streaming ability with the Pyle Mini Blue Series Bluetooth Amp (Model: PFA220BT).

DETAILS

Features:

• Compact and Powerful Mini Amplifier System
• Built-in Bluetooth for Wireless Audio Streaming
• MP3 Digital Audio File Playback
• SD Memory Card & USB Flash Drive Readers
• USB Port Doubles as Device Charge Port
• Digital LCD Display Panel with Touch Button Controls
• AUX (3.5mm) Input Connector Jack
• RCA Audio Inputs (L/R)
• Connect & Stream Audio from External Devices
• 1/4'' Microphone Input Jack
• Push-Type Speaker L/R Terminals
• Treble, Bass, Master Volume Adjustable
• Built-in Short, Overload and Overcurrent Protection
• Used for Home, Office & Mobile/Vehicle Applications

Wireless Bluetooth Connectivity:

• Compatible with All of Today’s Latest Devices
• Smartphones, Tablets, Computers, Laptops, etc.
• Hassle-Free Connection & Easy Setup
• Bluetooth Version: 2.1
• Bluetooth Network Name: ‘Pyle Speaker’
• Wireless Range: Up to 50’+ ft.

What’s in the Box:

• Compact Power Amplifier
• Remote Control
• AC Adaptor Cable
• 12V Mobile/Vehicle Cable

Technical Specs:

• Power Output: 120 Watt (60 Watt x 2 @ 4Ohm)
• Class-T Digital Amp Circuit Design
• Frequency Response: 20Hz - 20kHz
• Rate Level Audio Input: 350mv/47k Ω
• Rate Level Mic Input: 8mv/600 Ω
• Tone Control (Bass/Treble): +/- 8dB
• Master Channel Separation: >45dB
• Signal to Noise Ratio: >80dB
• Signal to Noise Master Channel: >71dB
• T.H.D.: <0.4%
• Power: DC 12 Volt /2A
• Maximum USB/SD Memory Support: 16 GB
• Dimensions: 10.5'' x 8.8'' x 2.8'' -inches

What's In The Box

Compact Power Amplifier

Remote Control

AC Adaptor Cable

12V Mobile/Vehicle Cable
