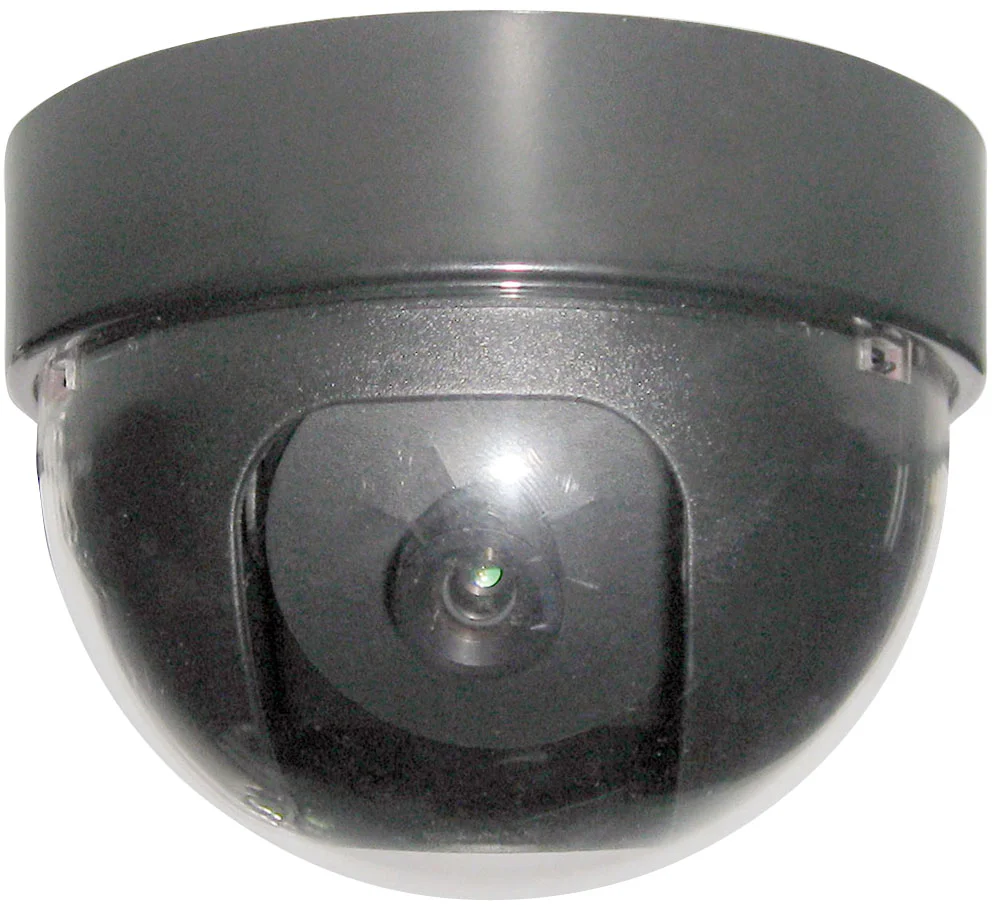

The PHCM31 security camera lets you keep an eye on your indoor business or home from anywhere. This is a hi-resolution camera: it's got a ¼' Sharp CCD for 420 lines of resolution with automatic white balance and a 1/60 second electronic shutter. It's easily ceiling-mountable. Cameras don't let you just monitor your property - they also deter crime. Keep your property safe and secure with Pyle.

DETAILS

For Indoor Use

Validity Pixel: NTSC: 510(H)*492(V)

Image Sensor: 1/4' Sharp CCD

Horizontal Definition: 420TV Line

Lens: 3.6mm Fix Lens

Minimum Illumination 0.5 Lux

AGC Auto

Synchronization Internal

Scanning Frequency (H) 15.625 KHz

Scanning Frequency (V) 50Hz

Backlight Compensation Auto

Electronic Shutter 1/50 (1/60) ~ 1/100.000sec

White Balance Auto

S/N Ratio >48db

Gamma Correction >0.45

Operation Temperature -10 ~ +50/+14 ~ +122

Operation Humidity 85%RH

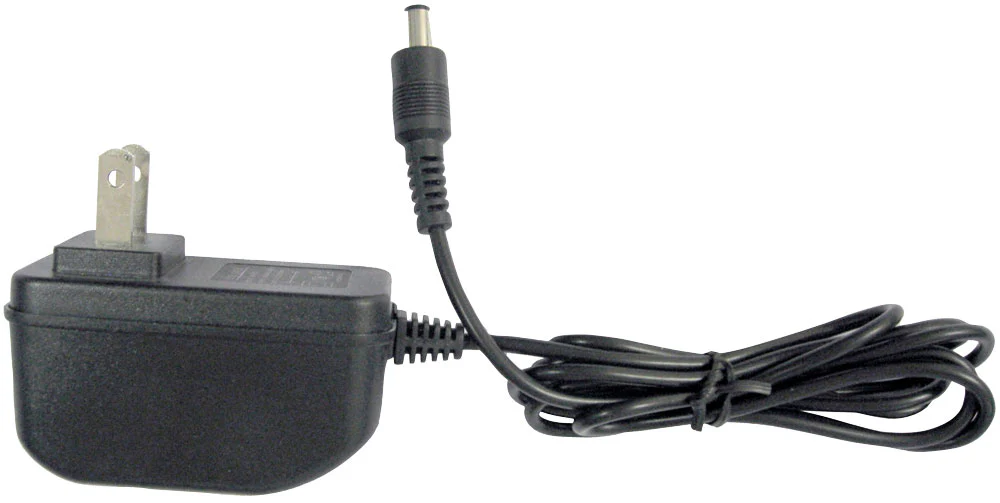

Power adapter DC 12V/500mA

Specification

The PHCM31 security camera lets you keep an eye on your indoor business or home from anywhere. This is a hi-resolution camera: it’s got a ¼” Sharp CCD for 420 lines of resolution with automatic white balance and a 1/60 second electronic shutter. It’s easily ceiling-mountable. Cameras don’t let you just monitor your property – they also deter crime. Keep your property safe and secure with Pyle.
