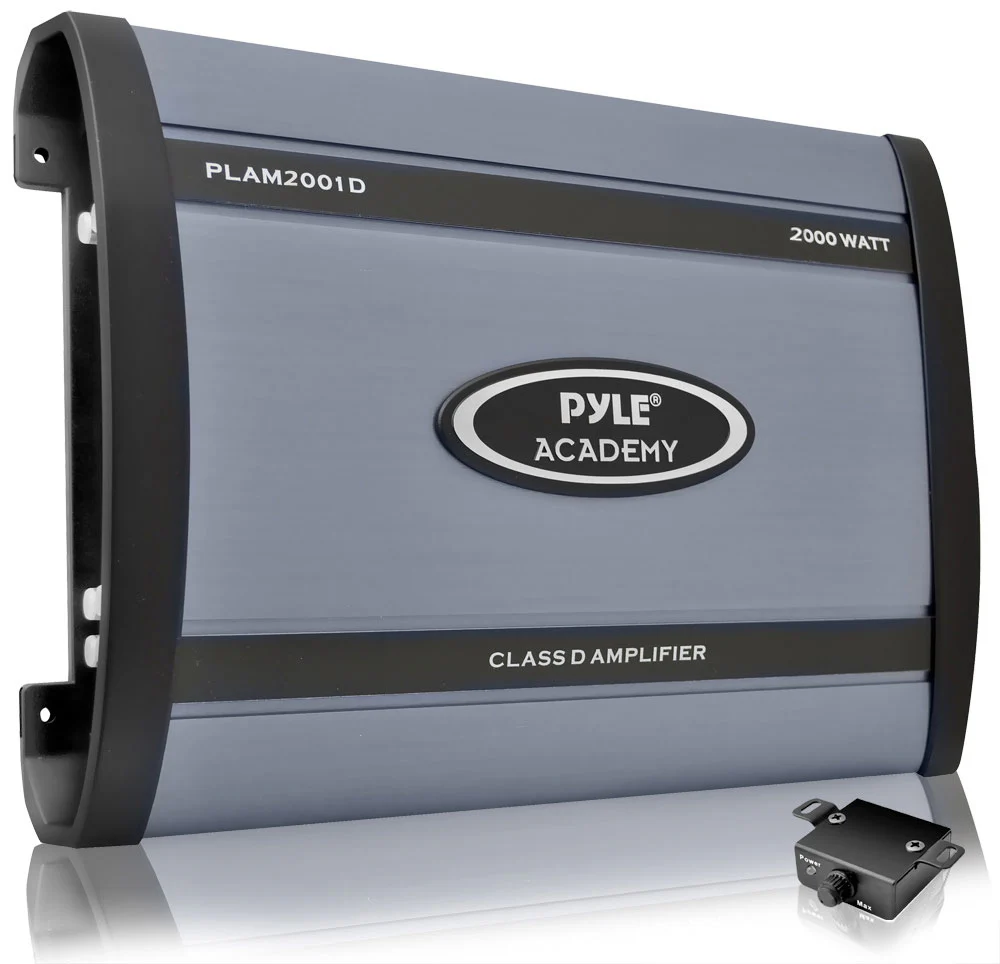

The Pyle Academy series is an affordable option to provide high-power, high-quality sound to your vehicle's speakers. Academy amplifiers are sturdy with amp heatsinks and accept both low level RCA inputs as well as high-level, low-impedance MOLEX inputs. And our D-series feature Class-D digital amplifiers, which greatly reduce power consumption and heat while increasing sound levels for an overall major boost in efficiency. The PLAM2001D is a 2000-watt class-D monoblock amplifier. It's equipped with variable gain control, a built-in variable subwoofer crossover, and a three-way configuration. Silver RCA inputs ensure your sound is insulated from the harsh electromagnetic environment. The MOSFET pulse width modulation power supply allows for a clean, distortion-free signal to your speakers. To keep both your car and the amplifier safe, this model is equipped with thermal, overload, and short circuit protection. Welcome to the academy - the Pyle Academy.

DETAILS

Class D Monoblock Power Amplifier

RMS Power @ 4 Ohms: 1x500 W

RMS Power @ 2 Ohms: 1x800 W

RMS Power @ 1.3 Ohms: 1x1200 W

Maximum Power Output 2000W Mono

Mono Block Sub woofer Amplifier

Frequency Response 15 Hz-150 Hz (±3dB)

Output Power @ 14.4v DC, 50Hz

1 Ohm Stable

MOSFET Power Supply

PWM ( Pulse-Width-Modulation ) System

Glass Epoxy PCB

Silver RCA Inputs

Custom Terminal Block for Speaker Connection

Thermal / Overload / Short Circuit Protection

Variable Subsonic Filter ( 15Hz - 55Hz 24dB / Octave)

Remote Bass Boost

Input Impedance: 10K Ohms

Soft Turn On/ Off

Advanced Protection Circuitry

S/N Ratio: >90dB

Dimensions:9.76''W x 2.28''H x 11.42''L

Specification

The Pyle Academy series is an affordable option to provide high-power, high-quality sound to your vehicle’s speakers. Academy amplifiers are sturdy with amp heatsinks and accept both low level RCA inputs as well as high-level, low-impedance MOLEX inputs. And our D-series feature Class-D digital amplifiers, which greatly reduce power consumption and heat while increasing sound levels for an overall major boost in efficiency. The PLAM2001D is a 2000-watt class-D monoblock amplifier. It’s equipped with variable gain control, a built-in variable subwoofer crossover, and a three-way configuration. Silver RCA inputs ensure your sound is insulated from the harsh electromagnetic environment. The MOSFET pulse width modulation power supply allows for a clean, distortion-free signal to your speakers. To keep both your car and the amplifier safe, this model is equipped with thermal, overload, and short circuit protection. Welcome to the academy – the Pyle Academy.

MANUALS & DOWNLOADS

PLAM2001D - Manuals
