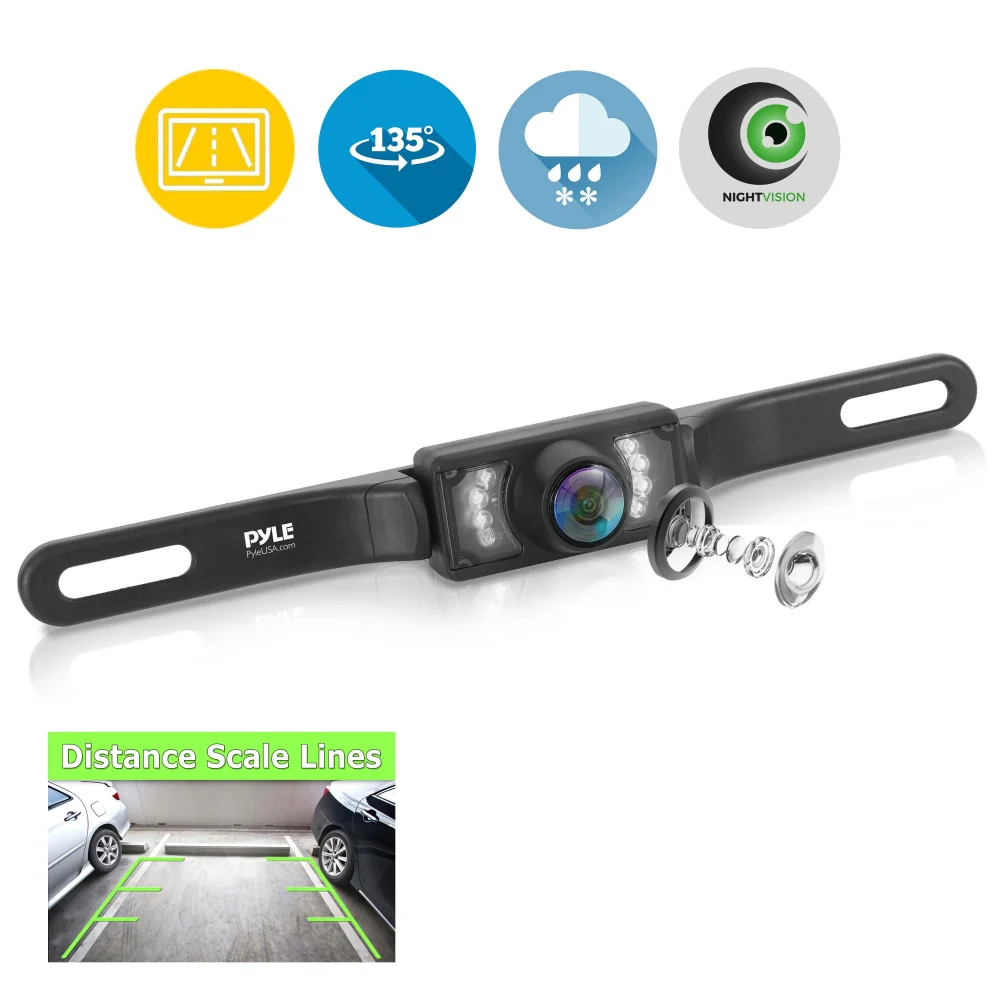

The Pyle PLCM10 rear view camera mounts easily above your license plate and outputs color video over RCA jack. The system is compatible with a wide range of display screens and monitors that enables you to see everything behind you in video. Perfect for backing into tight spots or moving in reverse when visibility is limited – the PLCM10 provides exceptional parking assistance. Additional features include night vision low light LEDs, which illuminate the area behind you in dark areas or at night. This small and durable camera housing is weatherproof and will provide an extra set of eyes when on the road. Drive smarter and safer with the PLCM10 rear view parking assist camera system.

DETAILS

Features:

• Color Camera Displays Distance Scale Lines
• Weatherproof Marine Grade Camera Housing
• Tilt View Adjustable Camera When Mounted
• Preferably Mounted in the Rear of Your Vehicle
• Slim Design for Convenient Mounting Above License Plates
• RCA Video Connector for a Wide Range of Display Compatibility
• Wide Angle Camera Lens
• Automatic White Balance Picture Output

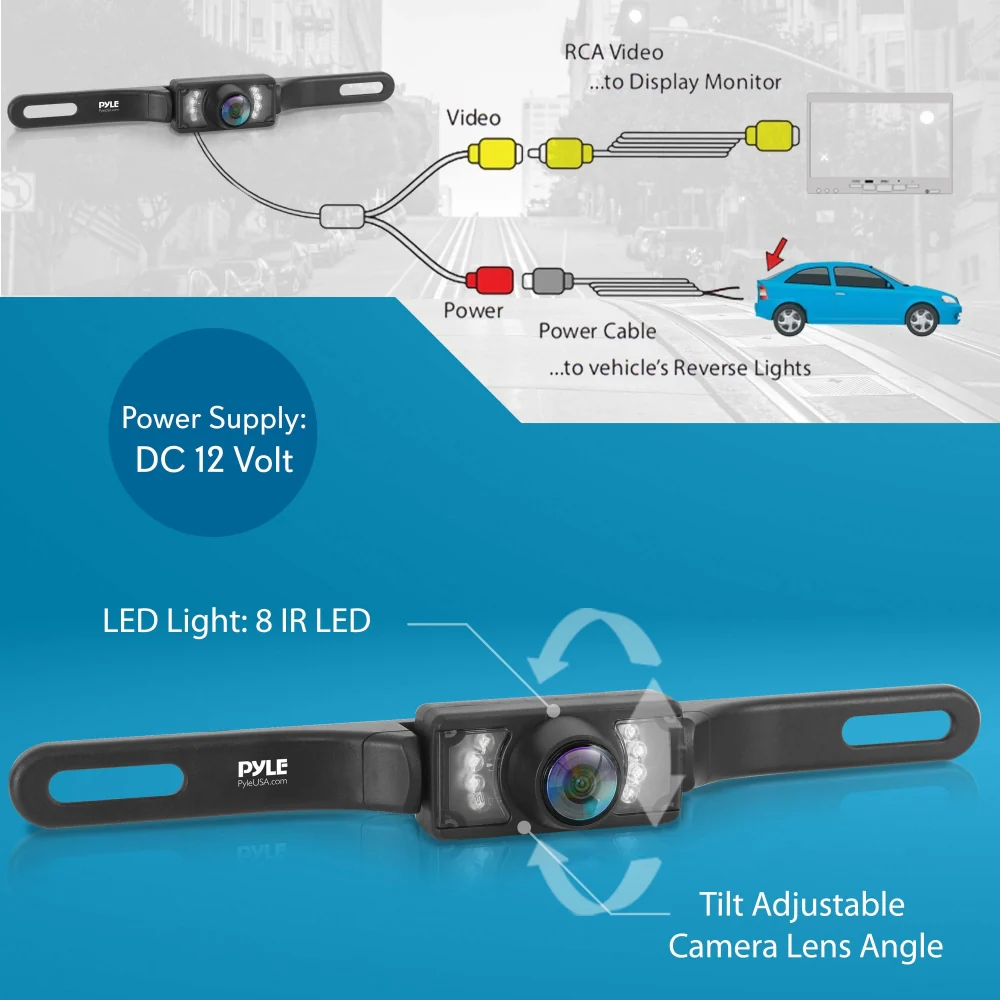

• Includes Camera, Power and Video Connection Cables

Technical Specs:

• Power Supply: DC 12 Volt
• Effective Pixels: 656 x 492 Pixels
• Output Standard: PAL/NTSC
• Resolution: 420 TV Lines
• Built in distance scale lines
• 7-LED IR Vision Sensors

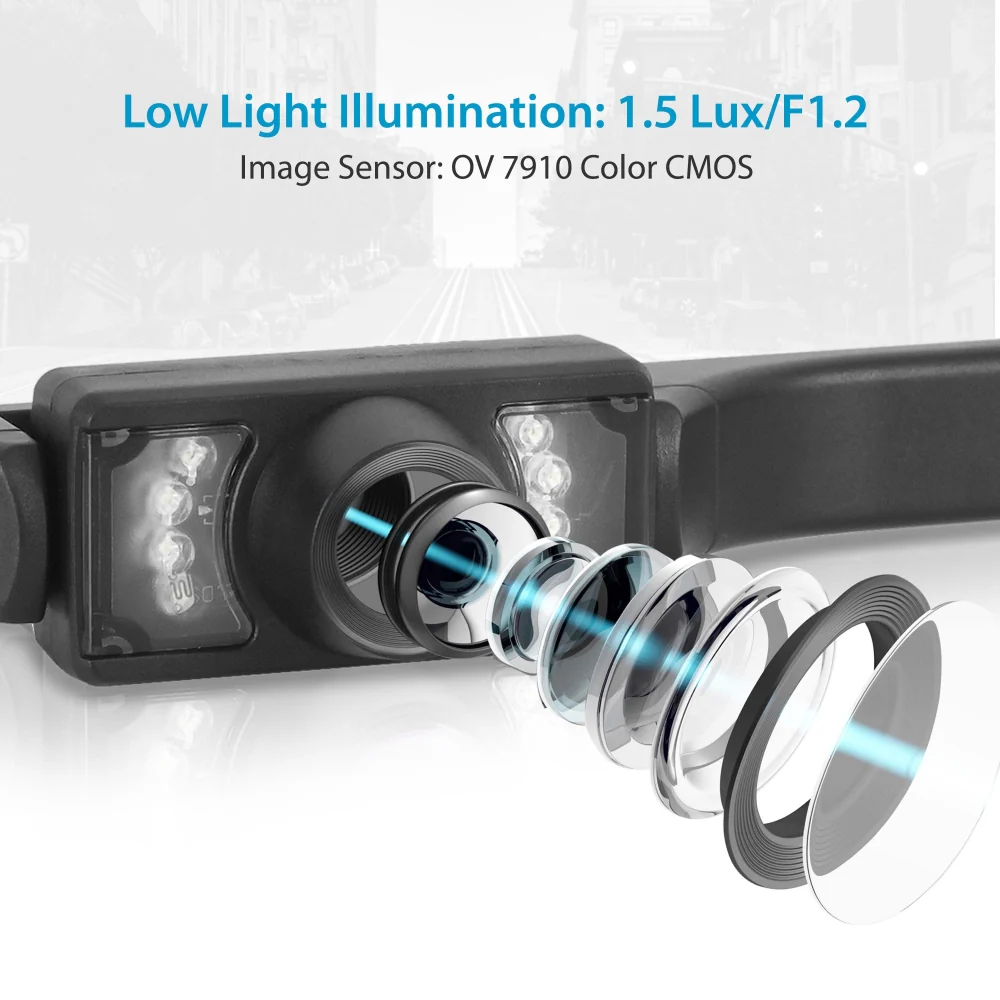

• Image Sensor: OV 7910 Color CMOS
• Lens: 6mm, 135° Viewing Angle
• Low Light Illumination: 1.5 Lux/F1.2
• Video Output: RCA 1.0 Vpp
• Composite Video @ 75 Ohm
• Temperature: -10 - 50° Celsius
• Camera Dimensions (H x W x D): 1.3'' x 8.0'' x 1.26''

MANUALS & DOWNLOADS

PLCM10 - Manuals
