DETAILS

Features:

• 1080p HD Quality
• All View Angle IPS TFT LCD Panel
• 2.4G Digital Wireless Transmit Solution
• Wireless Transmit Range at About 300M
• Camera With Microphone for Sound Wireless Transmit
• Monitor Have Sound Mute Operation Button
• Camera With License Plate, Easy Operation & Installation on Vehicles
• Single Cam View: Displays Picture from (1) Camera

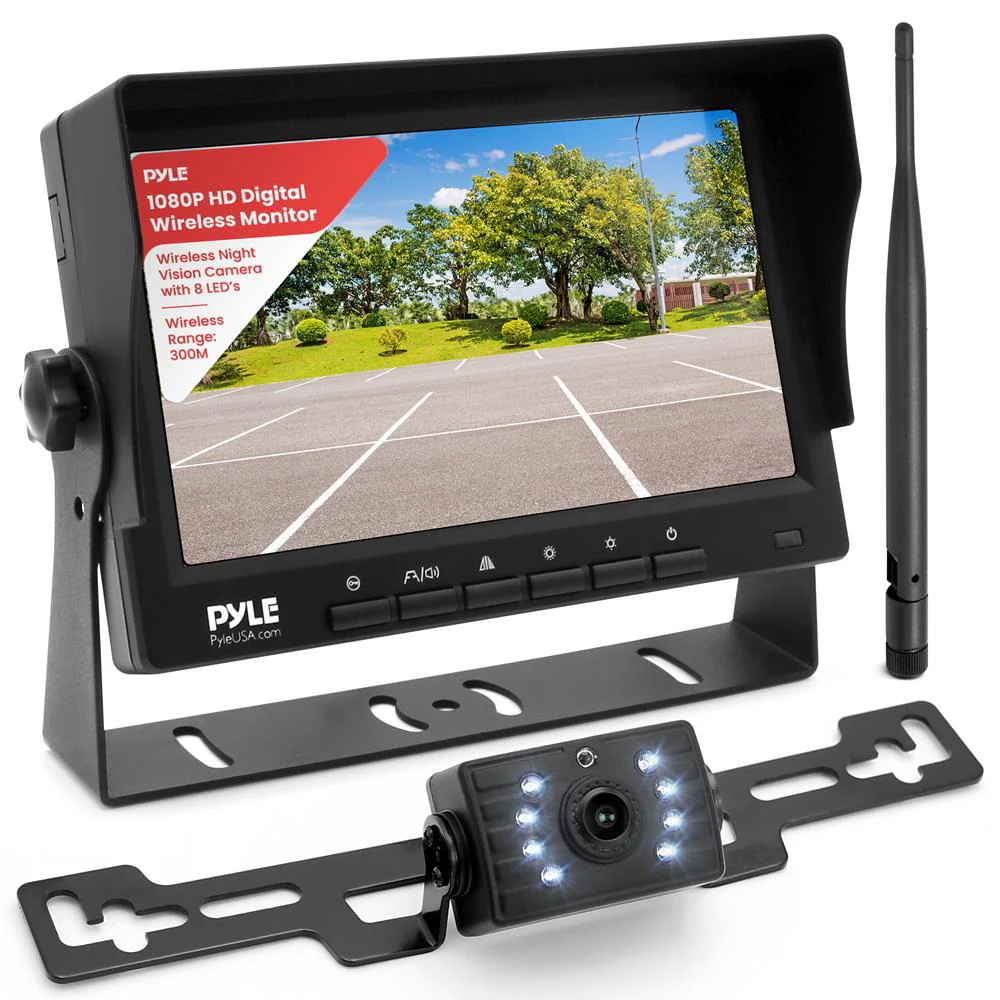

What's in the Box:

• 7'' Display Monitor

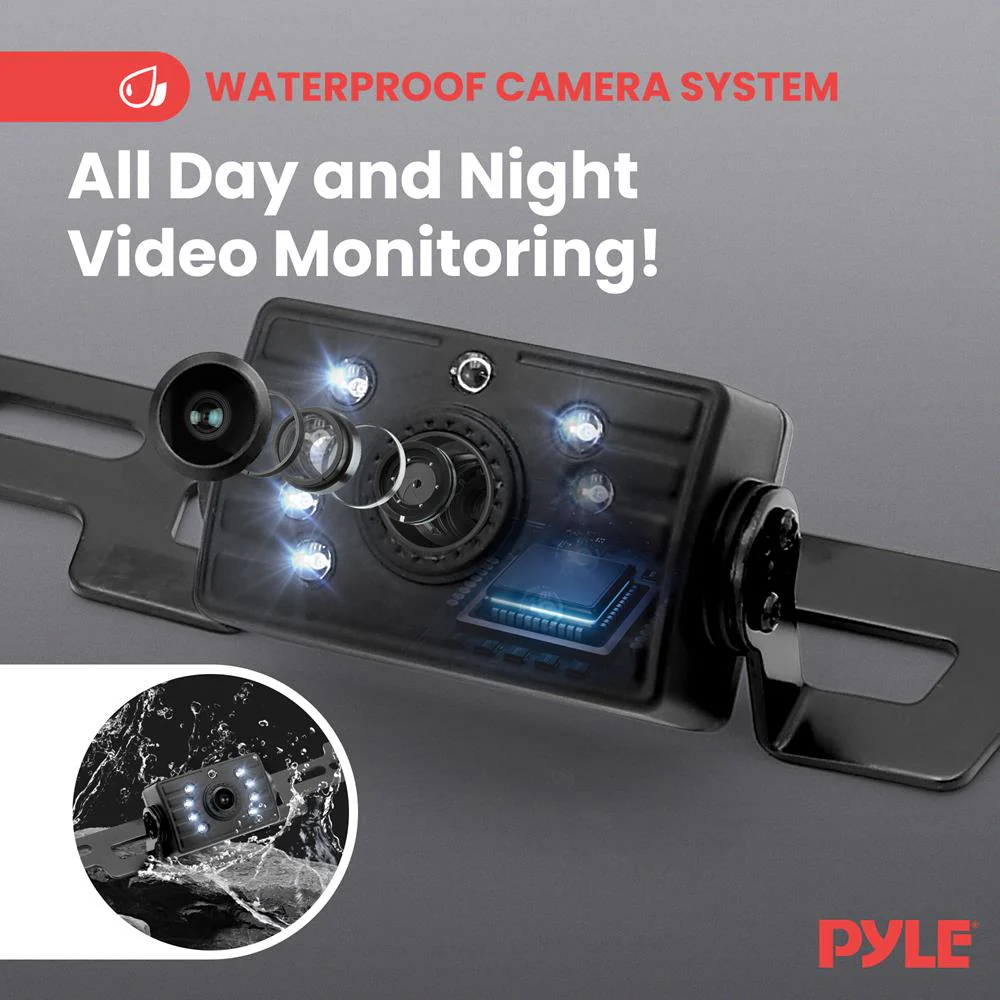

• Waterproof Camera
• Power & Wiring Harness
• Sun Visor Monitor Hood

Monitor Specs:

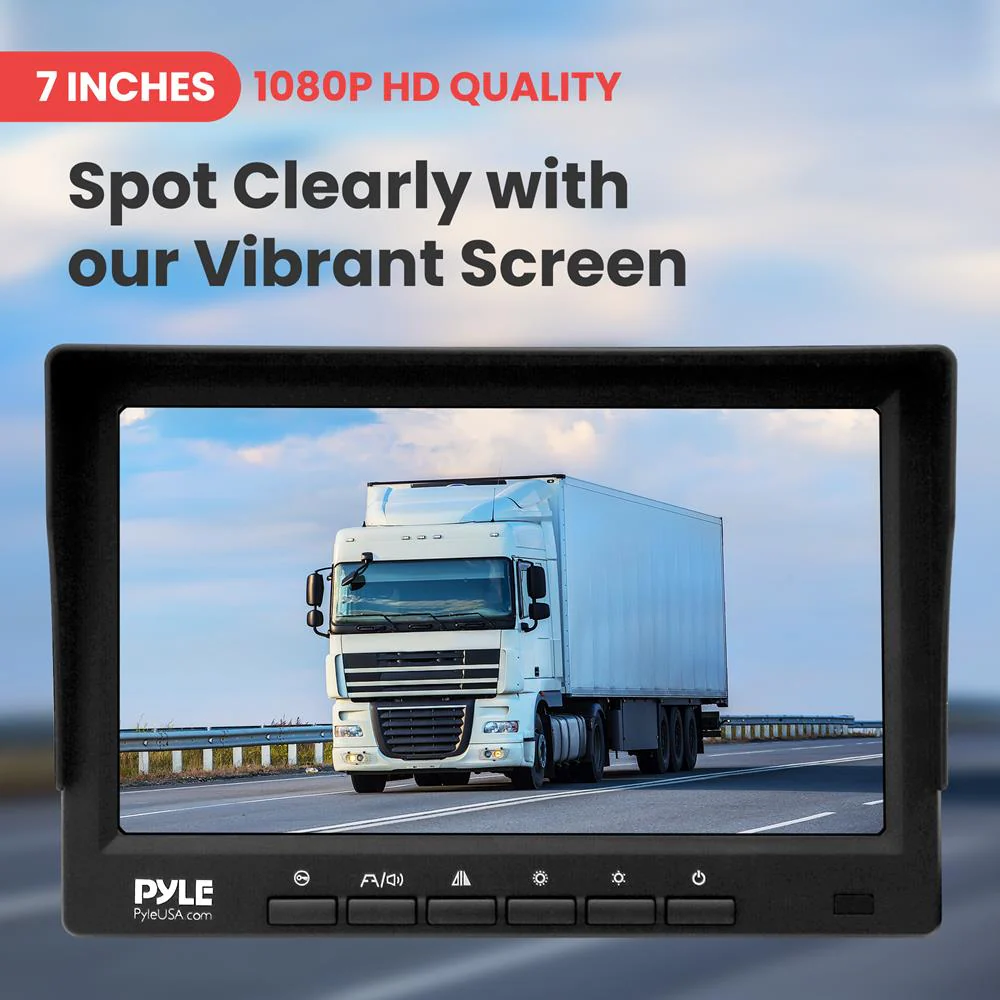

• Panel: 7-inch Digital Panel Screen (IPS panel, Full Angle of View)
• Resolution: 800*480
• Power: DC12V & DC24V(MAX. to 36V)
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30??80?
• Working temperature: -20? to 70?
• With Sound control button
• With Speaker Built-in
• Monitor Wireless Receiver spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17¬±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Monitor Dimensions: 7'' x 2.9'' x 4.7'' -inches

Camera Specs:

• Image Sensor:1/3 sensor
• Effective Pixels: 720x576 pixel
• System: AHD
• Night vision visible distance: about 3 meters

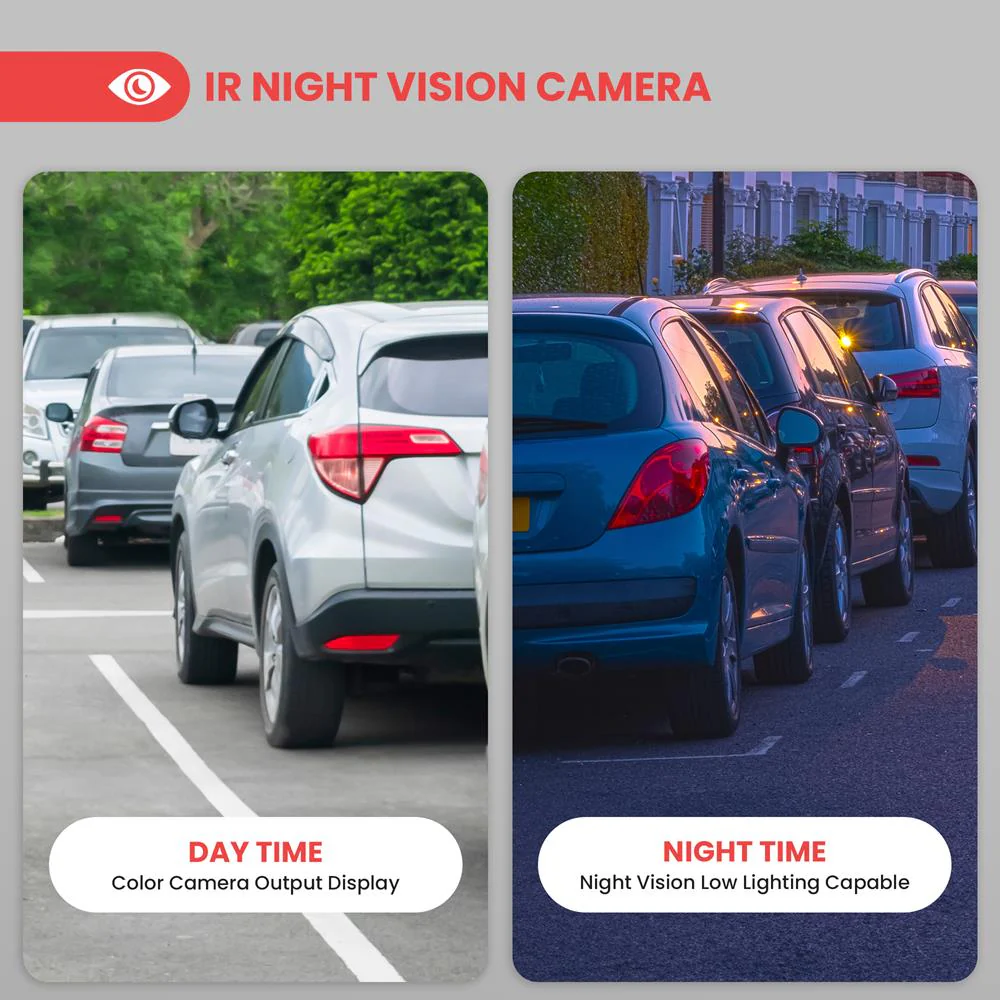

• IR Night Vision: with IR
• Night vision visible distance: about 3 meters
• Power: DC 12V & 24V
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30??80?
• Working temperature: -20? to 70?
• Sound: With Microphone Built-in
• Camera Wireless Transmit spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17¬±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Camera Dimensions: 2.6'' x 1.5'' x 1.4'' -inches
• Camera with Bracket Dimensions: 9.8'' x 1.7'' x 1.4'' -inches
