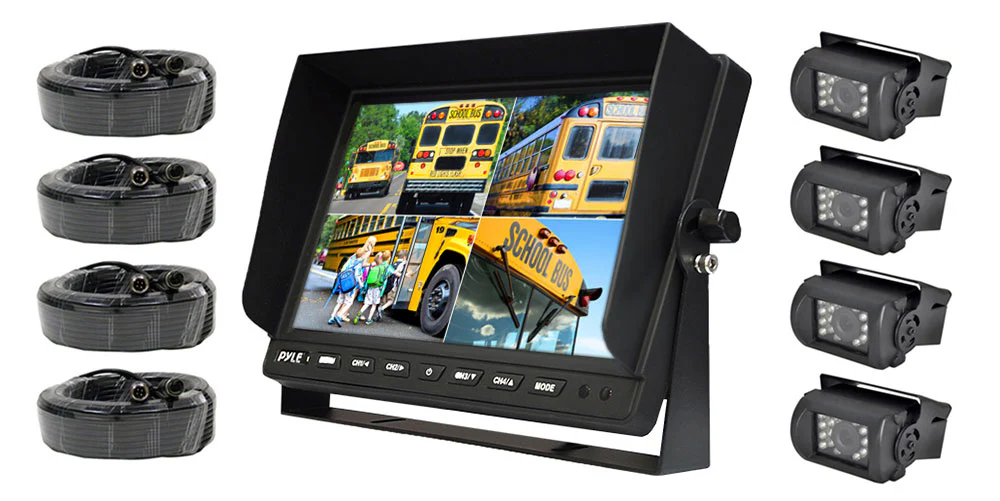

The PLCMTR Camera and Monitor System comes equipped with everything you need to add an extra set of eyes when driving and parking. Comes equipped with (4) LED Lighted IR Night Vision Illumination Cameras, 10.1 Inch color LCD Monitor, 50 foot connection cables, remote control, wiring harness and universal monitor mount. This system is designed for your Bus, Trailer, Van, Truck, Big Rig or other vehicle with 12-24 Volt Systems. Additional features include anti-glare monitor sun shade, widescreen video display, auto image adjustment and more. Drive safer, get into those tight parking spots and keep your eyes on the road with the Pyle PLCMTR Camera Systems.

DETAILS

System Features:

• Multi-Camera & Monitor Video System
• View All (4) Cameras On-Screen at the Same Time
• Includes All Necessary Cables & Wiring

Video Display Viewing Modes

• Single Full View: 1 picture - from one camera input source
• Split Dual View: 2 picture - from two camera input sources
• Split Quad View: 4 picture - from four camera input sources

Monitor:

• 10.1'' TFT/LCD Active Matrix Video Monitor
• Built-in Quad Control Box Screen Function
• Supports up to (4) Video Camera Inputs (V1/V2/V3/V4)
• Selectable Viewing Modes: Single Full View / Split Dual Video View / Quad Four Source View
• Reverse Image (Backup Camera) Ability
• Aspect Ratio: 16:9 Widescreen Format
• PAL/NTSC Video Format Compatible
• Signal Sense: Auto Power-On Reversing
• High Resolution: 1024 x 800 Pixels
• Universal Stand & Anti-Glare Sun Visor
• 4-Pin Video Connectors
• Power Requirement: DC 12-24V
• Operating Temperature: -20 to +145 F
• Dimensions (W x H x D): 11.22'' x 7.20'' x 2.91''

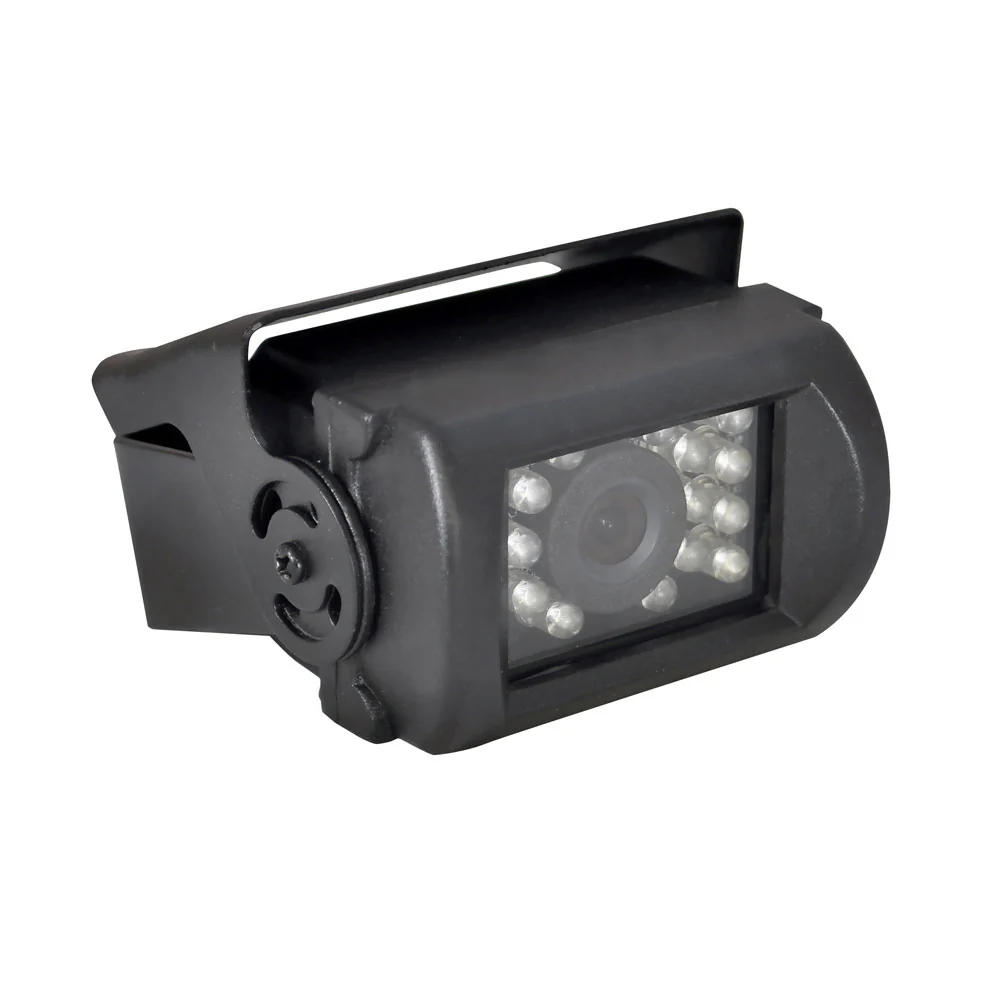

Camera:

• Includes (4) Mountable Cameras
• Weatherproof Rearview Camera System
• LED IR Night Vision Illumination
• Marine Grade IP68 Rating
• Min Illumination: 0.2Lux
• Image Sensor: Color CMD
• Video System: PAL/NTSC Auto Switching
• Effective Pixels: 580 x 540
• Resolution: 420 Lines
• Lens Angle: 170 Degree
• Auto Image Adjustment
• Video Output 1.0V pp-75 Ohm
• Designed for Car/Truck use 12-24 Volt Systems
• Camera Dimensions (W x H x D): 3.18'' x 2.95'' x 2.17'' -Each

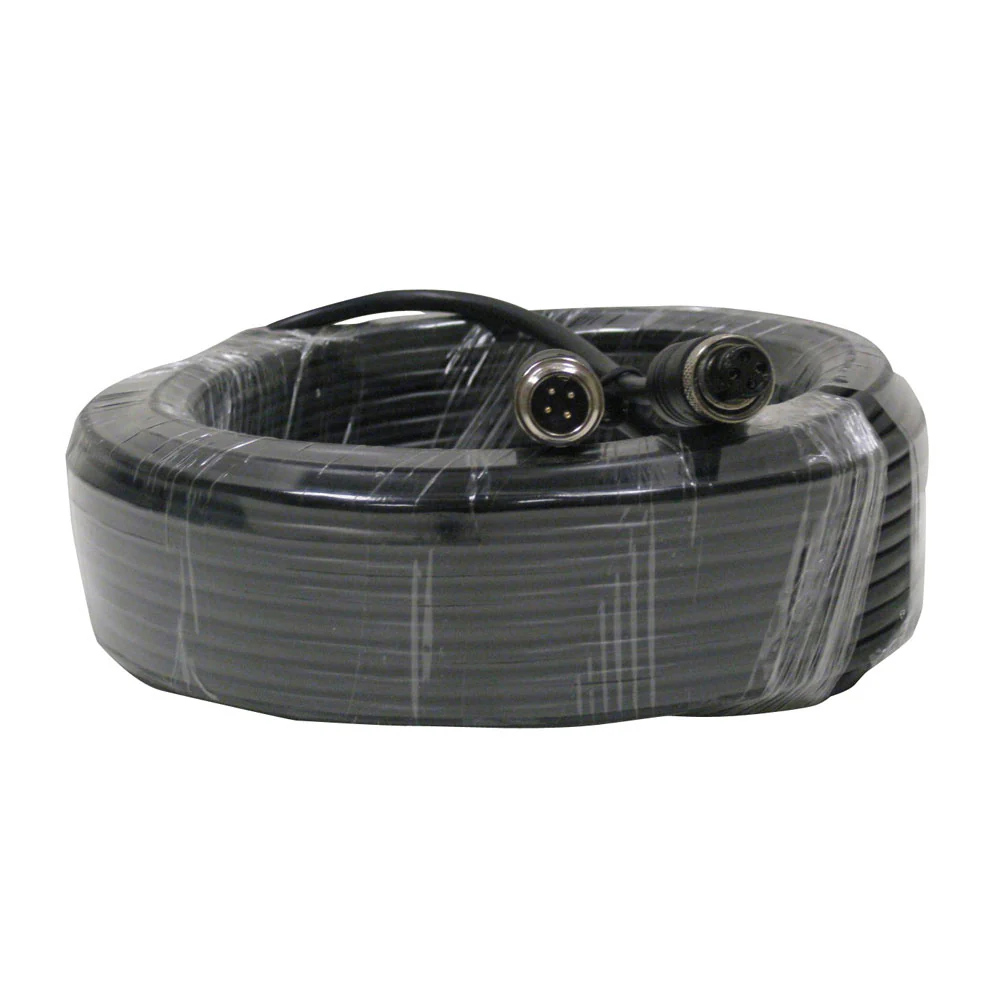

• Includes (4) 4-pin 50' Foot (15 Meter) Communication Cables x 4
