The Pyle 2.4Ghz Vehicle Camera & Video Monitor System with Wireless Video Transmission, Waterproof Rated Cam, Night Vision, 7’’ -inch Display (for Bus, Truck, Trailer, Van) - Camera & Monitor Vehicle Safety Video System - Digital Wireless 2.4Ghz Signal Transmitter & Receiver - Ability to Connect up to 4 Cameras (2 Wireless 2 Wired) - Designed for Car/Truck use 12/24 Volt Systems - Includes All Necessary Cables & Wiring - What’s in the Box: - Monitor with Built-in Digital wireless Receiver - Camera with Built-in Digital Wireless Transmitter - Power & Wiring Harness - Camera DC Power Cable - (2) 2.4G Wireless Antennas - Camera: - Includes (1) Rearview Camera - Digital Wireless Transmitter Built-into Camera - Wireless Range: Over 300' Feet - Weatherproof Marine Grade Construction - IP68 Rating Water & Fog Resistant.

DETAILS

System Features:

• Camera & Monitor Vehicle Safety Video System
• Digital Wireless 2.4Ghz Signal Transmitter & Receiver
• Ability to Connect up to 4 Cameras (2 Wireless 2 Wired)
• Designed for Car/Truck use 12/24 Volt Systems
• Includes All Necessary Cables & Wiring

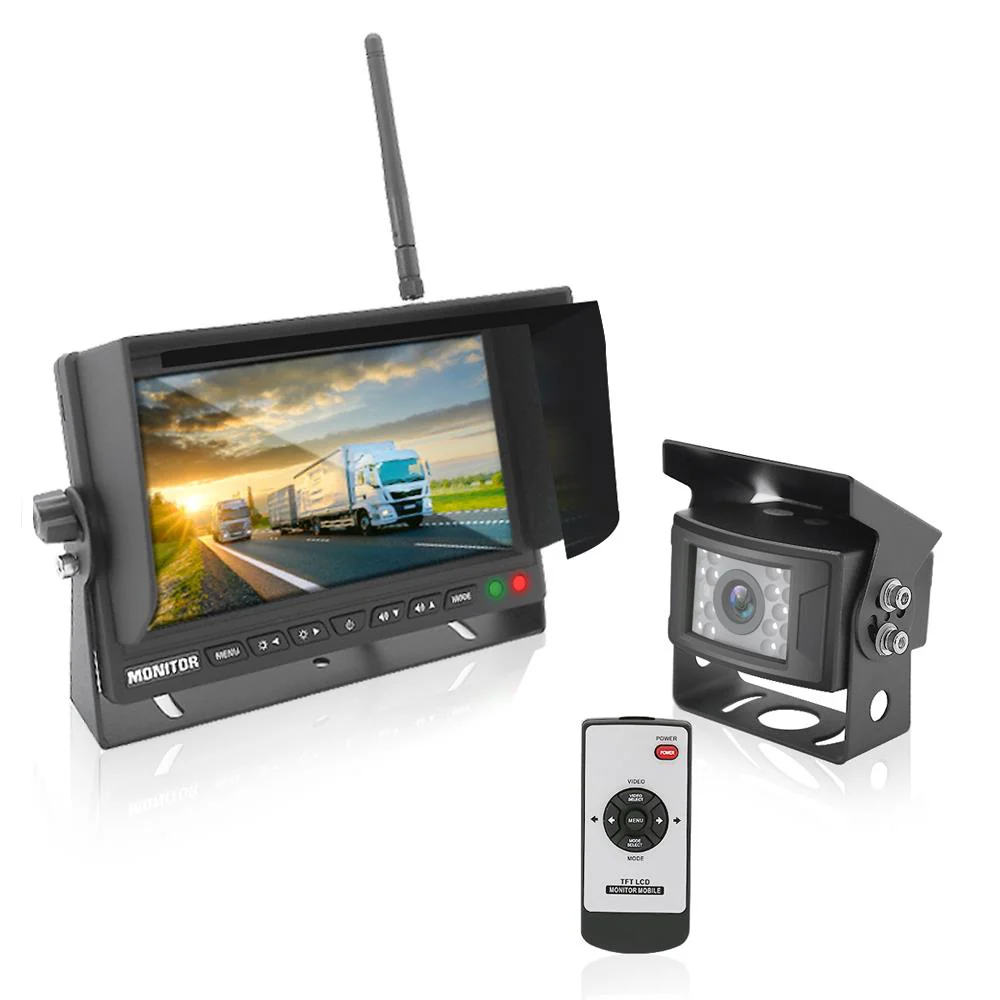

What’s in the Box:

• Monitor with Built-in Digital wireless Receiver
• Camera with Built-in Digital Wireless Transmitter
• Power & Wiring Harness
• Camera DC Power Cable
• (2) 2.4G Wireless Antennas

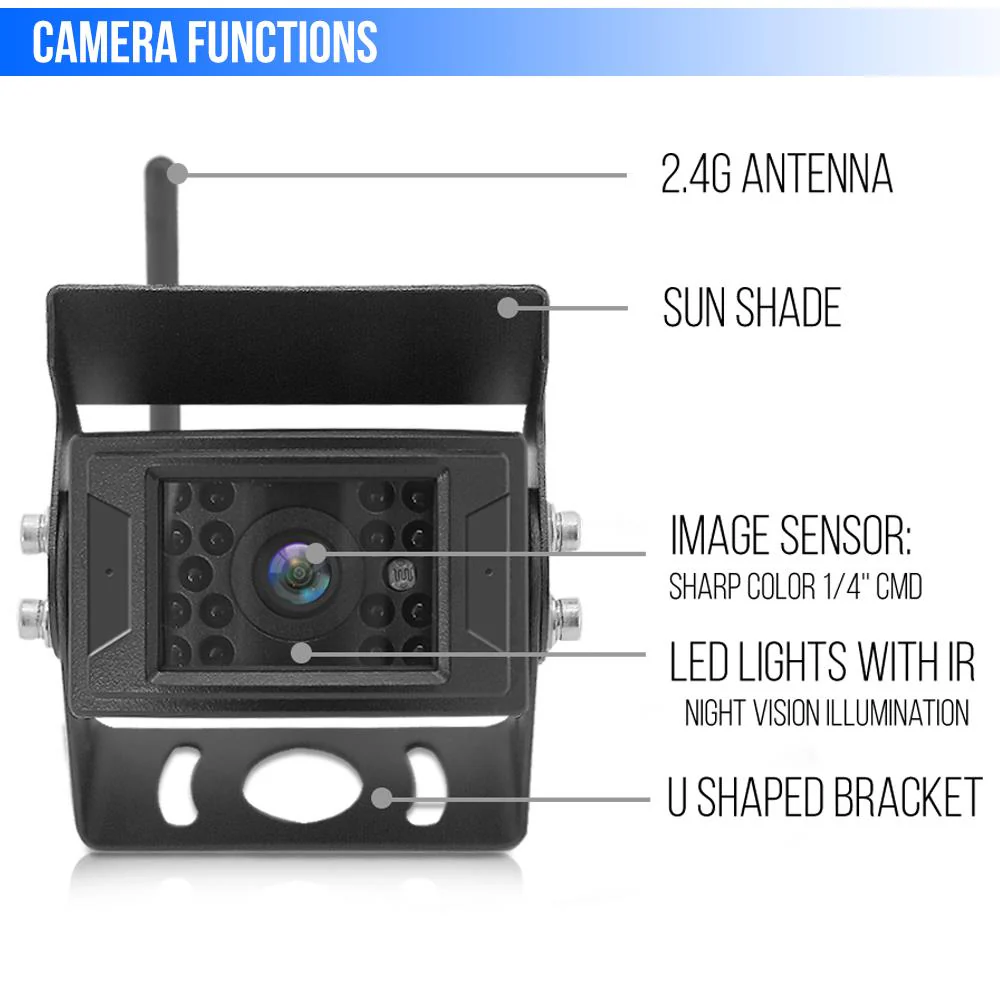

Camera:

• Includes (1) Rearview Camera
• Digital Wireless Transmitter Built-into Camera
• Wireless Range: Over 300' Feet
• Weatherproof Marine Grade Construction
• IP68 Rating Water & Fog Resistant
• LED Lights with IR Night Vision Illumination
• Low Lux Light Performance
• Image Sensor: SHARP Color 1/4'' CMD
• System: PAL/NTSC Auto Switching
• Video Output 1.0V pp-75 Ohm

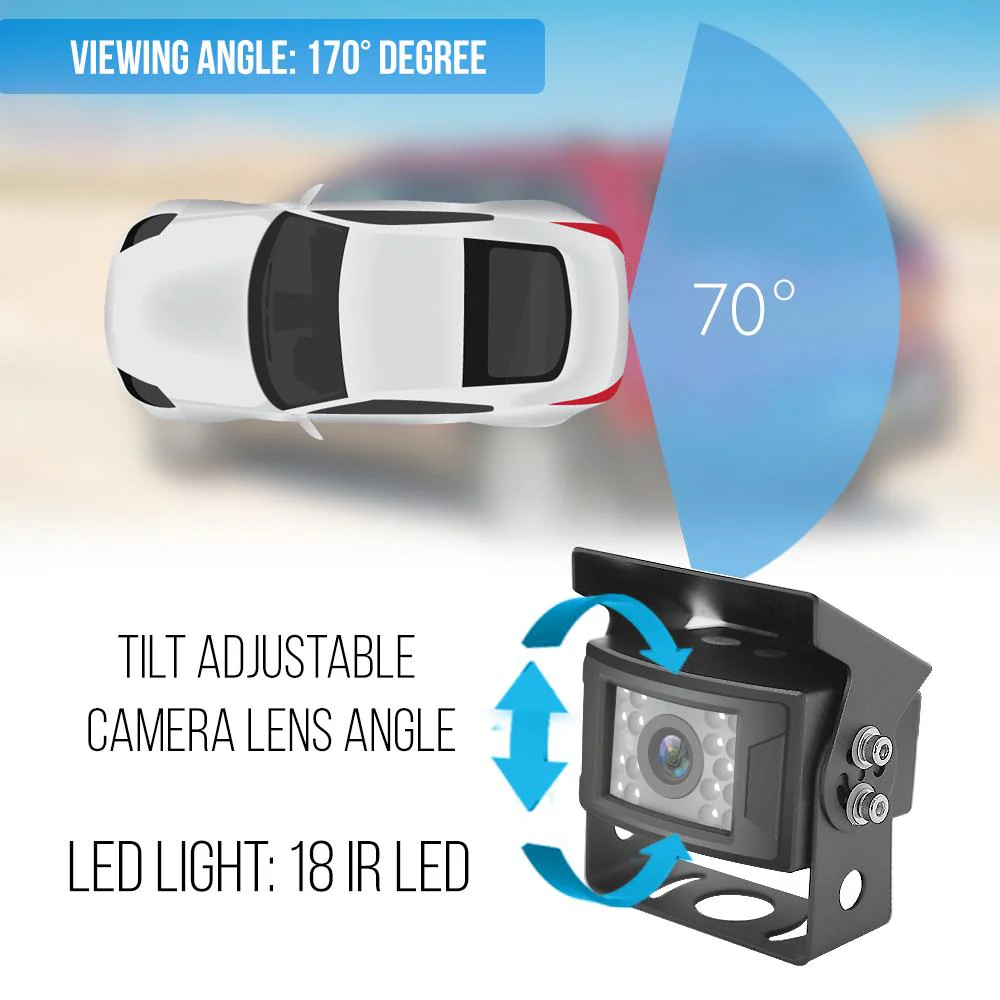

• Lens Angle: 170 Degree
• Min. Illumination: 0.2 Lux
• Auto Image Adjustment
• Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17"

Monitor:

• 7'' -inch LCD Video Display Monitor
• Digital Wireless Receiver Built-into Display
• Aspect Ratio: 16:9 Widescreen
• System: PAL/NTSC Auto Switching
• Anti-Glare Sun Shade
• Universal Stand Mount
• Resolution: 800 x 480 Pixels
• Brightness: 350 cd/m2

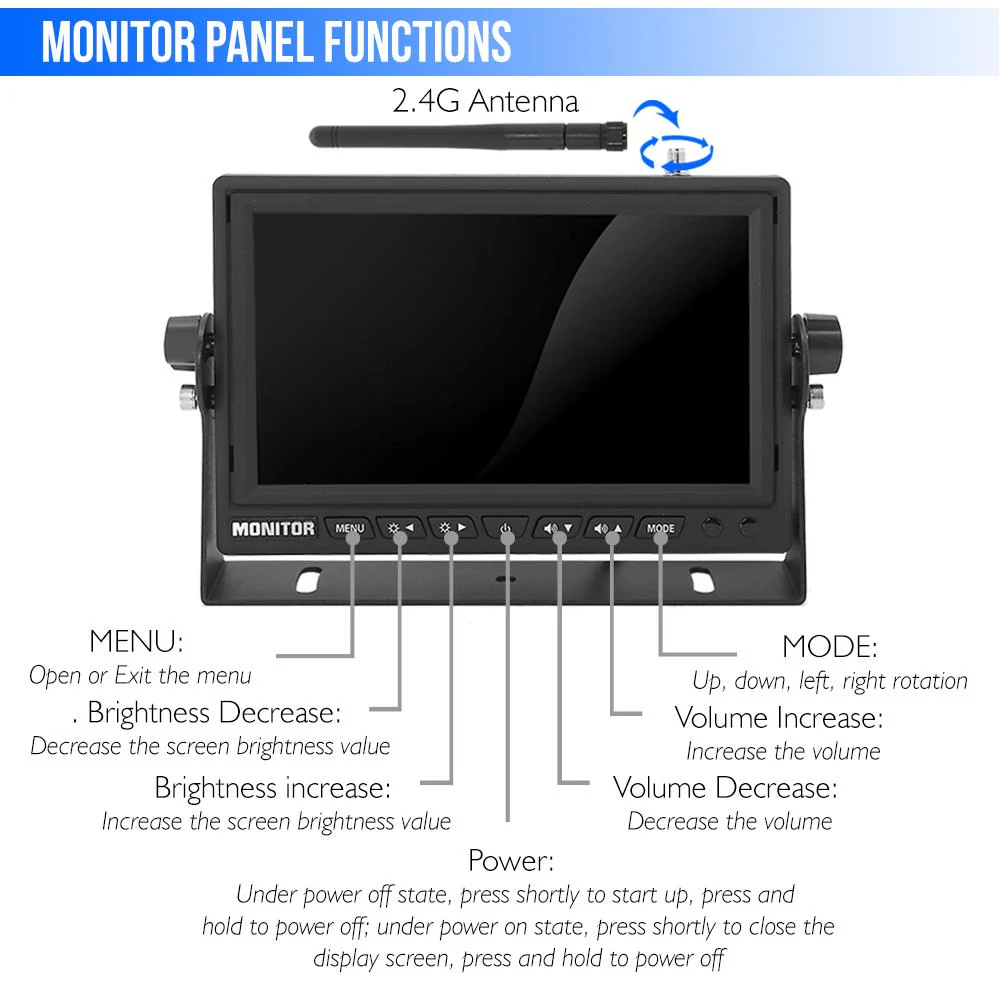

• OSD Menu with Front Panel Button Controls
• Brightness Color Contrast Adjustable
• 4-Pin Video System Connectivity Jacks
• DC Reverse 12-24 Volt Trigger with Auto Activation
• Dimensions: (L x W x H): 7.1'' x 2.9'' x 4.7''

What's In The Box

Monitor with Built-in Digital wireless Receiver

Camera with Built-in Digital Wireless Transmitter

Power & Wiring Harness

Camera DC Power Cable

(2) 2.4G Wireless Antennas

MANUALS & DOWNLOADS

PLCMTR78WIR - Manuals
