DETAILS

Features:

• All View Angle IPS TFT LCD Panel
• 2.4G Digital Wireless Transmit Solution
• Wireless Transmit Range at About 11,811’’ -inches
• Camera with Built-in Microphone
• Transmits Audio Sound to the Monitor
• Monitor Have Sound Mute Operation Button
• Easy Operation & Installation on Vehicles
• Includes Sound Control Button
• Built-in Speaker and Microphone
• Ability to Connect Only One Wireless Camera
• Designed for Car/Truck use 12/24 Volt Systems

What’s In The Box:

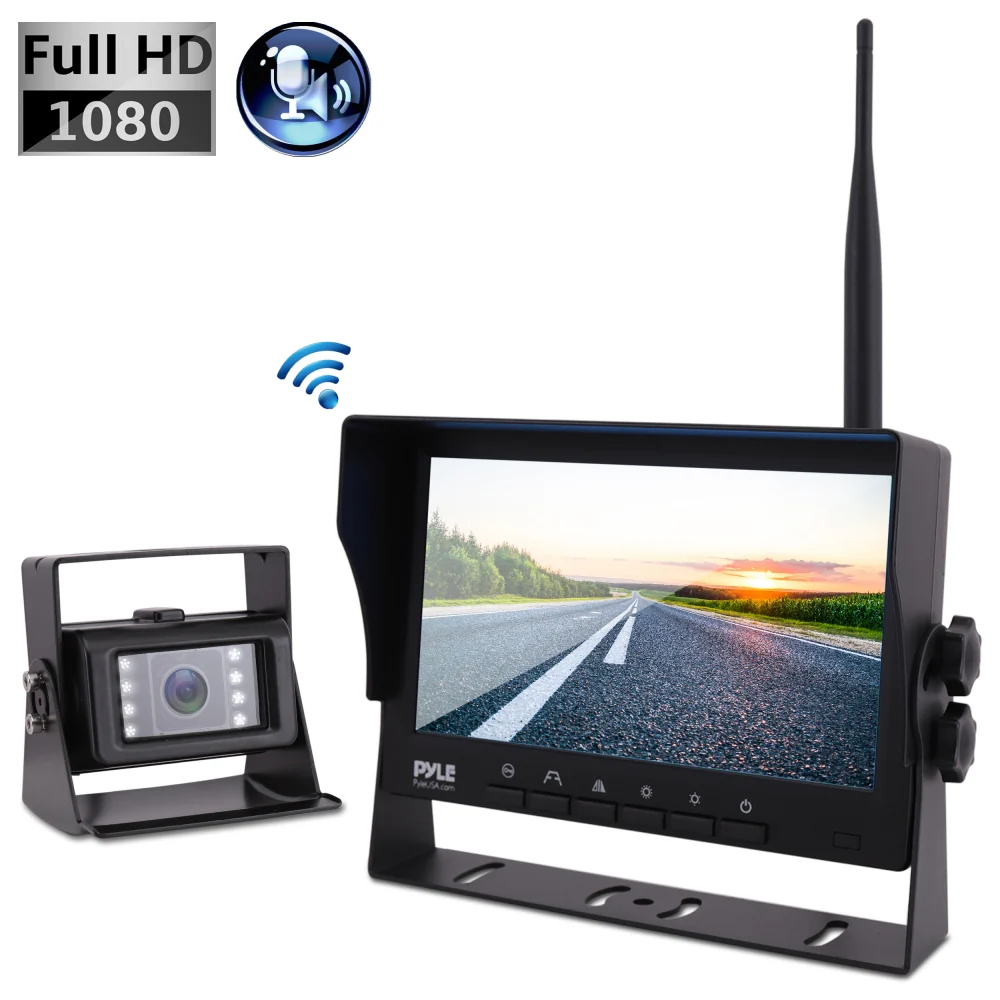

• Monitor with Built-in Receiver
• Camera with Built-in Transmitter
• Power & Wiring Harness
• Camera DC Power Cable
• (2) 2.4G Wireless Antennas

Monitor Specs:

• 1080p HD Quality

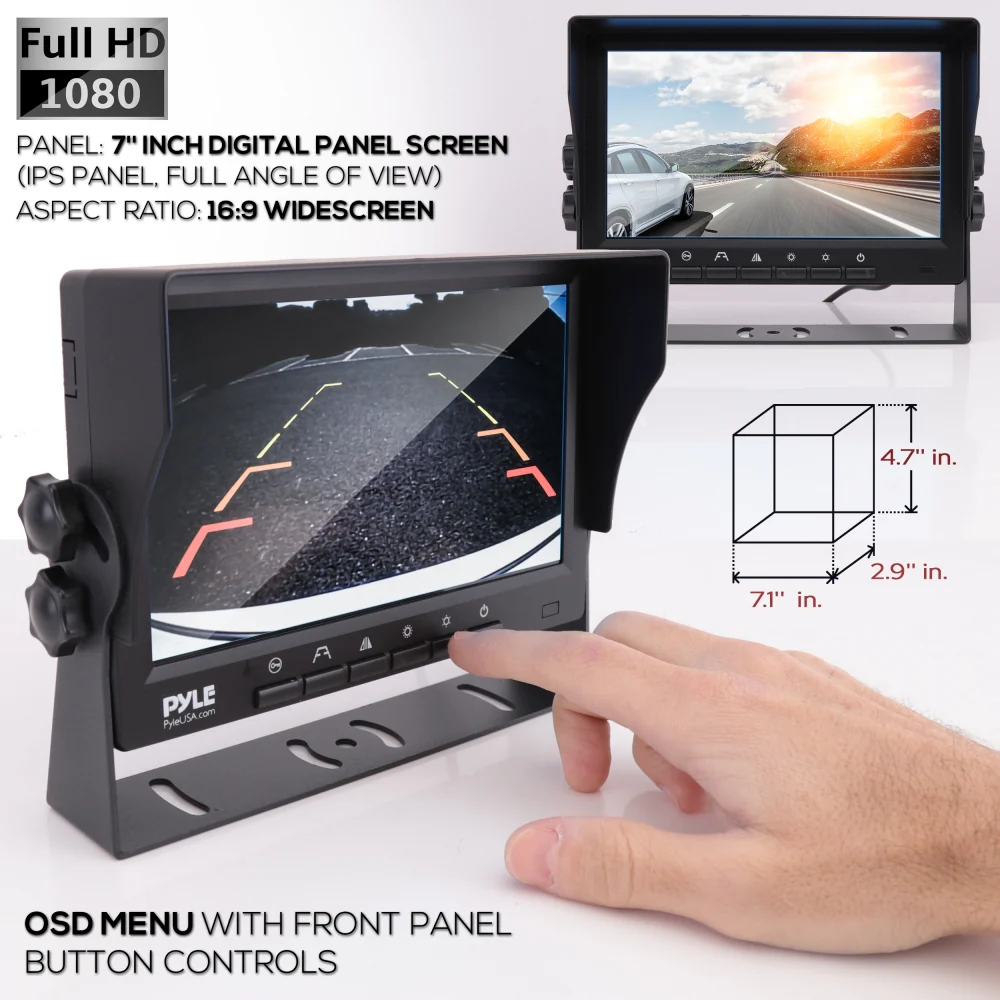

• Panel: 7'' -inch Digital Panel Screen (IPS panel, Full Angle of View)
• Aspect Ratio: 16:9 Widescreen
• System: PAL/NTSC Auto-Switching

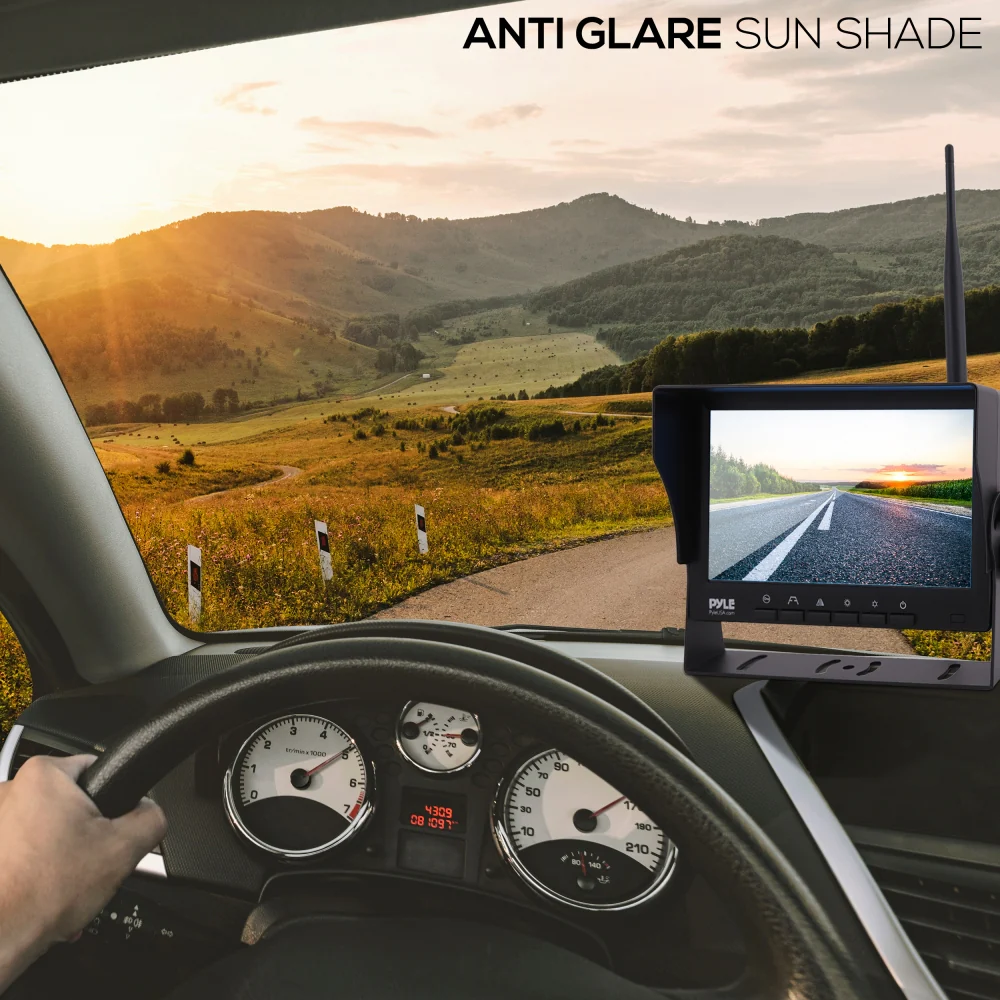

• Anti Glare Sun Shade
• Universal Stand Mount
• Resolution: 800 x 480 Pixels
• Power: DC12V & DC24V(Max to DC36V)
• Power Consumption: Less than 5W
• Max.Current: Less 450mAh
• Storage temperature: -30??80?
• Working temperature: -20? to 70?
• Brightness: 500 cd/m2
• OSD Menu with Front Panel Button Controls
• Brightness, Color, Contrast Adjustable
• Dimensions: (L x W x H): 7.1'' x 2.9'' x 4.7'' -inches

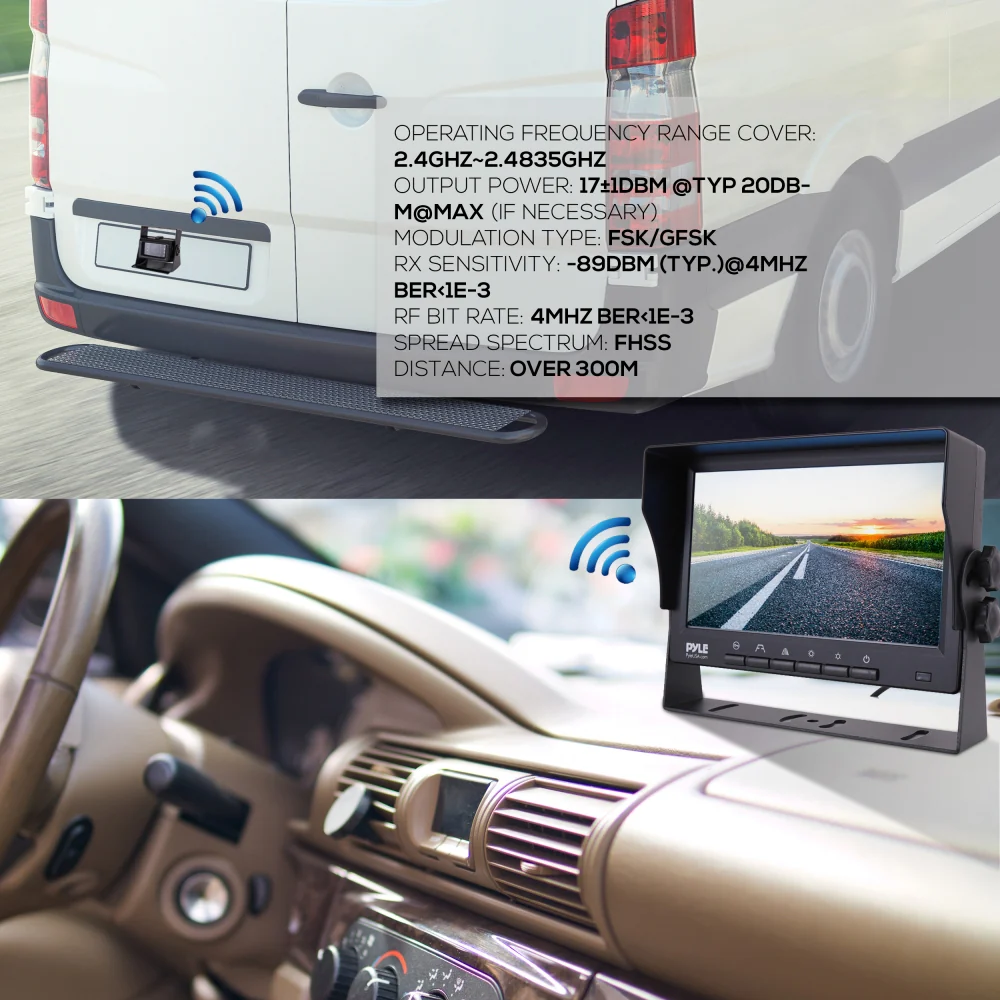

Monitor Wireless Receiver Specs:

• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 300M

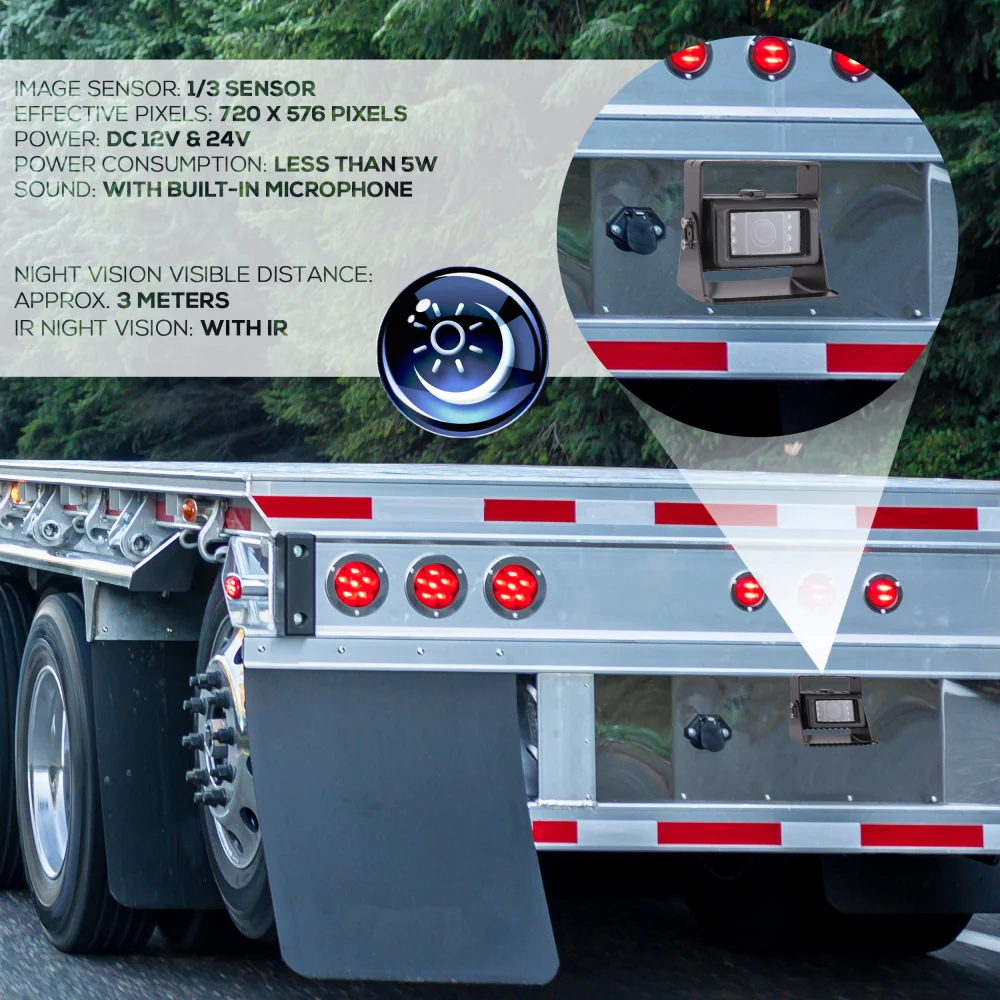

Camera Specs:

• Image Sensor: 1/3 sensor
• Effective Pixels: 720 x 576 pixels
• System: AHD
• Night Vision Visible Distance: About 3 meters
• IR Night Vision: with IR
• Power: DC 12V & 24V
• Power Consumption: Less than 5W
• Max.Current: Less 450mAh
• Storage temperature: -30??80?
• Working temperature: -20? to 70?
• Sound: With Built-in Microphone
• Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17" -inches

Camera Wireless Transmit Specs:

• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 300M
