The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard, boat or even by the pool! Additional features include MOSFET power supplies, built-in electronic circuitry protection, heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200, PLMRA400, PLMRA420, PLMRA620, PLMRA820).

DETAILS

Bridgeable Audio Amplifier

2-Channel System

Dual MOSFET Power Supply

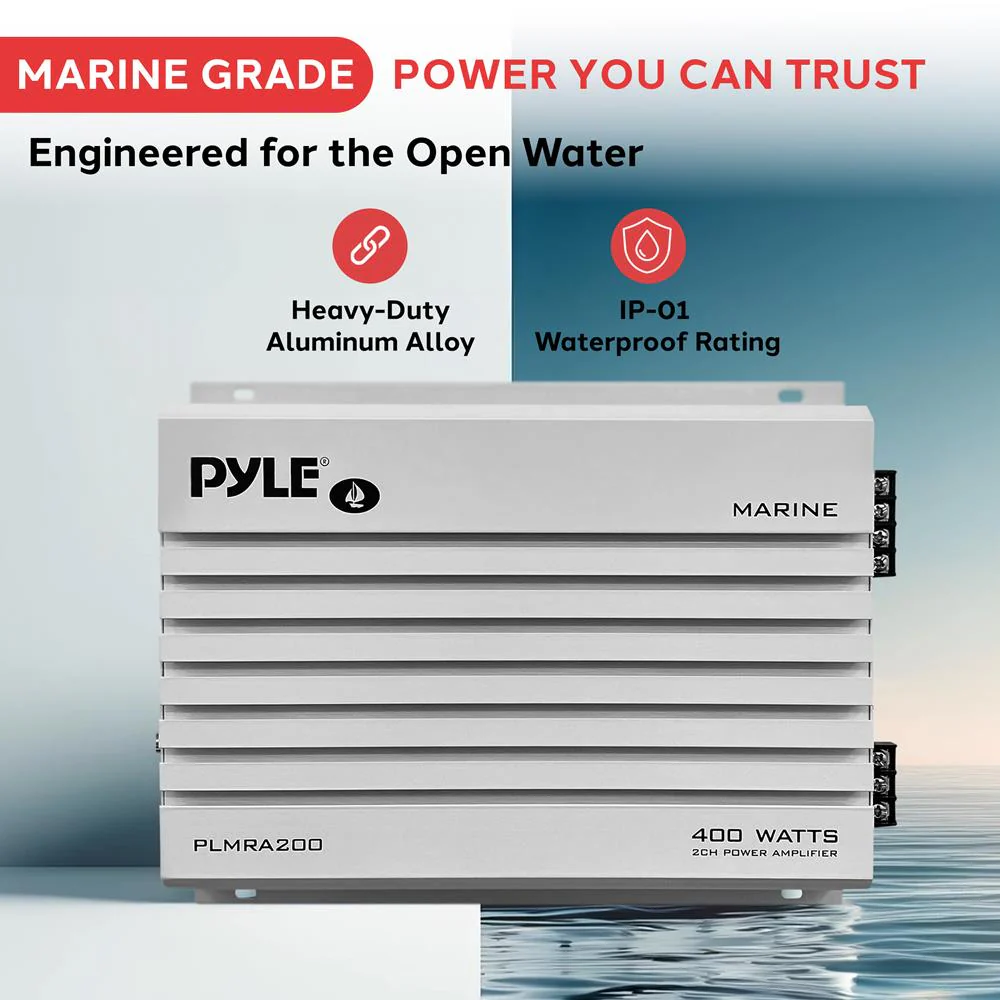

Marine Grade Construction

Waterproof Marine Rating IP-01

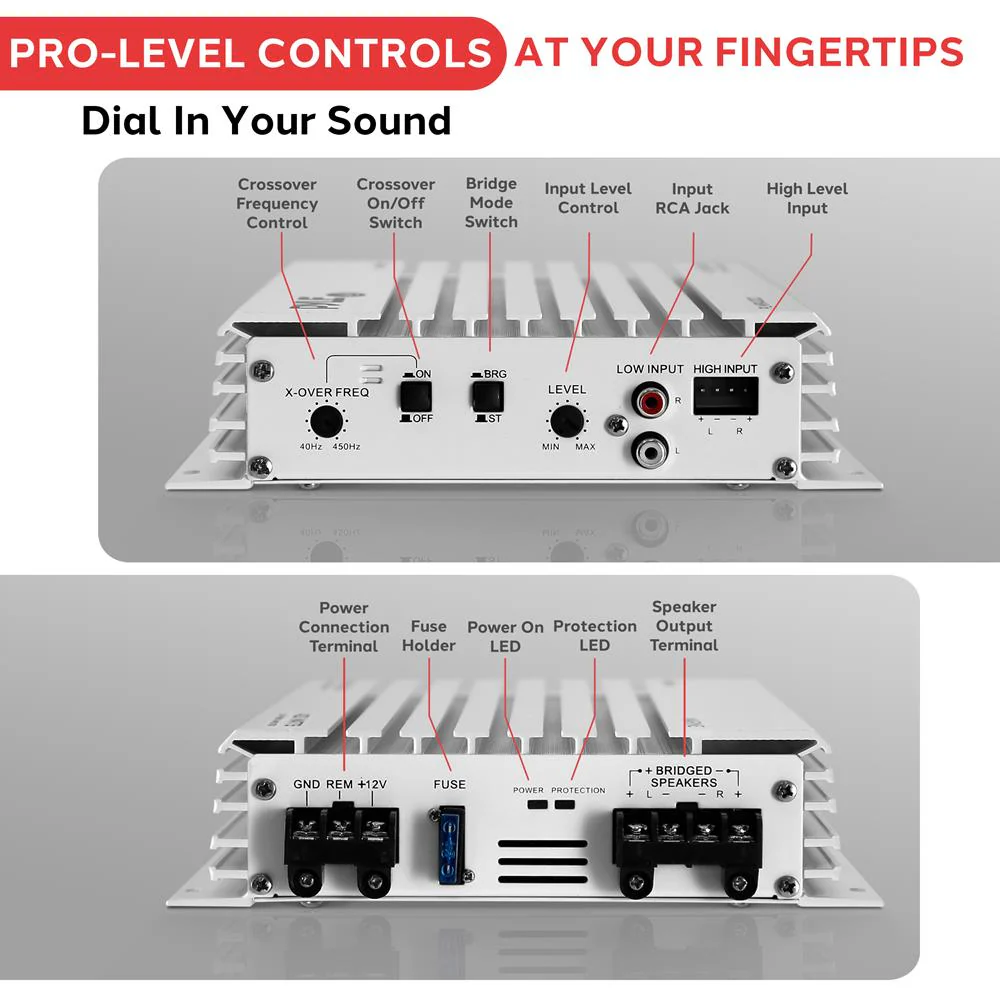

Stereo / Bridge Mode Selection Switch

Adjustable Input GAIN Level Control

RCA (L/R) Input Connector Jacks

High Level Speaker Input Connector

Power & Protection LED Indicator Lights

Gold-Plated Speaker Output Terminal Connectors

Crossover Frequency Control

Anti-Thump Delay Circuitry

Built-in Thermal, Overload & Speaker Short Protection

Heavy Duty Aluminum Alloy Heatsink

Remote Turn ON/OFF

Technical Specs:

• MAX Power: 400 Watt
• RMS Power: 200 Watt
• Amplifier Class: AB
• Fuse Type: 15A
• Crossover Frequency Adjustable: 40 - 450Hz
• Frequency Response: 10 - 30kHz +/-3dB
• Input Impedance: 10k Ohms
• Input Sensitivity: 250mV-1V
• Matching Speaker Impedance: 4-8 Ohms
• T.H.D.: <0.04%
• Power Supply: DC 12V
• Dimensions (L x W x H): 10.0'' x 7.9'' x 2.0''
