DETAILS

System Features:

• Waterproof Rated Speakers + Wireless BT Streaming Controller + Handheld Broadcasting
• Microphone Audio System Kit
• Universal Mount System for Convenient Audio Control
• Wireless BT Music Streaming Ability
• Broadcasting / Communication / Announcement Microphone
• Waterproof-Rated Marine Grade Construction
• Weatherproof & Water-Resistant Design
• Used for Marine ON-Board Audio Entertainment when Fishing, Water-Skiing or Wakeboarding, for Social Gatherings, on Tourist Boats and Warning Others of Water-hazard Situations

Wireless BT Control Unit:

• Built-in Wireless BT Streaming Audio Receiver
• 2-Channel Amplifier Style
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input
• Full Range Stereo Sound Reproduction
• Integrated Power Wiring Harness
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplifier
• Flush Mount Mounting Kit Included
• Universal Vehicle Mounting
• Can be In-Console Flush Mounted
• Anti-Thump Turn-On
• Soft Turn On / Off
• Overload & Power Protection Circuitry

Compact Handheld Microphone Features:

• Compact Size Designed to fit Easily in the Dash of your Helm with Microphone Hanger
• Volume control buttons for up and down.
• Playback overrides while Bluetooth connection status to pause your music.
• IPX6 Rating

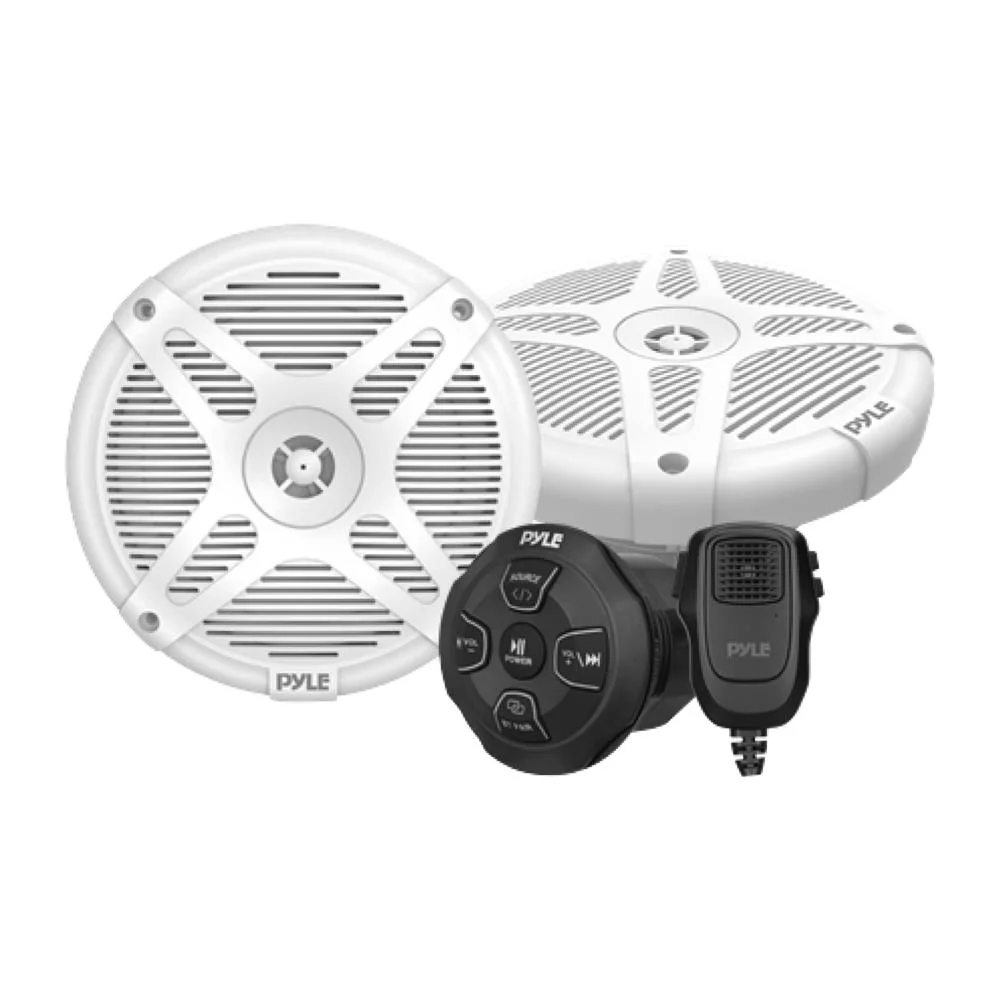

What’s in the Box:

• (2) 6.5’’ -inch Marine Speakers
• Amplified Wireless BT Streaming Control Unit
• Broadcasting / Communication / Announcement Microphone
• Installation / Mounting Kit
• Audio Connection Cable, 3.5mm

Compact Handheld Microphone Specs:

• Frequency Response: 500Hz-5KHz
• Load Impedance: 1.1K Ohms
• Operating Temperature:-20? to 60?(-4? to 140?)
• Current Consumption: 500uA
• Dimensions (L x W x H):3.62” x 2.64” x 1.38” – inches

Wireless BT Control Unit Technical Specs:

• Power Output: 300 Watt MAX
• 2 x 75 Watts RMS @ 4 Ohm
• 2 x 150 Watts MAX @ 4 Ohm
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PyleUSA’
• Wireless Range: 30’+ ft.
• Marine Grade IP65 Rating
• T.H. D: 0.1%
• S/N Ratio: > 95 dB
• Channel Separation: > 65 dB
• Frequency Response: 10 - 40kHz
• Fuse: 10A
• Power: DC 12V
• Unit Dimensions (L x W x H ): 3.8’’ x 3.8’’ x 4.17’’ – inches

Marine Speakers:

• MAX Power: 600 Watt
• 4 Ohm Impedance
• Sensitivity: 90dB
• 20 oz. Circuit Magnet
• Voice Coil: 1.0'', Aluminum
• Tweeters: 0.5'', Neodymium Dome
• Frequency Response: 85Hz-20kHz
• Total Diameter: 6.9” -inches
• Cut-Out Diameter: 5.75” -inches
• Total Depth: 3.16’’ -inches
• Mounting Depth: 2.3” -inches

What's In The Box

What’s in the Box:

(2) 6.5’’ -inch Marine Speakers

Amplified Wireless BT Streaming Control Unit

Broadcasting / Communication / Announcement Microphone

Installation / Mounting Kit

Audio Connection Cable, 3.5mm
