The Pyle Universal Mount Bluetooth Speaker & Amplifier System - Marine Grade Amp + Speaker Kit (6.5’’ Speakers, 240 Watt) - Universal Mountable Speaker & Amplifier Kit - Perfect for Custom Mobile/Vehicle Applications - Marine Grade Style & Water Resistant Design - Includes All Necessary Cables & Wires for Installation - Wireless BT Music Streaming Ability - Aux (3.5mm) Input Connector Jack/USB Port - Connect & Stream Audio from External Devices - Simple Digital Touch Button Controls - LED Connection Indicator Lights - USB Charging (2A) - Marine Grade Construction - Water-Resistant, Weatherproof Design - 2 - Channel Amplifier Style - Connect & Stream Audio from Additional External Devices - Aux (3.5mm) Input - Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplifier - Anti-Thump ON/OFF Option - Soft Turn ON/OFF Option - Overload & Power Protection Circuitry - Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Watercrafts, & PowerSport Vehicles

DETAILS

Features:

• Universal Mountable Speaker & Amplifier Kit
• Perfect for Custom Mobile/Vehicle Applications
• Marine Grade Style & Water Resistant Design
• Includes All Necessary Cables & Wires for Installation
• Wireless BT Music Streaming Ability
• Aux (3.5mm) Input Connector Jack/USB Port
• Connect & Stream Audio from External Devices

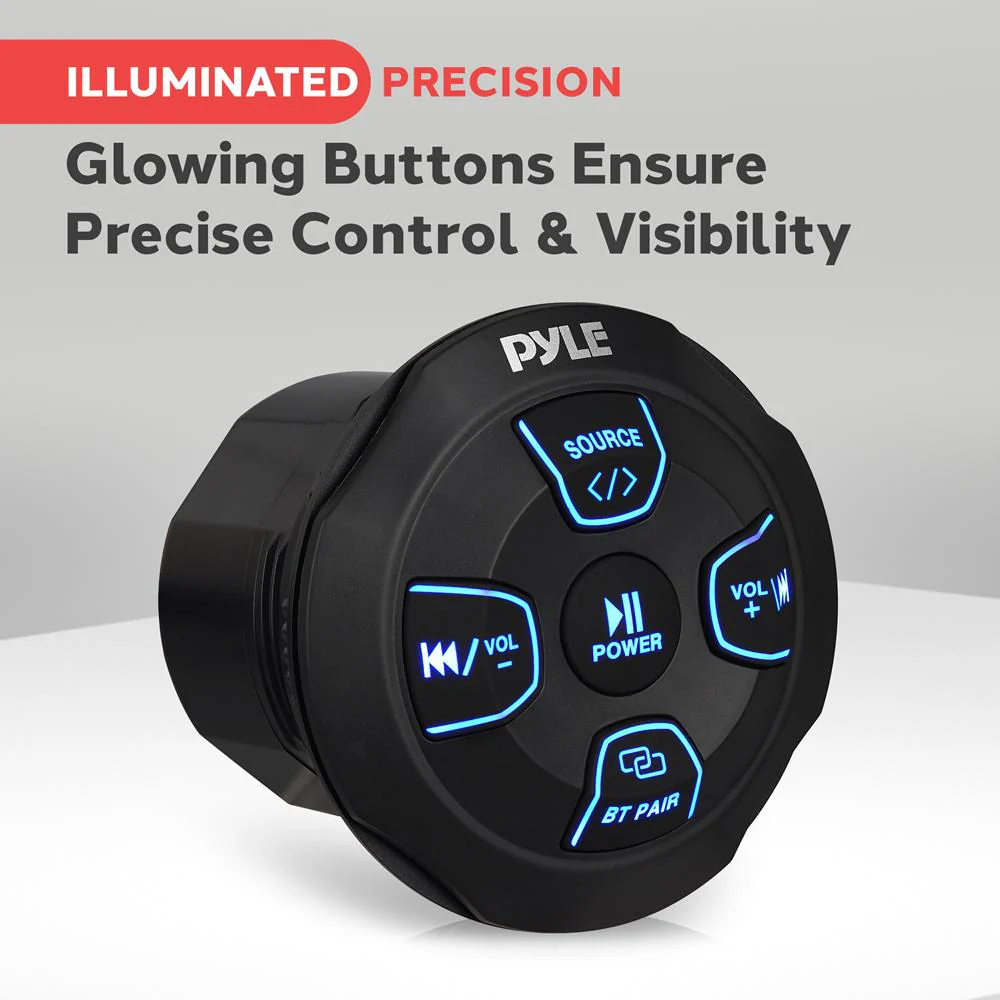

• Simple Digital Touch Button Controls
• LED Connection Indicator Lights
• USB Charging (2A)

BT Control Unit Features:

• Marine Grade Construction
• Water-Resistant, Weatherproof Design
• 2 - Channel Amplifier Style
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplifier
• Soft Turn ON/OFF Option
• Overload & Power Protection Circuitry
• Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Watercrafts, & PowerSport Vehicles

Bluetooth Wireless Connectivity:

• Simple & Hassle-Free Pairing
• Instant Wireless Audio-Streaming Receiver
• Works with All of Today's Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'PYLEUSA'
• Wireless Range: Up to 30 ft.

What’s in the Box:

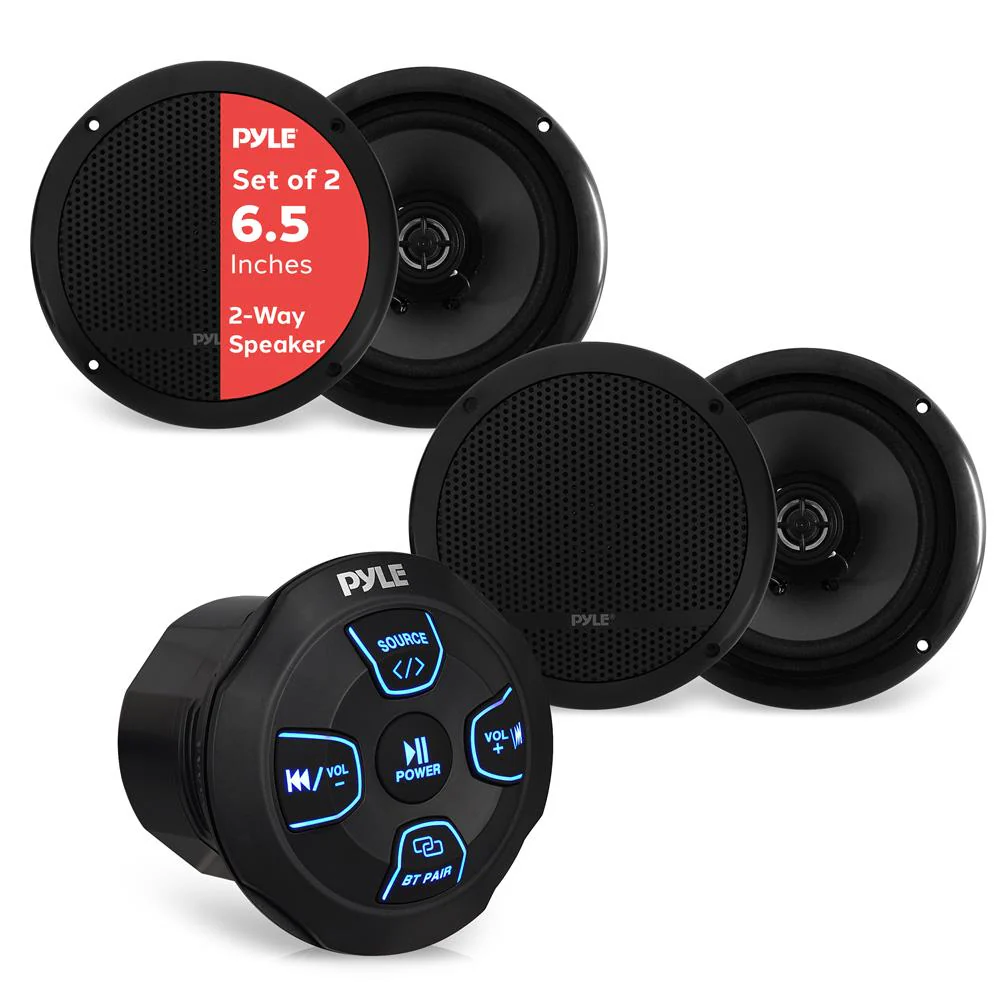

• (1) Wireless BT Control Unit
• (1) 3.5 mm Stereo Wire
• (2) 6.5'' -inch Marine Speakers
• (2) EVA Gaskets for Speakers
• (1) Screw Bag for Speakers

Wireless BT Control Unit Technical Specs:

• Power Output: 240 Watt MAX
• 2 x 60 Watts RMS @ 4 Ohm
• 2 x 120 Watts MAX @ 4 Ohm
• Marine Grade IP65 Rating
• Amplifier Type Class-D
• T.H.D: 0.1%
• S/N Ratio: > 95 dB
• Channel Separation: > 65 dB
• Frequency Response: 20 - 25kHz
• Fuse: 10A
• Power: DC 12V
• Unit Dimensions (Diameter x Depth): 3.8’’ x 4.17’’ - inches

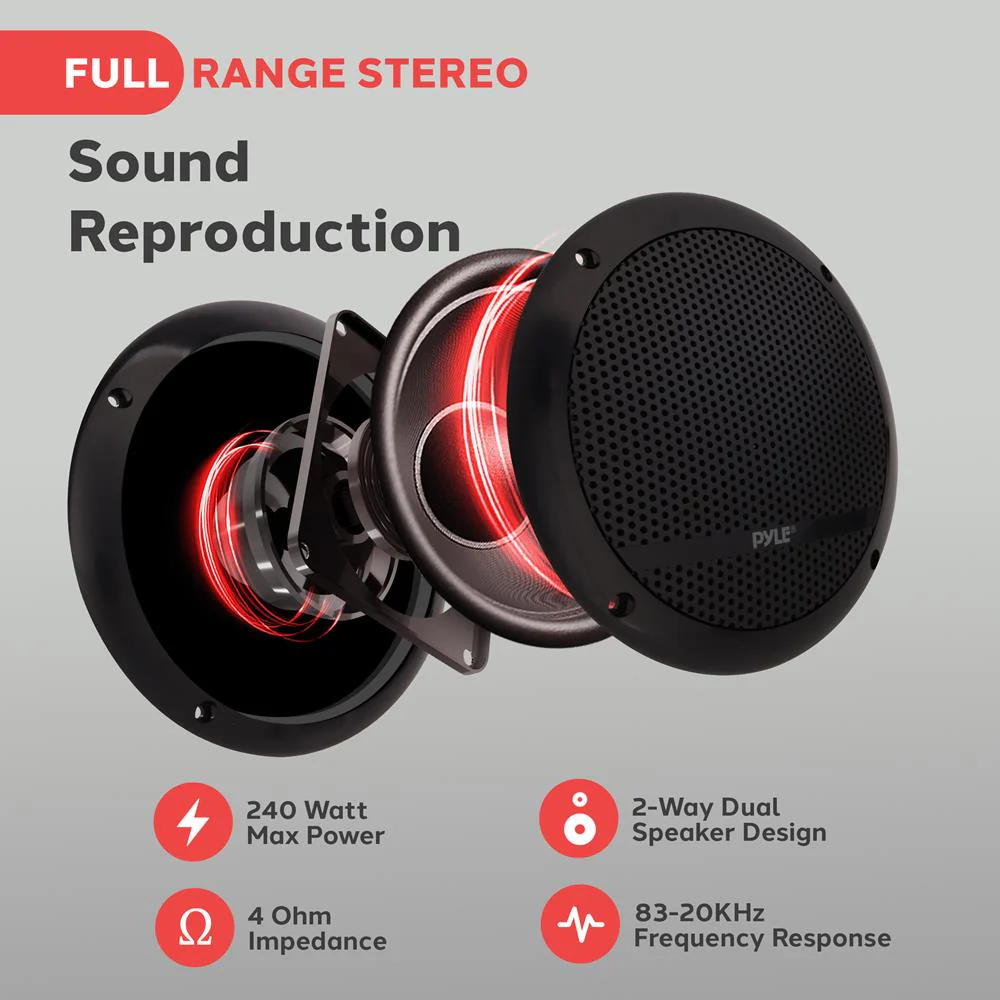

Marine Speakers Technical Specs:

• (2) 6.5'' Reinforced Polypropylene Cones
• Full Range Stereo Sound Reproduction
• 2-Way Speaker Design
• Weather-Resistant Grill Design
• Marine Grade Rating: IP-X5
• 0.5'' PEI Dome Tweeters
• Suspension Cloth Surround
• 120 Watts RMS / 240 Watts Peak
• Frequency Response: 83-20KHz
• Impedance: 4 Ohms
• Total Speaker Dimensions (L x W x H): 7.09’’ x 7.09’’ x 3.35’’
• Speaker Cut-Out Diameter: 5.2’’, Cut-Out Depth: 2.4’’

What's In The Box

What’s in the Box:

(1) Wireless BT Control Unit

(1) 3.5 mm Stereo Wire

(2) 6.5'' -inch Marine Speakers

(2) EVA Gaskets for Speakers

(1) Screw Bag for Speakers

MANUALS & DOWNLOADS

PLMRKT9 - Manuals
