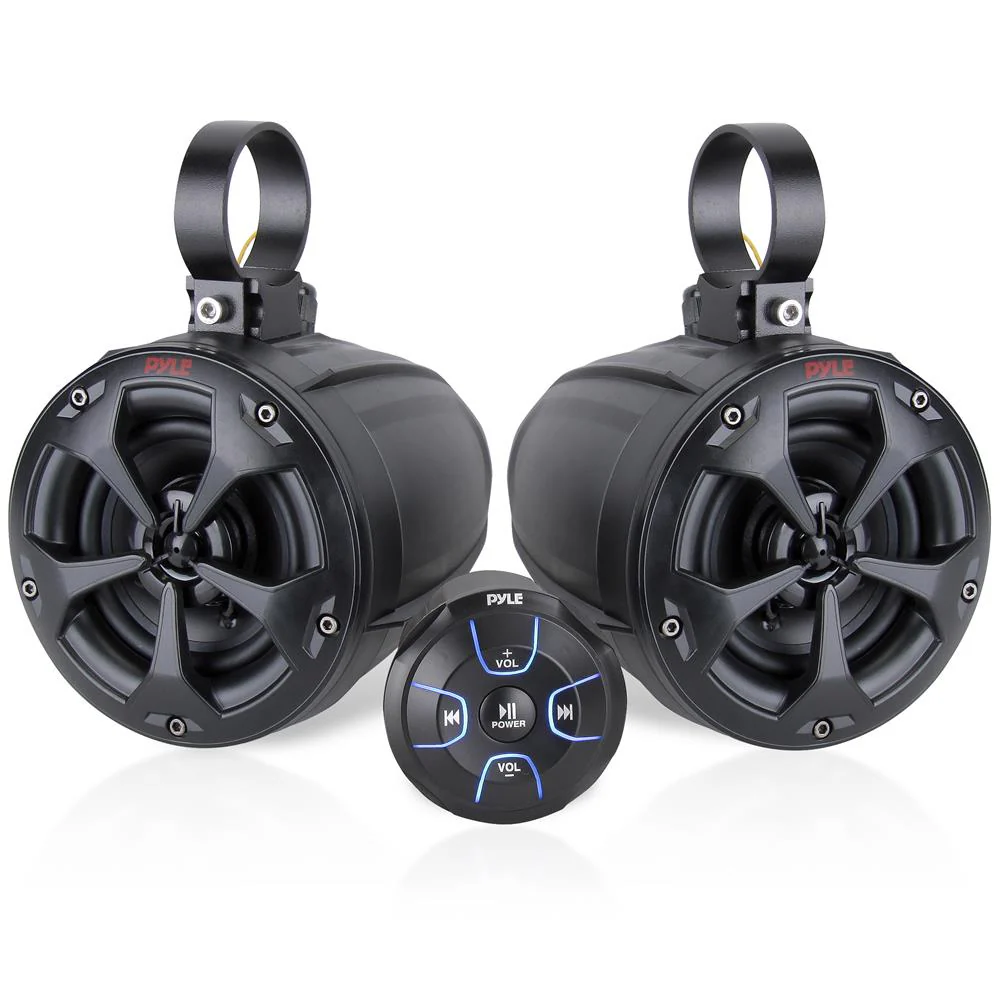

The Pyle 4’’ Waterproof Rated Off-Road Speakers with Amplified Bluetooth Remote Control Receiver - Compact Dual Vehicle Speaker System for ATV, UTV, 4x4, Jeep, PowerSports Vehicles - Waterproof Rated Speakers + Bluetooth Controller System Kit - Universal Mount System for Convenient Audio Control - Bluetooth Wireless Music Streaming Ability - Waterproof-Rated Marine Grade Construction - Weatherproof & Water-Resistant Design - Compact & High-Powered System Output - Used for Car, Truck, ATV, UTV, 4x4, Boat, Marine Watercraft, PowerSport Vehicles - What’s in the Box: - (2) 4’’ -inch Marine Speakers - Amplified Bluetooth Control Unit - Installation / Mounting Kit - Speaker Connection Wire - Bluetooth Control Unit: - Built-in Bluetooth Audio Receiver - 2-Channel Amplifier Style - Works with All of Today’s Latest Devices - Smartphones, Tablets, Laptops, Computers, etc.

DETAILS

Features:

• Waterproof Rated Speakers + Wireless BT Controller System Kit
• Universal Mount System for Convenient Audio Control
• Wireless BT Music Streaming Ability
• Marine Grade Construction
• Water-Resistant, Weatherproof Design
• Compact & High-Powered System Output
• Used For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Watercrafts, & PowerSport Vehicles

What's in the Box:

• (2) 4”-inch Marine Speakers
• Amplified Wireless BT Streaming Control Unit
• (2) 2 Meters Speaker Wire
• Audio Connection Cable, 3.5mm
• (2) 5.91'' x 0.75'' x 0.24'' -inches Rubber Pads
• (2) 6.5'' x 0.75'' x 0.08'' -inches Rubber Pads
• (4) Butt Connector (Red Color For A.W.G 16-22)

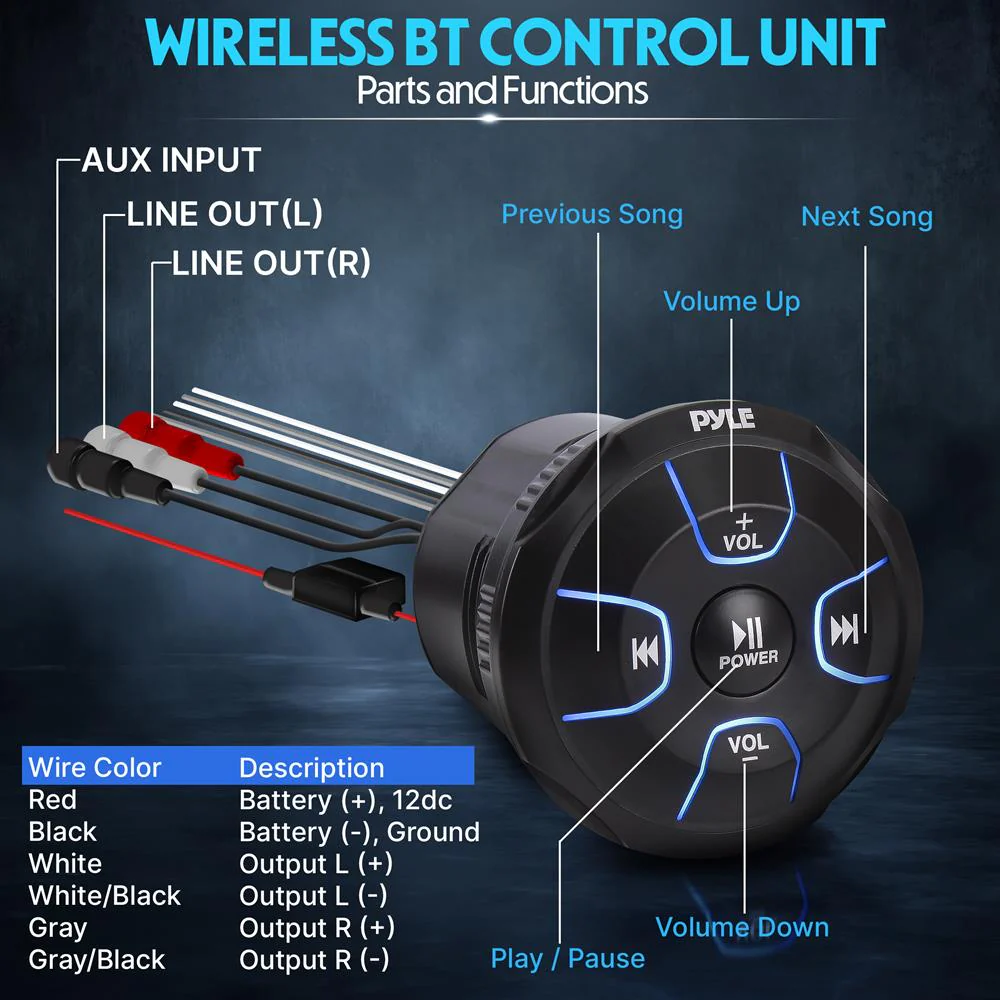

Wireless BT Control Unit:

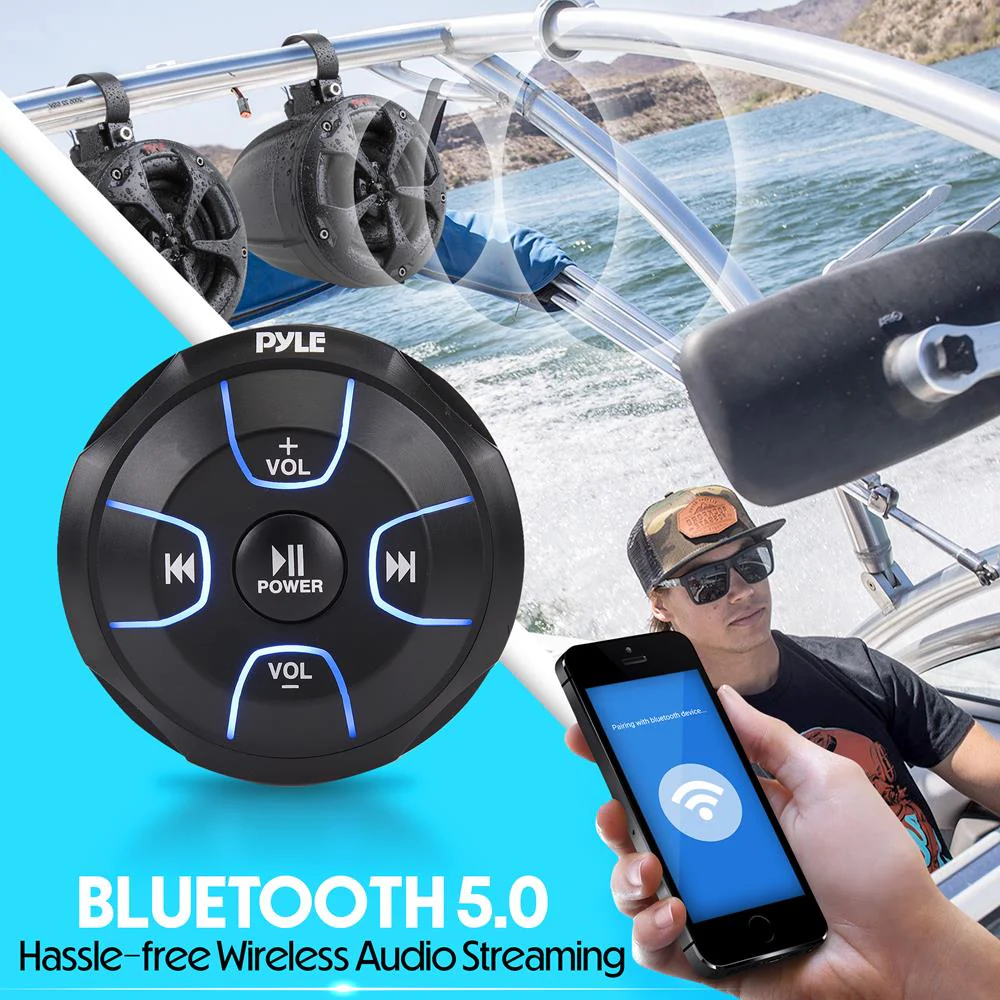

• Built-in Wireless BT Audio Receiver
• 2-Channel Amplifier Style
• Works with All of Today's Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input
• Full Range Stereo Sound Reproduction
• Integrated Power Wiring Harness
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplifier
• Flush Mount Mounting Kits Included
• Universal Vehicle Mounting
• Can be In-Console Flush Mounted
• Anti-Thump Turn-on
• Soft Turn On/Off Option
• Overload & Power Protection Circuitry

Wireless BT Control Unit Technical Specs:

• Power Output: 800 Watt MAX
• 2x200 Watts RMS @ 4 Ohm
• 2x400 Watts MAX @ 4 Ohm
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: 30’+ ft.
• Amplifier Type: Class D
• Marine Grade IP65 Rating
• T.H.D: 0.1%
• S/N Ratio: > 95 dB
• Channel Separation: > 65 dB
• Frequency Response: 10 - 40 kHz
• Fuse: 10A
• Power: DC 12V
• Unit Dimensions (Diameter x Depth): 3.8” x 4.17” - inches

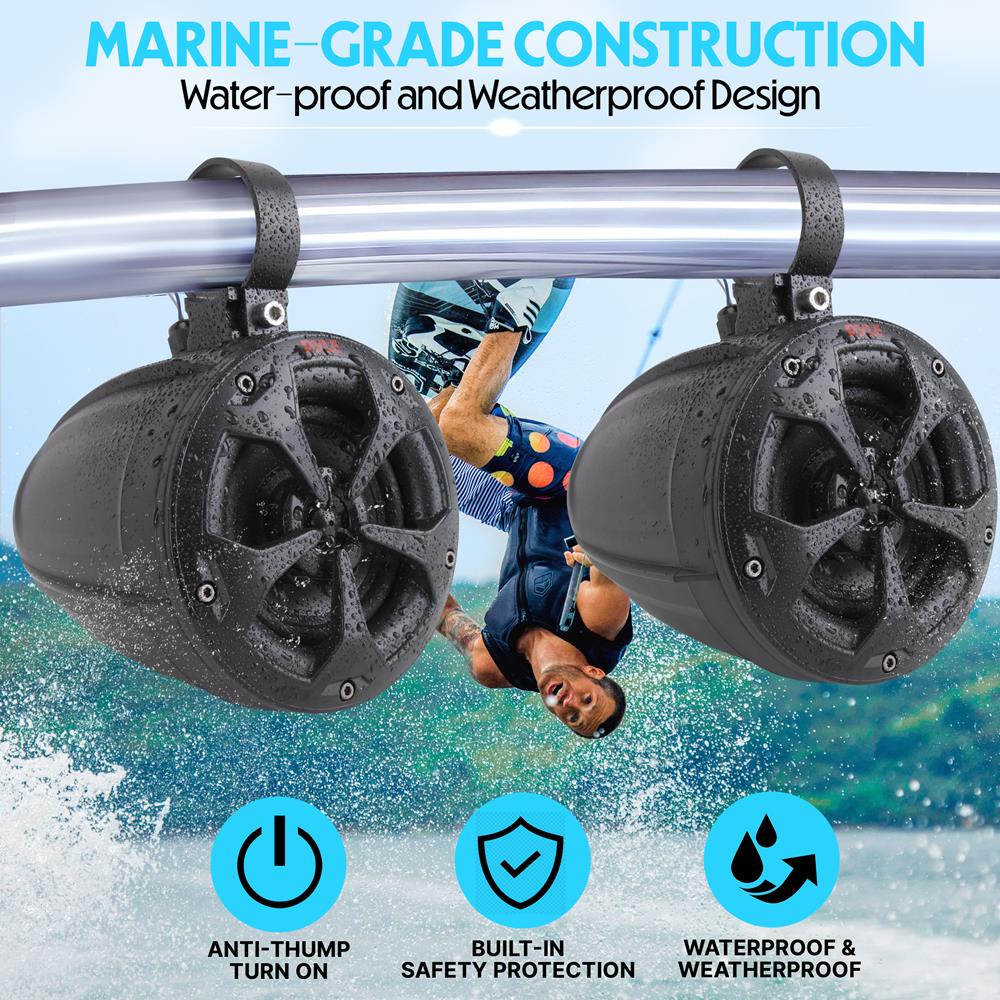

Marine Speakers:

• Pro Audio PowerSport Speakers
• Sound System: (2) x 4”Woofers + (2) x 0.5” Tweeters

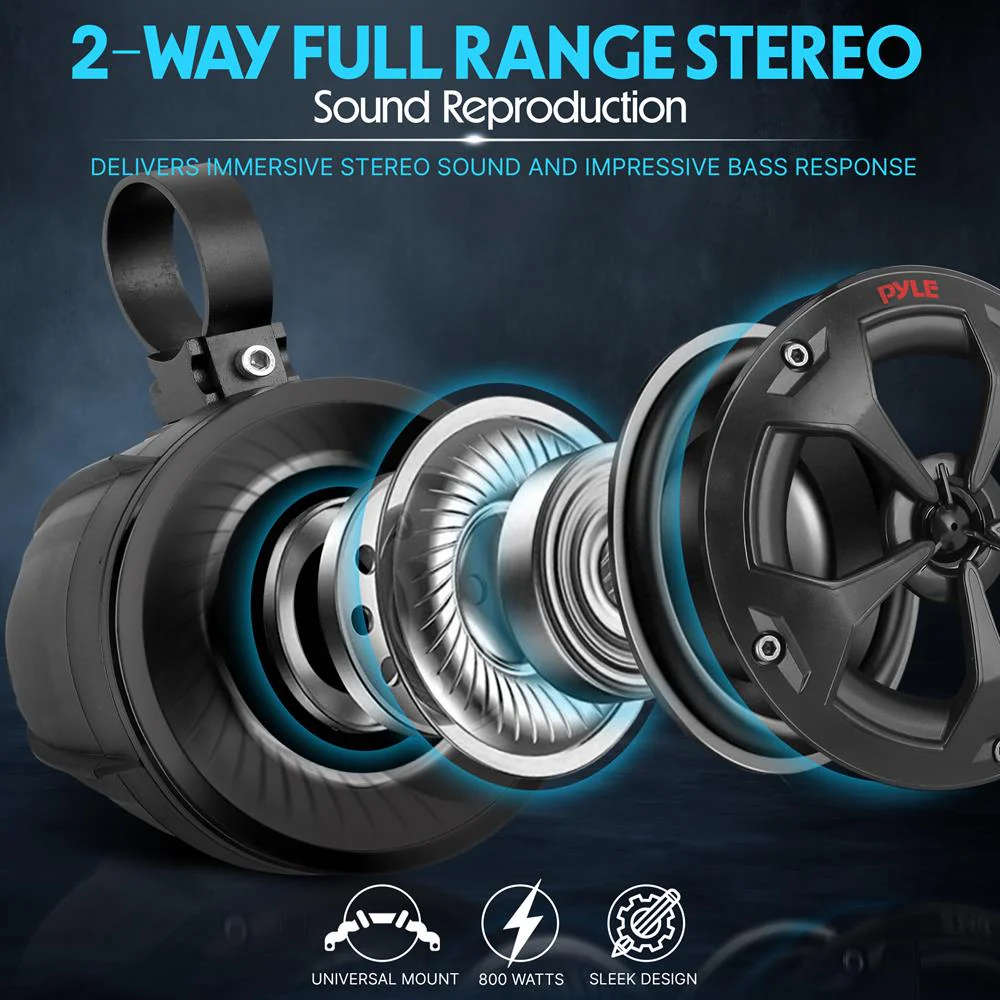

• 2-Way Full Range Stereo Sound Reproduction
• Quick-Connect Spring-Loaded Speaker Terminals
• Impressive Bass Response
• Sleek Design, Machine Molded Speaker Cabinet Housing
• Rugged, Universal Mount Bracket Design for Roll-Bar/Roll-Cage

Marine Technical Specs:

• Power Output: 800 Watt MAX
• Marine Grade Waterproof Rating: IP-X5
• Speaker Style: Passive Speakers
• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
• Tweeter Type: Neodymium Dome (x2)
• Frequency Response: 85Hz-20kHz
• Impedance: 4 Ohm
• Magnet Type: 20 oz. Circuit
• Mid-Woofer Voice Coil Type: 1.0", Aluminum
• Sensitivity: 90 dB +/- 2 dB @ 1M/1W
• Universal Mounting Brackets Roll-Bar/Roll-Cage Diameter: 1.25” ~ 2.0” -inches
• Power Supply: DC 12V
• Speaker Size (Front Diameter x Length): 5.6” x 7.3” -inches (Each)

What's In The Box

(2) 4’’ -inch Marine Speakers

Amplified Bluetooth Control Unit

Installation / Mounting Kit

Speaker Connection Wire

MANUALS & DOWNLOADS

PLUTV46BTA - Manuals
