DETAILS

Features:

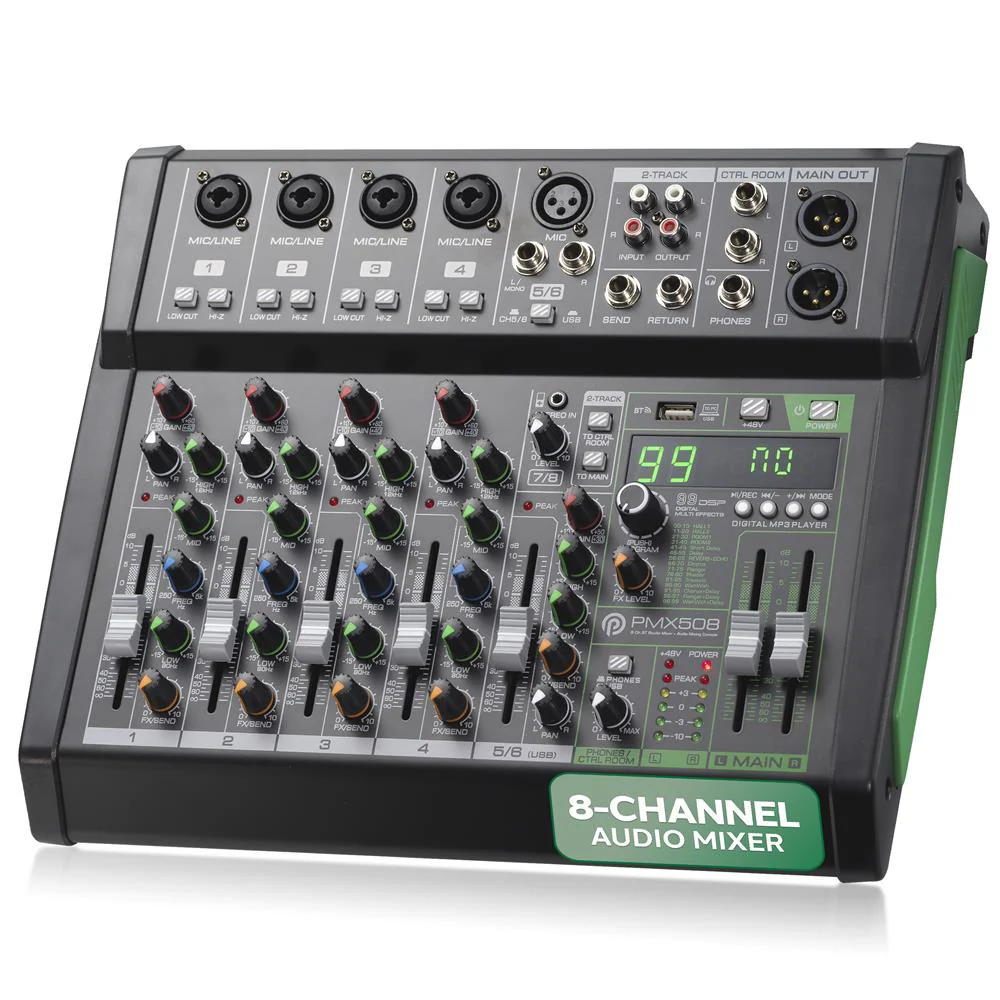

• DJ & Studio Console Mixer System

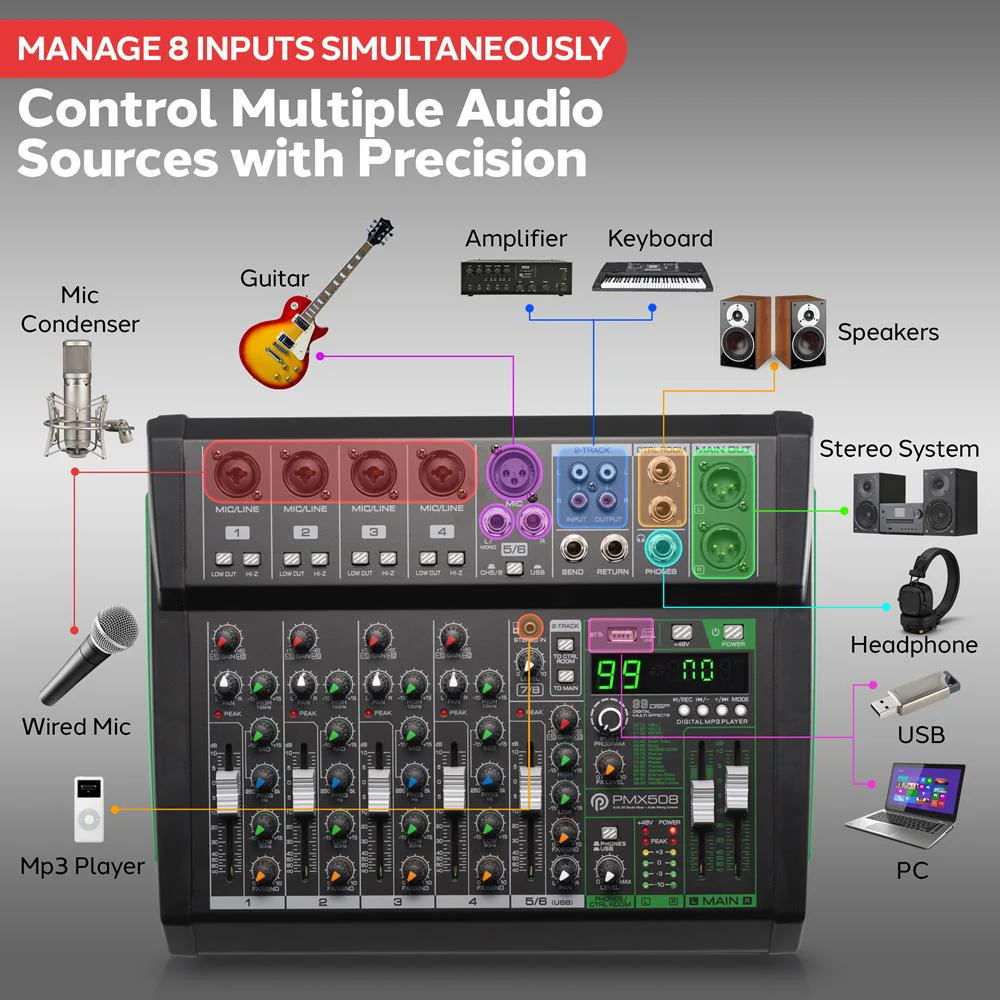

• Multi 8-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• 32 Bit, Digital 99 Effects (Hall, Room, Reverb, and so on)
• Direct-to-Computer Connect & Sound Record Ability
• LED Digital Display & Front Panel Control Center
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility

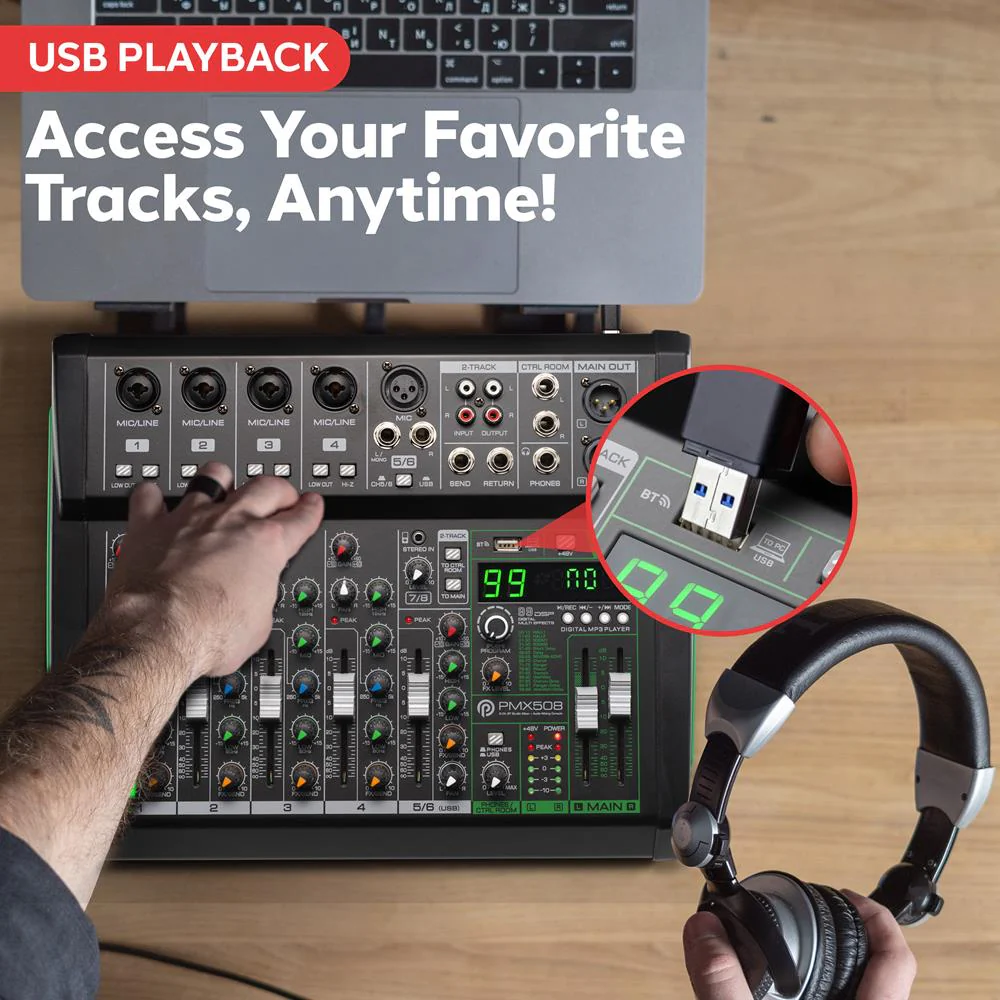

• USB Interface: MP3 Flash Drive Reader/Computer Connection
• Connect & Stream Audio from External Devices
• XLR (L/R) MAIN Outputs
• XLR/14’’ XLR + 1/4” Combo Audio LINE/Microphone Inputs
• RCA (L/R) Inputs and Outputs
• XLR Mono or 1/4” Stereo Inputs
• 1/4’’ Send + Return and 1/4’’ Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control, Sound Routing
• LOW CUT and HI-Z Channel Source Input Switch
• Independent Channel Input Audio Configuration

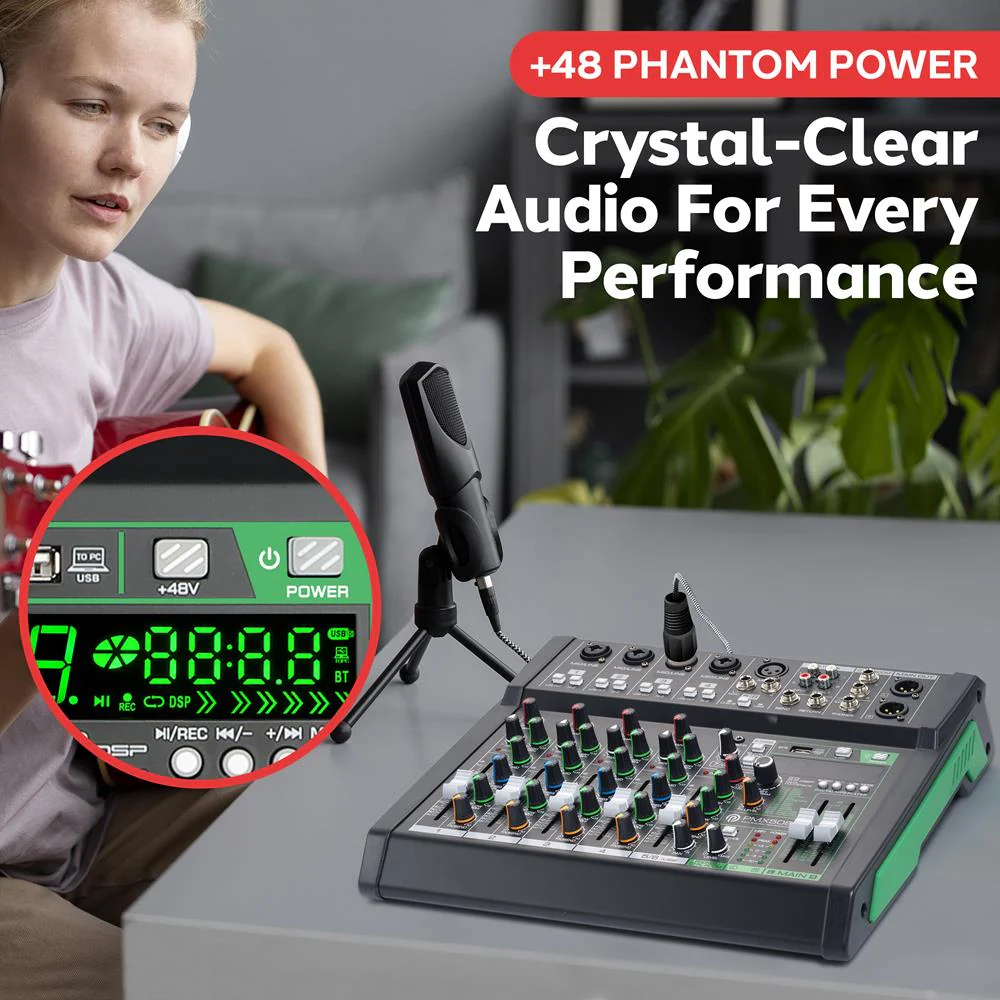

• Gain, High, Mid, Low, FX/Send, Level + Tone Adjustment +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

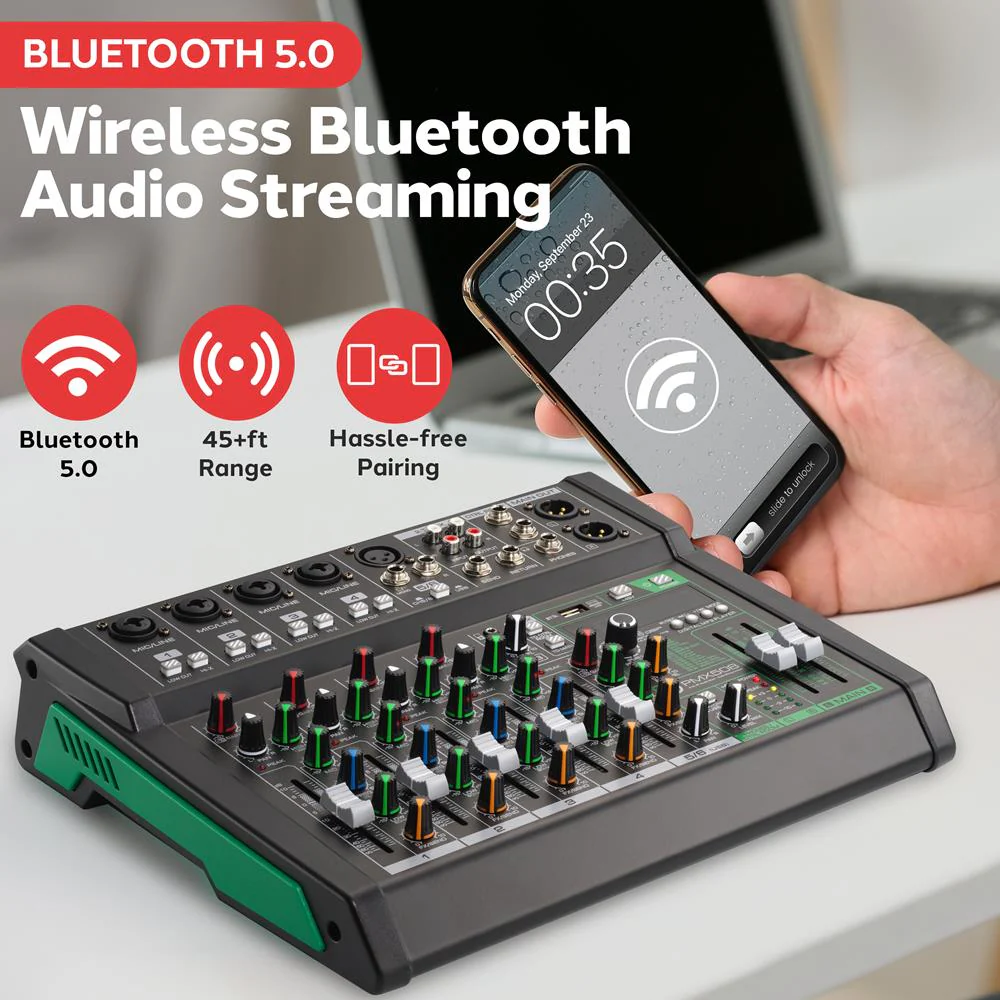

Bluetooth Wireless Streaming:

• Built-in Bluetooth for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Bluetooth Version: 5.0
• Bluetooth Network Name: `KG-UM`
• Wireless Range: Up to 32 ft.

What's in the box:

• 8-Channel Mixer
• (2) Flat Plug Power Adapter
• USB Cable

Technical Specs:

• Construction Material: Metal
• Input Mixer Channels: 8-Ch. (+ FX/Headphones)
• Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
• Input Frequency Response: 20Hz-20kHz, +/-3dB
• Input Distortion: 0.03%, 1kHz/150mV Input
• Channel GAIN Adjustment: +10/+60 (-10/+40)
• HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
• MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
• LOW Gain: +/-15 dB, 80kHz Frequency Shelving
• HIGH/MID/LOW Adjustment: -15/+15dB
• Stereo Output Level Meter: 5-Segment (+10, +3, 0, -3, PEAK)
• Peak CLIP Level: < 3dB
• Phantom Power Voltage: +48V
• Power Supply: 100/240V (5V DC Power Adapter)
• Digital Audio File Compatibility File-Types: MP3, WAV
• Product Dimensions (L x W x H): 13.4” x 11” x 2.9” -inches
