The Pyle PMX840BT is your powered PA mixer and amplifier solution. This 800 watt, 8-channel sound system comes with built-in Bluetooth technology so you can quickly and easily stream wireless audio. Enjoy compact and convenient mutli-source audio control at your next event with this versatile system. Connect it all; features include 3-Pin Low Impedance Balanced Microphone Inputs, 1/4” Line/ High Impedance Balanced Inputs, audio line (3.5mm) input for connecting Smartphones or MP3 players, along with plenty more features to keep all of your audio in order. Configure and fine-tune your sound settings and achieve the precise audio levels you’ve been looking for. Take control of the sound, and the crowd, with the Pyle 8-Channel Bluetooth PA and Microphone Audio Mixer System.

DETAILS

Features:

• 8-Ch. Audio Mixer System
• Pro Audio Stage Powered Design
• Bluetooth Wireless Music Streaming
• Digital LCD Display
• Front Panel Audio Control Center
• Connect & Stream Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash Drive & SD Memory Card Readers
• Aux (3.5mm) Input Jack
• 3-Pin Low Impedance Balanced Microphone Inputs
• 1/4'' Line/ High Impedance Balanced Inputs
• Headphone Output: 1/4'' TRS Stereo Connector
• RCA & 1/4'' Effects Loop Connectors
• Additional RCA Inputs: Tape Play (L/R), Tape Record (L/R)

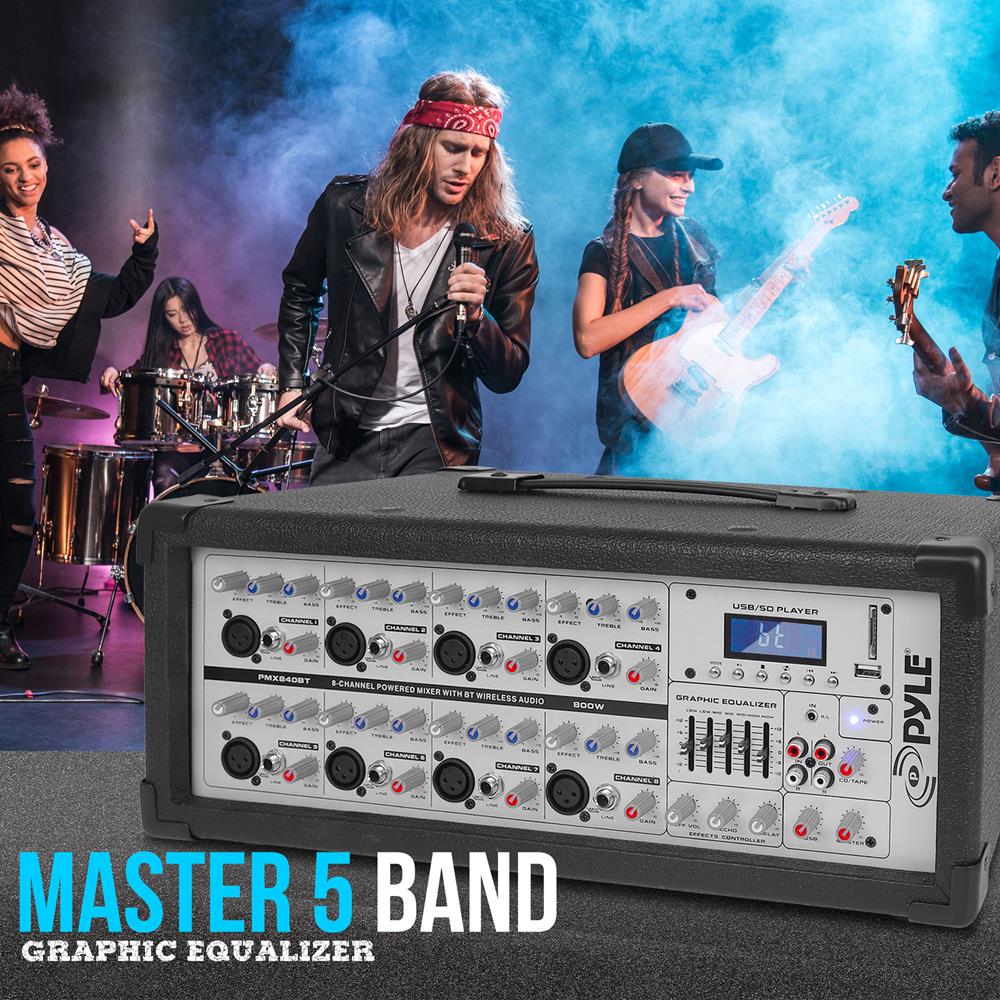

• Master 5 Band Graphic Equalizer
• Independent Channel Volume, EQ & EFFX Adjustment
• EQ & Master EFFX Control of Level, Echo & Reverb Controls
• Convenient Carry Handle
• Built-in Cooling Fan

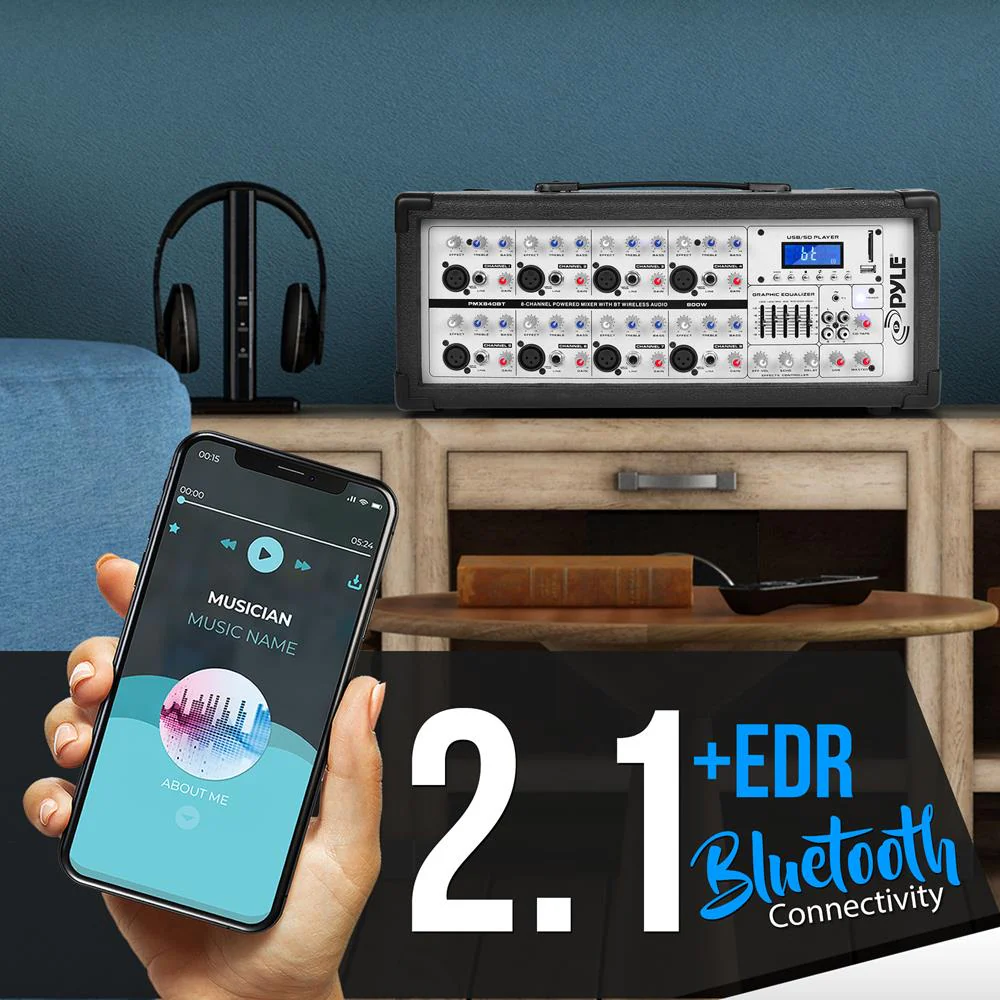

Bluetooth Connectivity:

• Built-in Bluetooth for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today's Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Wireless Network Name: ‘AC46XX’
• Bluetooth Version: 2.1+EDR
• Wireless Range: 30’+ ft.

What's in the Box:

• 8-Ch. Bluetooth Stage Powered Mixer
• Power Cable

Technical Specs:

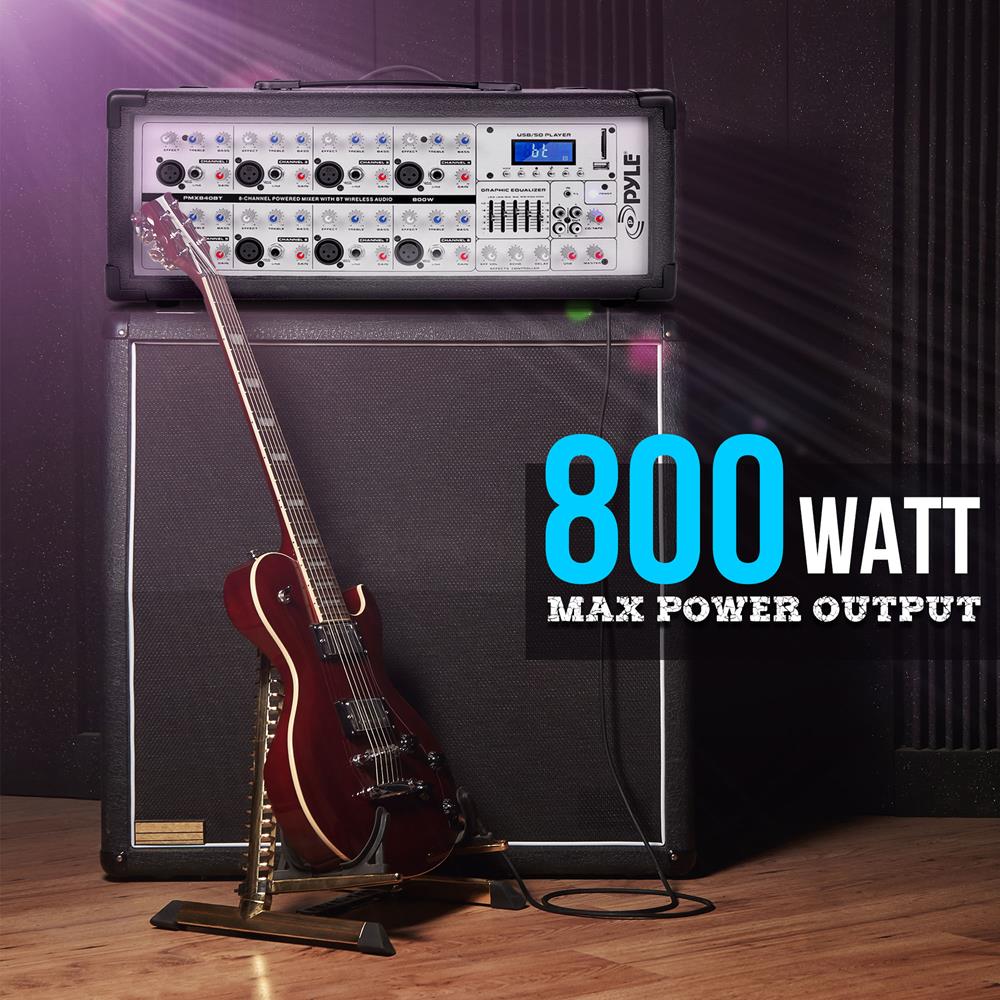

• Power Output: 800 Watt MAX
• 8 Ohm Impedance Each Channel
• Line Level Impedance 10K Ohms @ -10dBv
• Mono Microphone Inputs (XENYX Mic Pre-Amp)
• XLR: Electronically Balanced Discrete Input Circuit
• Frequency Response: <10Hz–150kHz (-1dB), <10Hz–200kHz (-3dB)
• Gain Range: +10 - +60dB
• Max. Input Level: +12dBu @ +10dB Gain
• Impedance: Approx. 2.6k O Balanced
• Signal-to-Noise Ratio: 110dB / 112dB, A–Weighted
• Distortion: (THD+N): 0.005% / 0.004%, A-Weighted
• Channel Equalization: Control Range
• High @ 10K +/-15dB, Low @ 60K +/-15dB
• Master EQ Frequency Hz: 60, 250, 1K, 4K, 12K
• Boost/Cut Control: +/-12dB
• Effects Loop & Send: 1/4'' TS Connectors Unbalanced
• Impedance: Approx 1k Ohm -10dBv

What's In The Box

8-Channel Powered Mixer

Power Cable

MANUALS & DOWNLOADS

PMX840BT - Manuals
