DETAILS

Features:

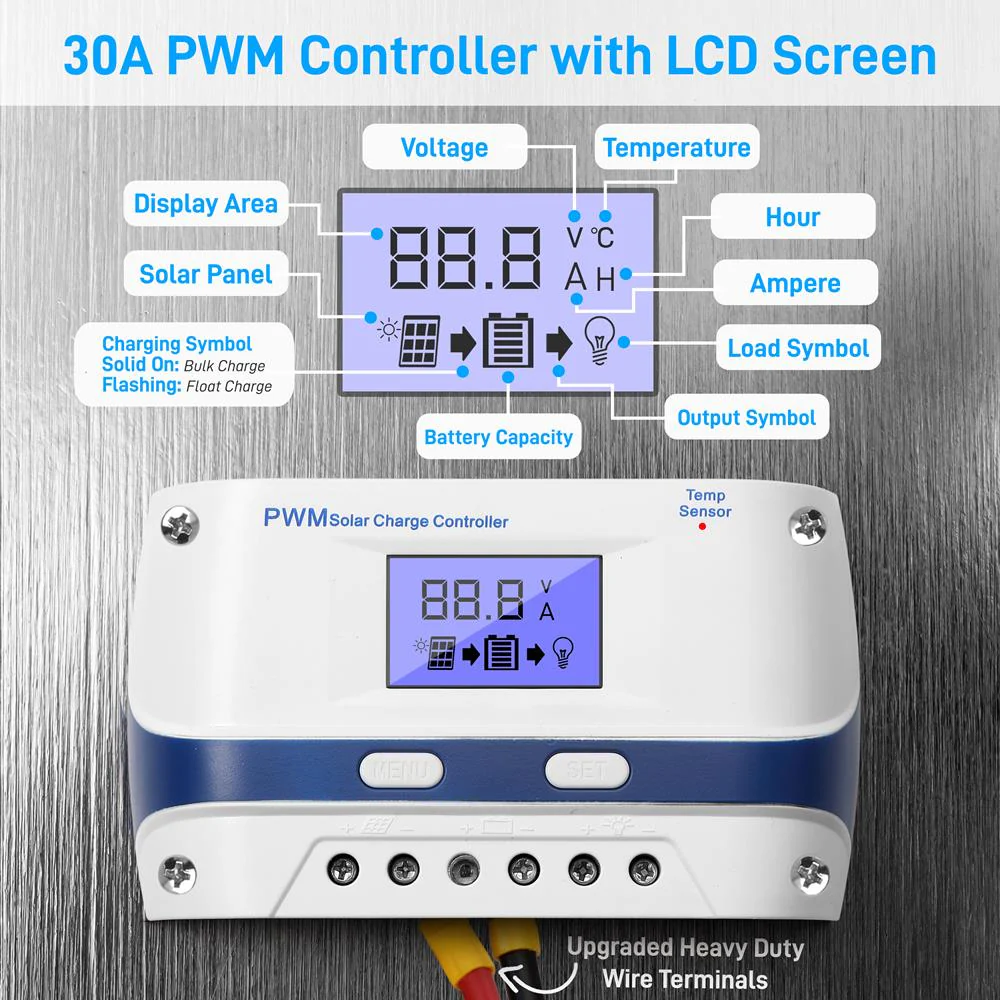

• Includes 30A PWM Controller with LCD Screen
• Portable and Easy Set-Up
• Sleek Design for Aesthetic Quality
• Grade A Mono Solar Cells
• Higher Module Conversion Efficiency

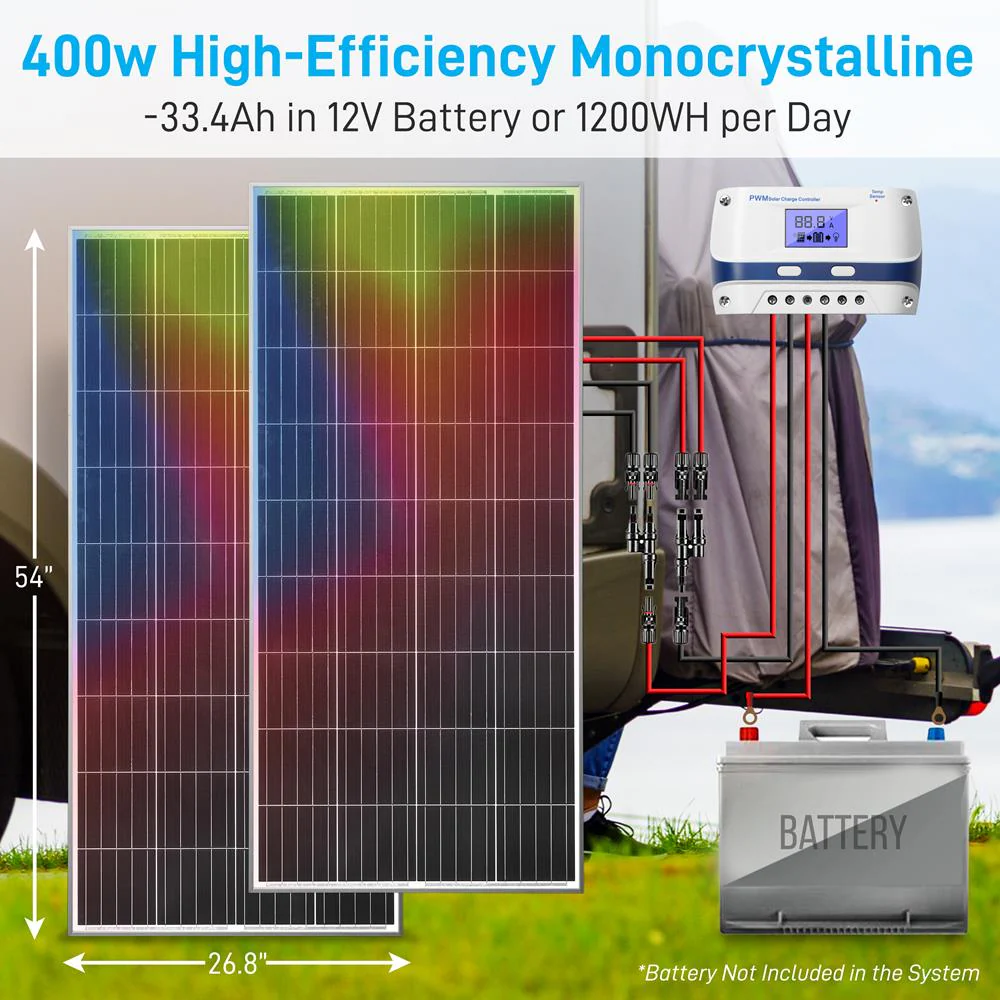

• Each Panel Produces 600-1200Wh a day
• Generates 10.2 amp Power
• Charges 12/24 Volt Battery
• Anodized Aluminum Frame to Protect Solar Cells
• Convenient for Installation

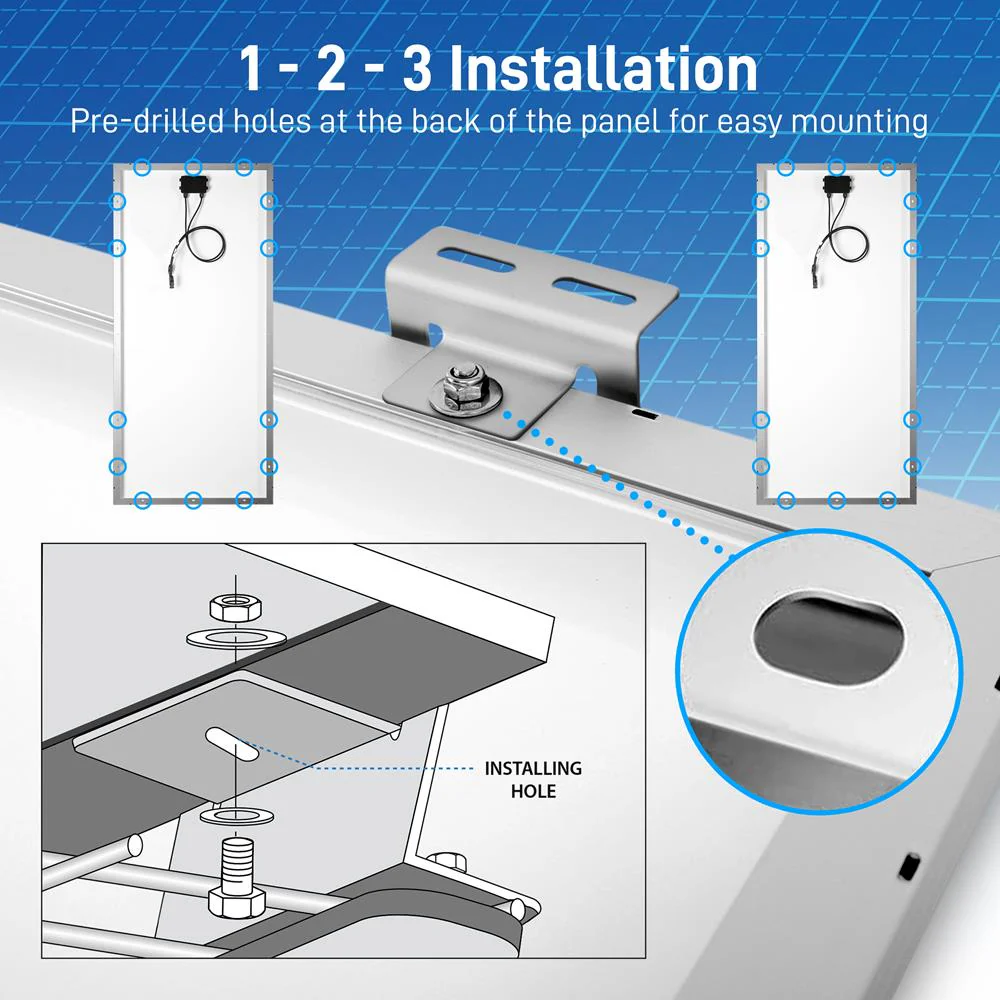

• Pre-drilled Holes, Compatible with Common Ground Mounts
• Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating
• Set Up in Just 5 Minutes for Solar Starters
• Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

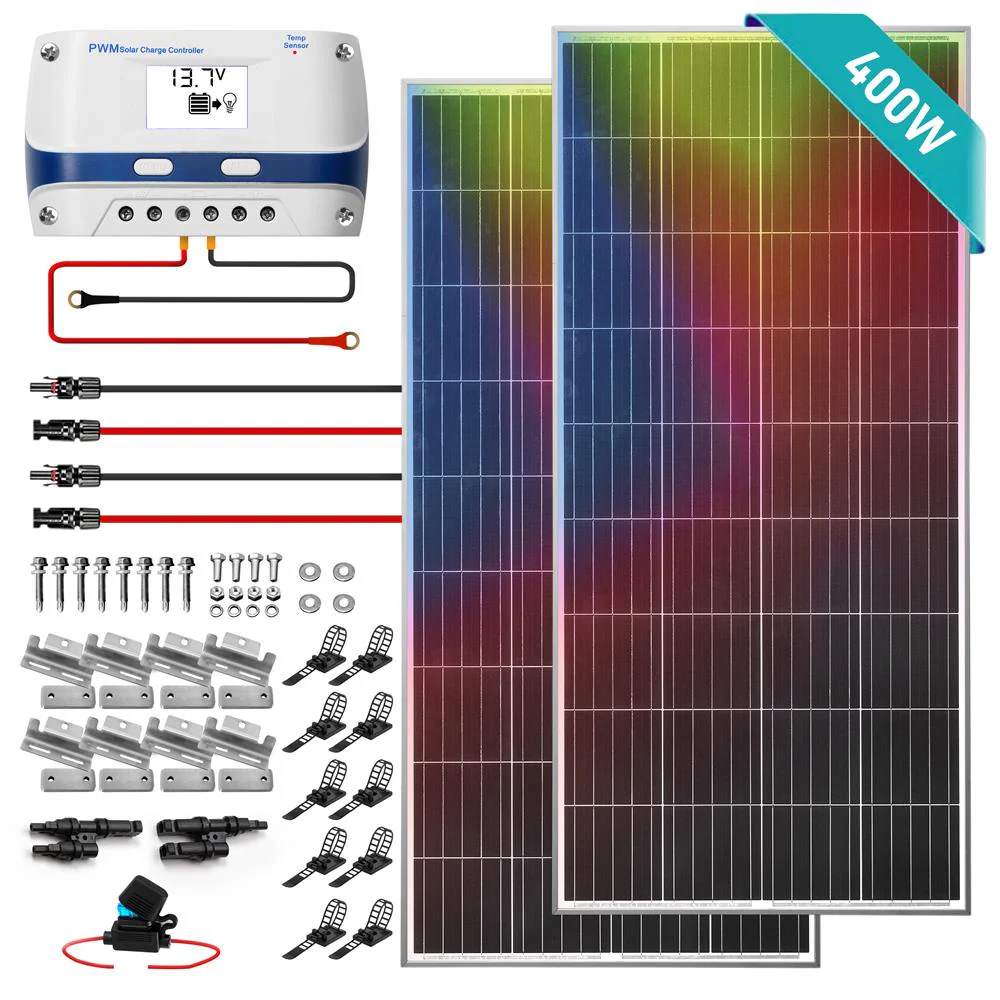

What's in the Box:

• (2) 200W Mono Solar Panel
• 30A Solar charge controller (White)
• (2) Sets Of Mounting hardware / Z-brackets

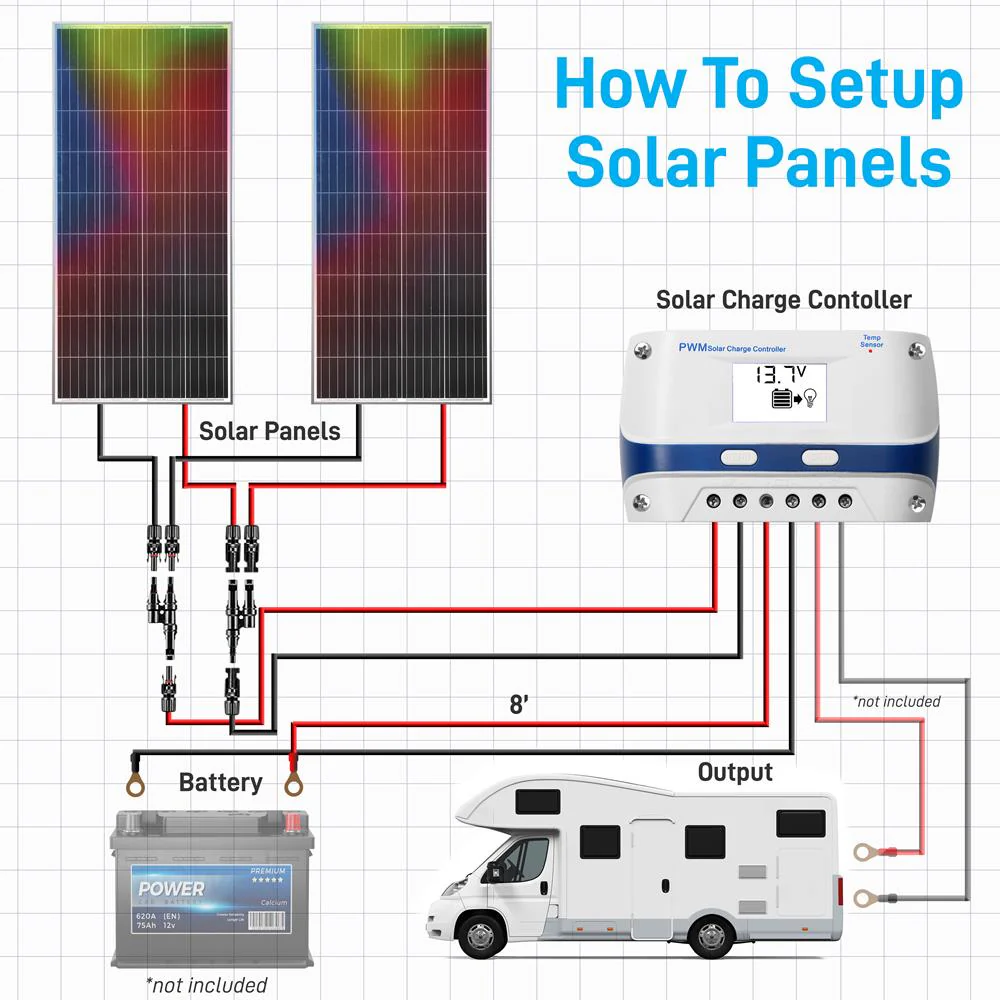

• 20' 10 AWG Solar Extension Cable (Red), Pre-assembled Female Connector (between solar panel to controller)
• 20' 10 AWG Solar Extension Cable (Black), Pre-assembled Male Connector (between solar panel to controller)
• 10' 10 AWG Wire (Red), Pre-assembled Battery Lug (between controller to battery)
• 10' 10 AWG Wire (Black), Pre-assembled Battery Lug (between controller to battery)
• 15A Fuse and Replacement
• (10) Wire Fixers
• A Pair of MC4 Connectors

Technical Specs:

• Power Supply: 200W x 2
• Fuse: 15A
• Short-Circuit Current (Isc):10.2A
• Open-Circuit Voltage (Voc): 24.3V
• Maximum Power Voltage (Vmp): 20.4V
• Maximum System Voltage: 1000VDC
• Tolerance of PMax: ¬±3%
• Series Fuse Rating: 15A
• Maximum Power Current (Imp): 9.8A
• Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
• Cell Type: High-Efficiency Monocrystalline
• Operating Temperature: Controller and Inverter: -20‚ÑÉ-50‚ÑÉ
• Solar Panel: -40‚ÑÉ-85‚ÑÉ
• Controller Voltage: 12V/24V
• Max. Input: < 50V
• USB Output: 5V/2A
• Standby Current: < 12mA
• Type of Connector: MC4 Connector
• Wire/Cable Length: 35.4 -inch
• Product Dimension: 58.7'' x 26.8'' x 1.4'' -inches
