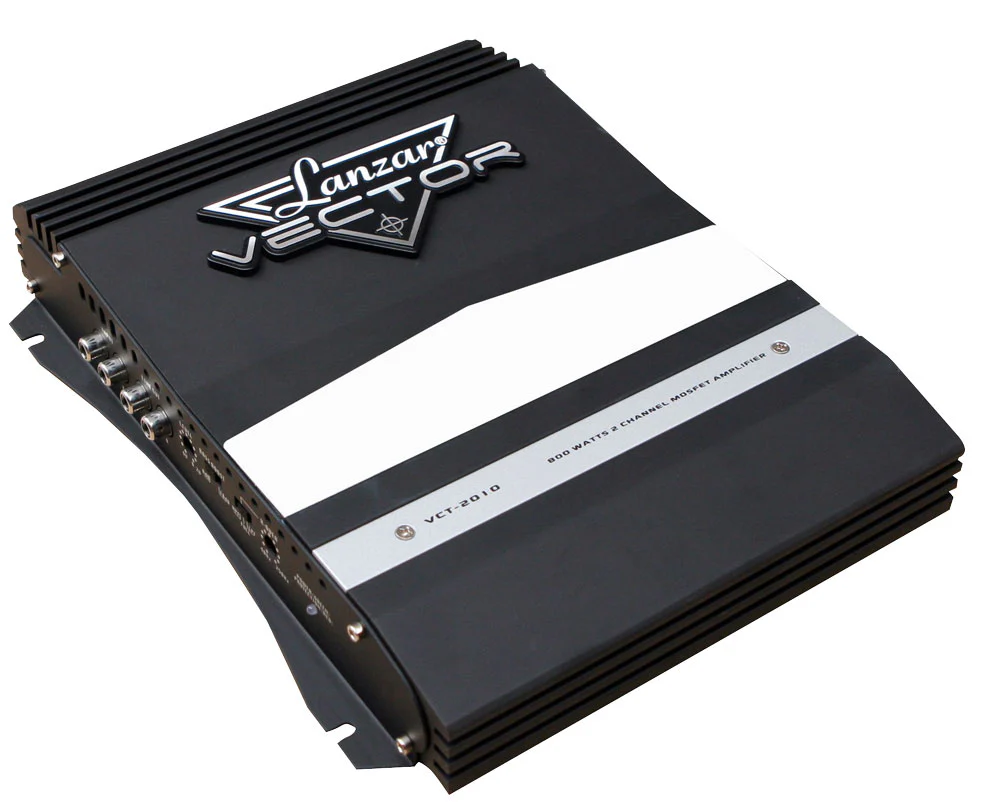

The Lanzar 800 WATTS 2 Channel MOSFET Amplifier by Lanzar is a quality product designed and engineered to give you many years of uncompromised musical service. VECTOR series amplifiers are designed with the latest technology available, which provides headroom for even the most demanding peaks and dynamic ranges found on modern CDs and recordings.

DETAILS

400W x 2 Output at 4 Ohms

800W x 1 Bridged Output at 2 Ohms

2 Ohm Stable

MOSFET Power Supply

Variable Hi-Pass : 40 Hz-250 Hz

Variable Low-Pass : 40 Hz-250 Hz

Variable Input Level (Gain) Control : 6V-200mV

Bass Boost Switch:0-18dB

Thermal / Overload / Short Circuit Protection

Soft Turn On/Off

Power & Protection LED Indicator

Low Level RCA Input : 10K Ohms

Line Level RCA Output

Frequency Response : 15 Hz-30K Hz

Signal to Noise Ratio: >95dB

THD:0.1 %

2x20 Amp Maxi Type Fuse

Slim Size Amplifier Design For Easy Installation

Dimensions: 10.63''W x 1.78''H x 7.48''L

MANUALS & DOWNLOADS

VCT2010 - Manuals
